SR220 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SR220

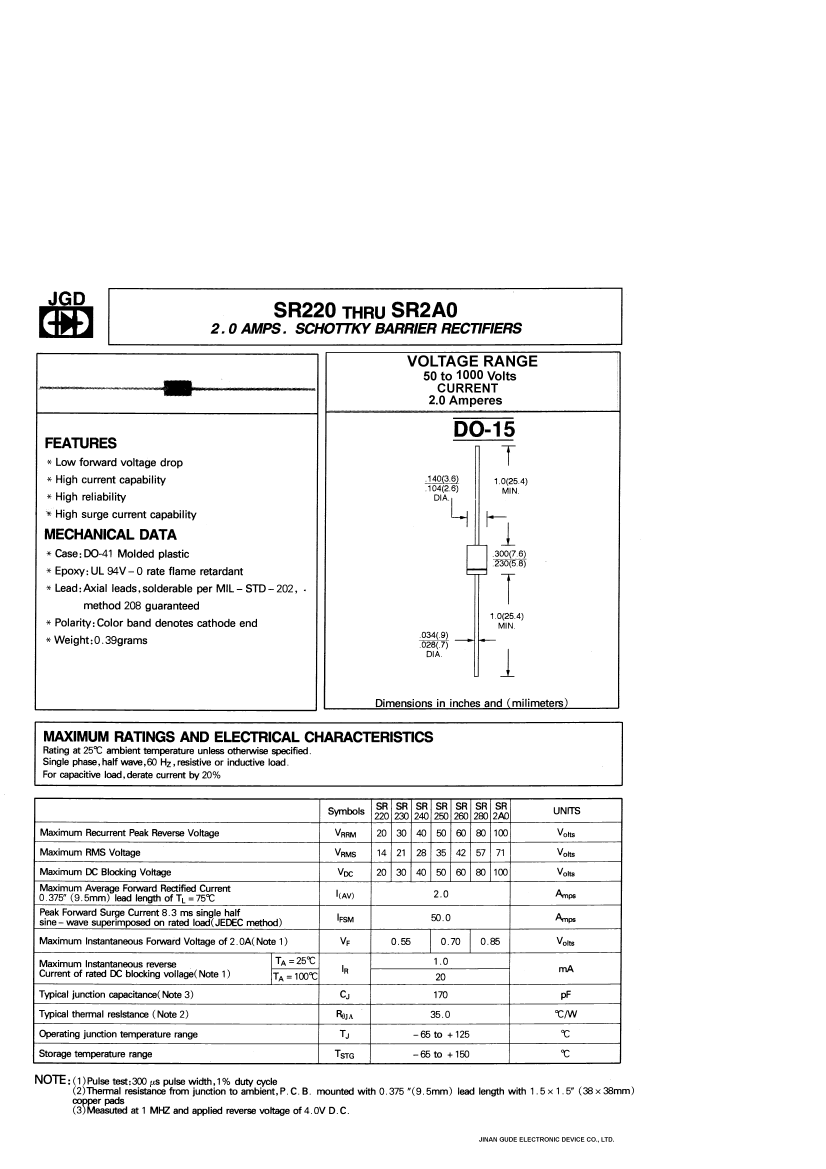

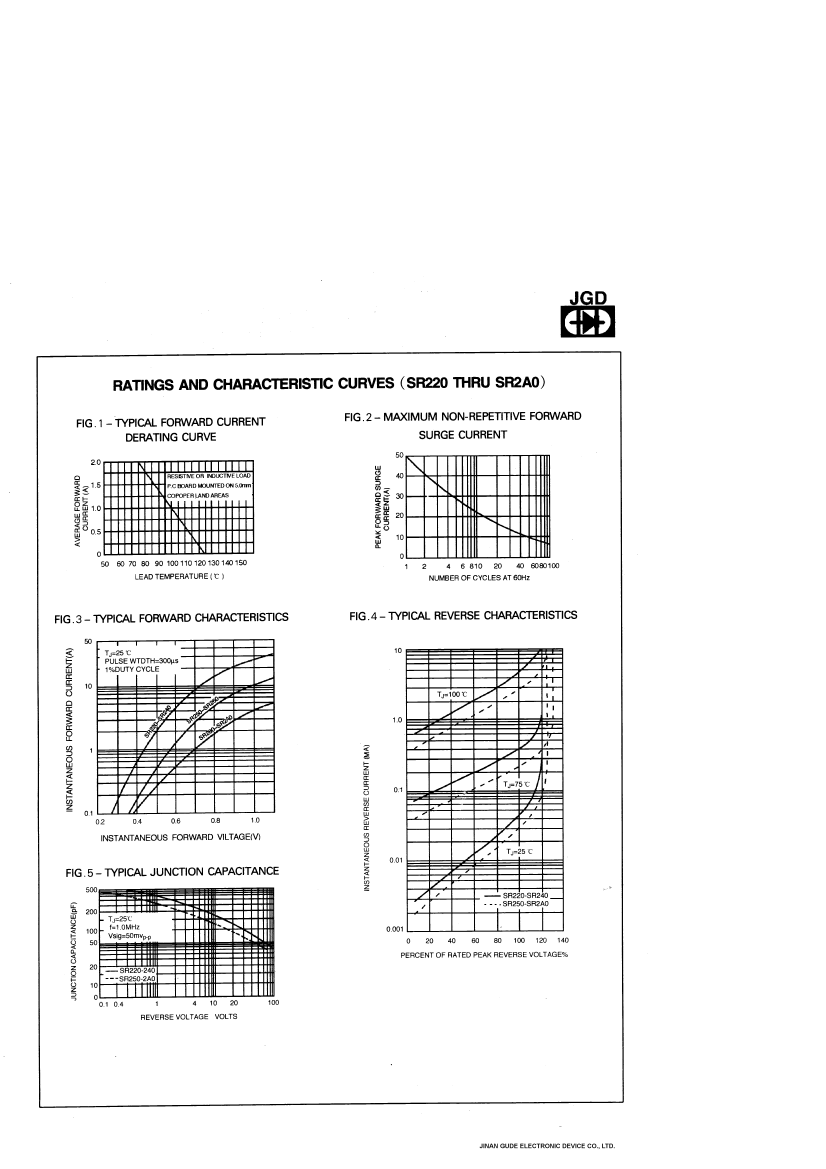

SR220: Description2 A, 20 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size133KB，2 Pages; ManufacturerJGD（Jinan Gude Electronic Device）; Websitehttp://www.jgd.com.cn/

Download Datasheet Parametric Compare View All

SR220 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SR220	-	-	View	Buy Now

SR220 Overview

2 A, 20 V, SILICON, RECTIFIER DIODE, DO-15

SR220 Parametric

Parameter Name	Attribute value
Maker	JGD（Jinan Gude Electronic Device）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	20 V
Maximum reverse current	1000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SR220 Related Products

	SR220	SR2A0	SR280	SR260	SR250	SR240	SR230
Description	2 A, 20 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 80 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 80 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 60 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 50 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 40 V, SILICON, RECTIFIER DIODE, DO-15	2 A, 30 V, SILICON, RECTIFIER DIODE, DO-15
Maker	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V	0.85 V	0.85 V	0.7 V	0.7 V	0.55 V	0.55 V
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	20 V	100 V	80 V	60 V	50 V	40 V	30 V
Maximum reverse current	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA	1000 µA
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
package instruction	-	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	-
