Y16077R32000F129R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y16077R32000F129R

Y16077R32000F129R: DescriptionFixed Resistor, Metal Foil, 0.5W, 7.32ohm, 1% +/-Tol, -.2,.2ppm/Cel, 1625,; CategoryPassive components The resistor; File Size358KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y16077R32000F129R Overview

Fixed Resistor, Metal Foil, 0.5W, 7.32ohm, 1% +/-Tol, -.2,.2ppm/Cel, 1625,

Y16077R32000F129R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
Reach Compliance Code	compliant
structure	Chip
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	1.02 mm
Package length	4.06 mm
Package form	SMT
Package width	6.35 mm
method of packing	TR
Rated power dissipation(P)	0.5 W
resistance	7.32 Ω
Resistor type	FIXED RESISTOR
size code	1625
technology	METAL FOIL
Temperature Coefficient	-.2,.2 ppm/°C
Tolerance	1%

Preview

Download Datasheet

View All

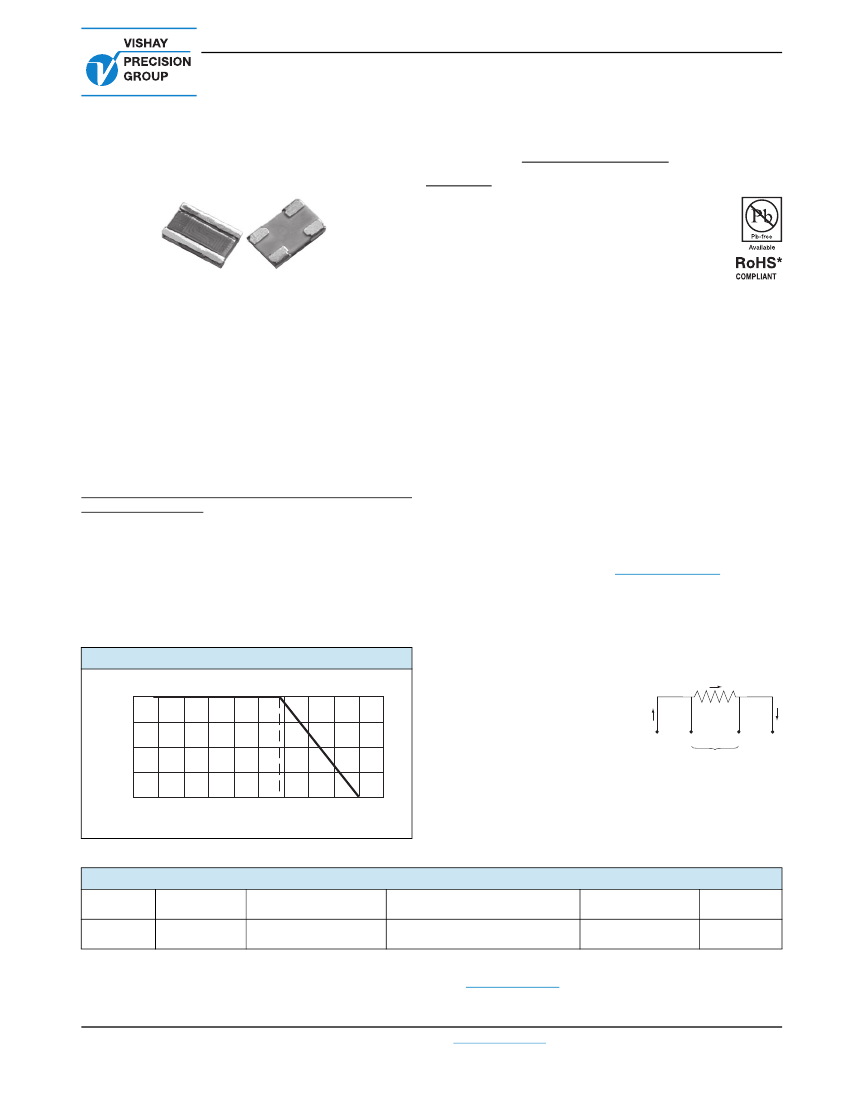

VCS1625Z (Z-Foil)

Vishay Foil Resistors

Ultra High Precision Z-Foil Surface Mount Current

Sensing Chip Resistor with TCR of ± 0.05 ppm/°C and

Power Coefficient of 5 ppm at Rated Power

FEATURES



Temperature coefficient of resistance (TCR):

± 0.05 ppm/°C typical (0 °C to + 60 °C)

± 0.2 ppm/°C typical (- 55 °C to + 125 °C,

+ 25 °C ref.) (see table 1)



Resistance range: 0.3



to 10

(for

higher or

lower values please contact us)



Foil resistors are not restricted to standard values, we can

supply specific “as required” values at no extra cost or

delivery (e.g. 1.234



vs. 1

)



Tolerance: to ± 0.2 %



Power coefficient “R due to self heating”: 5 ppm at rated

power



Load life stability: 0.02 % at 70 °C, 2000 h at rated power



Electrostatic discharge (ESD) up to 25 000 V



Short time overload < 0.005 %



Power rating: 0.5 W at + 70 °C (figure 1)



Non inductive, non capacitive design



Rise time: 1 ns effectively no ringing



Current rating: 5 A maximum



Current noise: < - 40 dB



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Prototype samples available from 72 h. For more

information, please contact

foil@vishaypg.com



For better performances please contact us

INTRODUCTION

The Z-foil technology provides a significant reduction of the

resistive component’s sensitivity to ambient temperature

variations (TCR) and applied power changes (PCR).

Designers can now guarantee a high degree of stability and

accuracy in fixed-resistor applications using solutions

based on Vishay‘s revolutionary Z-foil technology.

Model VCS1625Z is a surface mount chip resistor designed

with 4 pads for Kelvin connection. Utilizing Vishay’s Bulk

Metal

Z-foil as the resistance element, it provides

performance capabilities far greater than other resistor

technologies can supply in a product of comparable size.

0.05 ppm/°C absolute TCR removes errors due to

temperature gradients.

This small device dissipates heat almost entirely through the

pads so surface mount users are encouraged to be generous

with the board’s pads and traces.

Our application engineering department is available to

advise and to make recommendations. For non-standard

technical requirements and special applications, please

FIGURE 1 - POWER DERATING CURVE

Percent of Rated Power

- 55 °C

+ 70 °C

100

- 75

- 50

- 25

+ 25

+ 50

+ 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

TABLE 1 - SPECIFICATIONS

(2)

MODEL

NUMBER

RESISTANCE

RANGE

> 2.0



to 10



0.3



to 2.0



RESISTANCE

TOLERANCE

TYPICAL TCR and MAX. SPREAD

(- 55 °C to + 125 °C, + 25 °C)

± 0.2 ± 2.8 ppm/°C

VCS1625Z

± 0.2 %, ± 0.5 %; ± 1.0 %

± 0.5 %; ± 1.0 %

Notes

(1)

Whichever is lower

(2)

Tighter performances are available. Please contact application engineering

foil@vishaypg.com

* Pb containing materials are not RoHS compliant, exemptions may apply

Document Number: 63094

Revision: 23-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com

TERMINATIONS



Two lead (Pb)-free options are available:

gold plated or tin plated



Tin/lead plated

APPLICATIONS



Military



Medical



Automatic test equipment (ATE)



Airborne (in heads-up display

systems)



High precision instrumentation



Electron beam recording equipment



Electron microscopes



Current sensing applications



Forced balance electronic scales



Applications that require superior frequency stability

POWER RATING

at + 70 °C

(1)

0.5 W on FR4 PCB

MAXIMUM

CURRENT

(1)

Legal Disclaimer Notice

Vishay Precision Group

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, “Vishay Precision Group”), disclaim any and all liability for any errors, inaccuracies or

incompleteness contained herein or in any other disclosure relating to any product.

The product specifications do not expand or otherwise modify Vishay Precision Group’s terms and conditions of

purchase, including but not limited to, the warranty expressed therein.

Vishay Precision Group makes no warranty, representation or guarantee other than as set forth in the terms

and conditions of purchase.

To the maximum extent permitted by applicable law, Vishay Precision Group

disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability,

including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications

and performance may vary over time. Statements regarding the suitability of products for certain types of

applications are based on Vishay Precision Group’s knowledge of typical requirements that are often placed on

Vishay Precision Group products. It is the customer’s responsibility to validate that a particular product with the

properties described in the product specification is suitable for use in a particular application.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by

any conduct of Vishay Precision Group.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling Vishay Precision Group products not expressly indicated for use

in such applications do so entirely at their own risk and agree to fully indemnify Vishay Precision Group for any

damages arising or resulting from such use or sale. Please contact authorized Vishay Precision Group personnel

to obtain written terms and conditions regarding products designed for such applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 27-Apr-11

www.vishaypg.com
