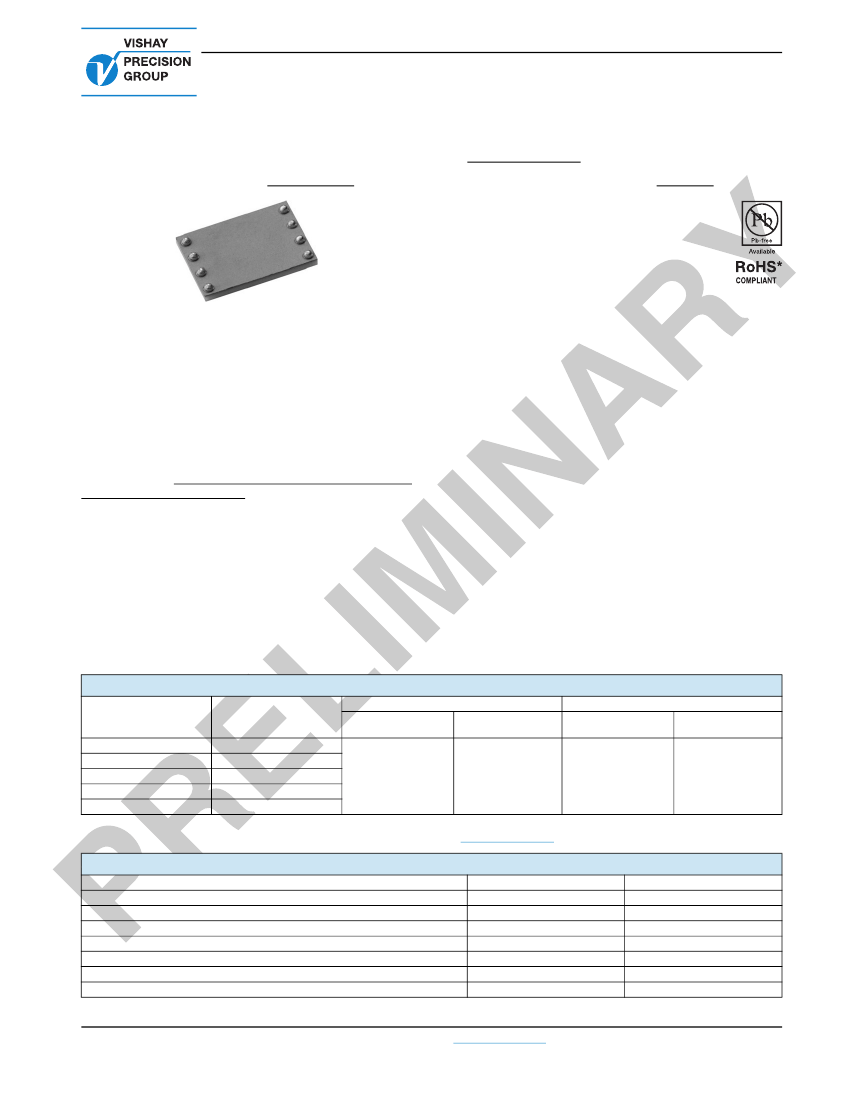

VFB2028N
Vishay Foil Resistors
Ultra High Precision Z-Foil BGA Surface Mount Resistor 4R Network,
Temperature Coefficient Tracking 0.1 ppm/°C, Load Life Ratio
Stability to ± 0.01 % (100 ppm), ESD Immunity to 25 kV
FEATURES
Temperature coefficient of resistance (TCR):
Absolute: ± 0.05 ppm/°C typical (0 °C to + 60 °C)
± 0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C
ref.)
Tracking: 0.1 ppm/°C typical
Power coefficient tracking “R due to self heating”: 5 ppm
at rated power
Power rating: 0.2 W per resistor at 70 °C
Resistance tolerance match: 0.01 %
Ratio stability: 0.01 % (0.2 W at 70 °C, 2000 h)
Large variety of resistance ratios: 100
to 30 k
Electrostatic discharge (ESD) up to 25 000 V
Short time overload
0.01 % (100 ppm)
Non inductive, non capacitive design
Rise time: 1 ns effectively no ringing
Thermal stabilization < 1 s
Current noise: < - 40 dB
Voltage coefficient: < 0.1 ppm/V
Non inductive: < 0.08 µH
Non hot spot design
Terminal (solder ball) available: lead (Pb)-free
tin/lead alloy
Compliant to RoHS directive 2002/95/EC
Maximum working voltage for each element: (P x R)
1/2
Weight: 74 mg
For better performances please contact us
INTRODUCTION
Bulk Metal
®
Z-foil technology out-performs all other resistor
technologies available today for applications that require
ultra-high precision and ultra-high stability. The Z-foil
technology provides a significant reduction of the resistive
element’s sensitivity to ambient temperature variations
(TCR) and to self heating when power is applied (power
coefficient).
Model VFB2028N offers low TCR (both absolute and
tracking), low PCR tracking, excellent load life stability, tight
tolerance, excellent ratio stability, and low current noise, all
in one package. 0.05 ppm/°C absolute TCR removes errors
due to temperature gradients.
The VFB2028N ball grid array (BGA) surface mount
4-resistor network provides tight tolerance matching and
TCR tracking between 4 resistors simultaneously etched on
one piece of foil on a common substrate. The electrical
specifications of this integrated construction offers improved
performances and better real estate utilization over discrete
resistors and matched pairs.
Our application engineering department is available to
advise and make recommendations. For non-standard
technical requirements and special applications, please
contact us.
TABLE 1 - POPULAR RESISTANCE VALUES/RATIO AND TCR CHARACTERISTICS
POPULAR VALUES
AVAILABLE
(1)
(R1/R2/R3/R4)
10K/10K/10K/10K
15K/15K/15K/15K
20K/20K/20K/20K
25K/25K/25K/25K
30K/30K/30K/30K
RESISTANCE
VALUE CODE
V0008
V0355
V0300
V0311
V0356
TCR MAX. (MIL RANGE)
ABSOLUTE
TRACKING
TOLERANCE
ABSOLUTE
MATCH
(R1/R2 and R3/R2)
2.0 ppm/°C
0.5 ppm/°C
0.02 %
0.01 %
Note
(1)
For other values and ratios, please contact sales engineering department:
foil@vishaypg.com
TABLE 2 - TYPICAL PERFORMANCE SPECIFICATIONS PER MIL-PRF-55342
TEST
Thermal shock, 5 x (- 65 °C to + 150 °C)
Low temperature operation, - 65 °C at P
nom.
45 min
Short time overload, 6.25 x P
nom.
x 5 s
High temperature exposure, 100 h at + 150 °C
Resistance to soldering heat per MIL-PRF-55342
Moisture resistance MIL-STD-202, method 106 without load
Load life (ratio stability), + 70 °C for 2000 h
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 63157
Revision: 29-Mar-10
For any questions, contact:
foil@vishaypg.com
www.foilresistors.com
1
R
0.01 % (100 ppm)
0.01 % (100 ppm)
0.01 % (100 ppm)
0.01 % (100 ppm)
0.01 % (100 ppm)
0.05 % (500 ppm)
0.01 % (100 ppm)
Ratio
0.01 % (100 ppm)
0.005 % (50 ppm)
0.01 % (100 ppm)
0.01 % (100 ppm)
0.01 % (100 ppm)
0.02 % (200 ppm)
0.01 % (100 ppm)
