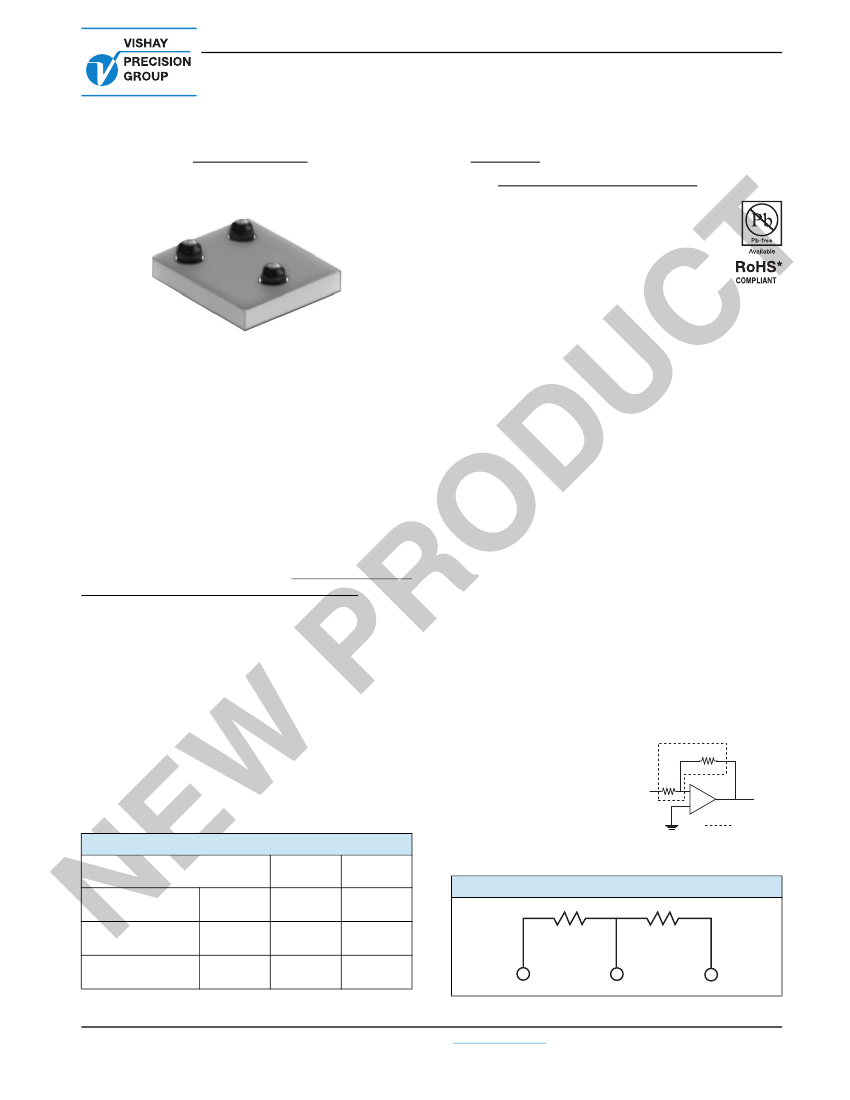

VFB1012D (Z-Foil)

Vishay Foil Resistors

Ultra High Precision Z-Foil BGA Surface Mount Voltage Divider

with 0.1 ppm/°C TCR Tracking, 0.01 % Tolerance Match

and Load Life Stability Ratio to ± 0.01 % (100 ppm)

FEATURES



Temperature coefficient of resistance (TCR):

absolute:

± 0.05 ppm/°C typical (0 °C to + 60 °C)

± 0.2 ppm/°C typical (- 55 °C to + 125 °C,

+ 25 °C ref.)

Tracking: 0.1 ppm/°C typical



Resistance range: 1K to 10K



Foil resistors are not restricted to standard values/ ratios,

we can supply specific “as required” values/ratios at no

extra cost or delivery (e.g 2K234/5K456)



Power coefficient tracking “R due to self heating”: 5 ppm

at rated power



Power rating: entire package: 0.2 W at 70 °C, divided

between the two resistors proportionally to their value



Resistance tolerance match: 0.01 %



Load life stability ratio: 0.01 % (0.2 W at 70 °C, 2000 h)



Large variety of resistance ratios: 1K to 10K



Electrostatic discharge (ESD) up to 25 000 V



Short time overload



0.01 % (100 ppm)



Non inductive, non capacitive design



Rise time: 1 ns effectively no ringing



Current noise: < - 40 dB



Thermal stabilization < 1 s



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Terminal (solder ball) available: lead (Pb)-free,

tin/lead alloy



Compliant to RoHS directive 2002/95/EC



Maximum working voltage for each element: 32 V



For better performances please contact us

INTRODUCTION

Bulk Metal

Z-foil technology out-performs all other resistor

technologies available today for applications that require

ultra-high precision and ultra-high stability. The Z-foil

technology provides a significant reduction of the resistive

element’s sensitivity to ambient temperature variations

(TCR) and to self heating when power is applied (power

coefficient).

Model VFB1012D offers low TCR (both absolute and

tracking), low PCR (both absolute and tracking), excellent

load life stability, tight tolerance, excellent ratio stability, and

low current noise, all in one package. 0.05 ppm/°C absolute

TCR removes errors due to temperature gradients.

The VFB1012D ball grid array (BGA) surface mount divider

provides tight tolerance matching and TCR tracking between

2 resistors simultaneously etched on one piece of foil on a

common substrate. The electrical specifications of this

integrated construction offers improved performances and

better real estate utilization over discrete resistors and

matched pairs.

Our application engineering department is available to

advise and make recommendations. For non-standard

technical requirements and special applications, please

APPLICATIONS



Instrumentation amplifiers

Bridge networks

Differential amplifiers

Ratio arms in bridge circuits

Medical and test equipment

Military

Airborne etc.

out

VFB1012D

TABLE 1 - RANGE OF RESISTANCES

PARAMETER

Total resistance

Individual resistor

Ratio

+ R

or R

FROM

1/10

FIGURE 1 - SCHEMATIC

20K

10K

1/1

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 63122

Revision: 25-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com

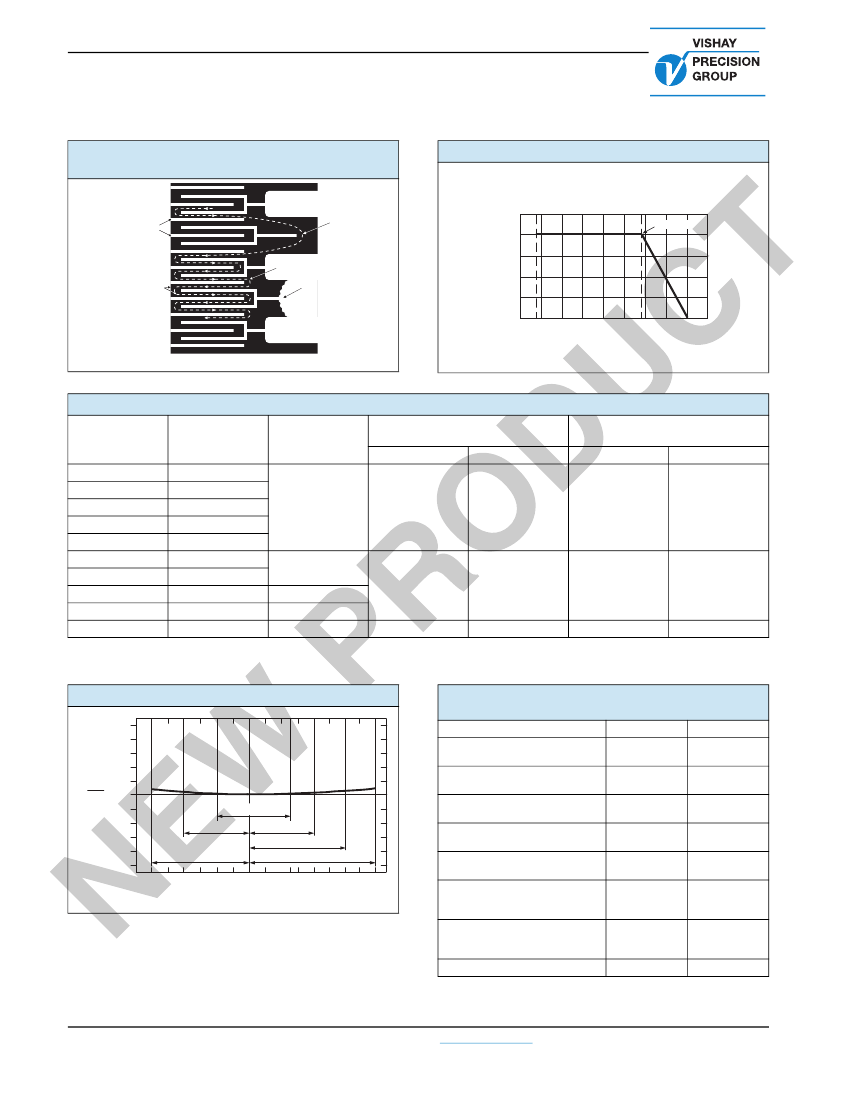

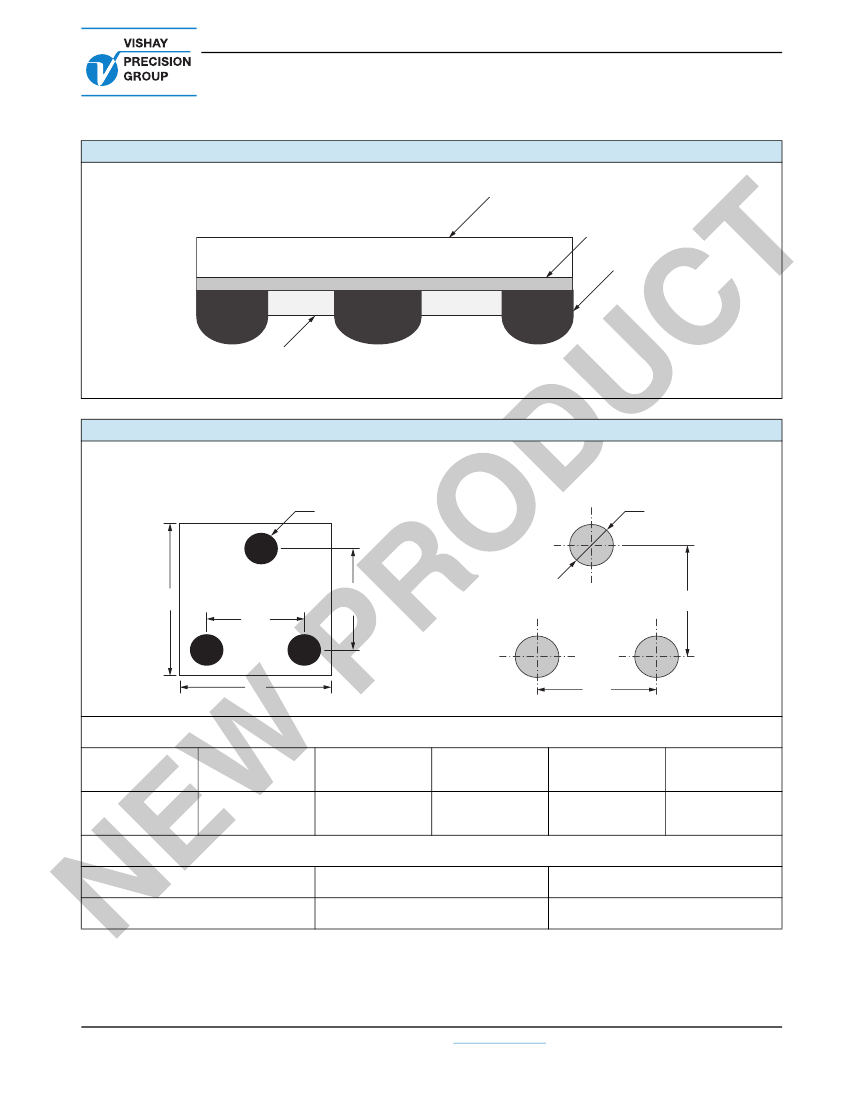

Legal Disclaimer Notice
