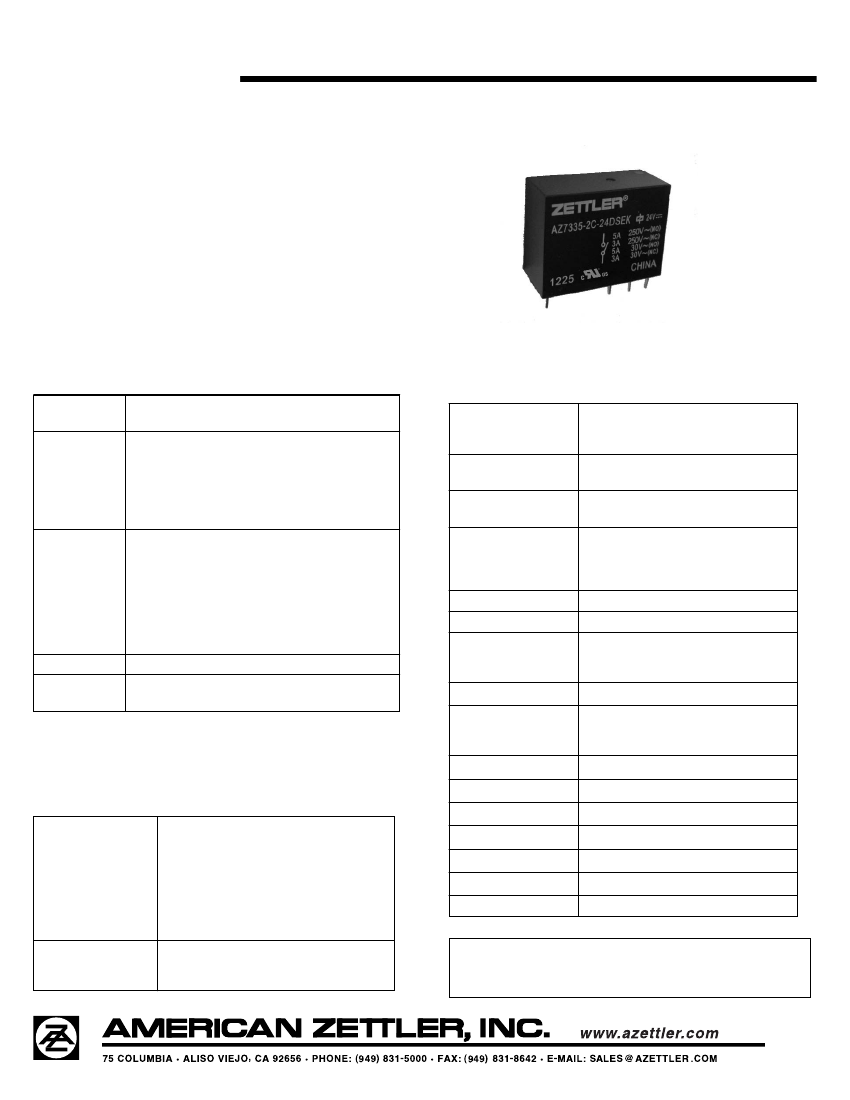

AZ7335
DPDT MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
Dielectric strength 5000 Vrms
Low cost
Epoxy sealed version available
8 Amp switching — double pole contacts
Isolation spacing greater than 8mm
Class F wire type available
UL, CUR E44211
CONTACTS
Arrangement
Ratings
DPST (2 Form A)
DPDT (2 Form C)
Resistive load:
Max. switched power: 240 W or 2000 VA
Max. switched current: 8 A
Max. switched voltage: 30* VDC or 250 VAC
*
Note: If switching voltage is greater than 30 VDC, special
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (max)
Release Time (max)
Minimum operations
1 x 10
7
1 x 10
5
at 5 A 250 VAC Res.
15 ms at nominal coil voltage (standard)
20 ms at nominal coil voltage (sensitive)
8 ms at nominal coil voltage
(with no coil suppression)
precautions must be taken. Please contact the factory.
Rated Load
UL, CUR
Normally Open Contacts (N.O.)
8 A at 250 VAC, Resistive,100k cycles
8 A at 30 VDC, Resistive 100k cycles
Normally Closed Contacts (N.C.)
4 A at 250 VAC, Resistive, 100k cycles
4 A at 30 VDC, Resistive, 100k cycles
Material
Resistance
Silver tin oxide
100 milliohms max.
(6 V, 1 A voltage drop method)
Dielectric Strength
5000 VAC contact to coil
(at sea level for 1 min.)
1000 VAC between open contacts
2500 VAC between contact sets
10,000 V surge contact to coil
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Mechanical
Operational
Enclosure
Terminals
100G
10 G
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
13 grams
1000 megohms min. at 500 VDC
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
0.059" DA at 10–55 Hz
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
353 mW(Standard), 300 mW(Sensitive)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
1.2 W at 20°C (68°F) ambient (Standard)
0.9 W at 20°C (68°F) ambient (Sensitive)
40°C (104°F) at nominal coil voltage
Max. 105°C (221°F)
Max. Immersion Time
Weight
NOTES
1. All values at 23°C (73.4°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/12/14
AZ7335
RELAY ORDERING DATA
COIL SPECIFICATIONS (STANDARD)
Nominal Coil
VDC
3
5
6
9
12
18
24
48
Must Operate
VDC
2.1
3.5
4.2
6.3
8.4
12.6
16.8
33.6
Max. Continuous
VDC
3.9
6.5
7.8
11.7
15.6
23.4
31.2
62.4
Coil
Resistance
13 ±10%
36
48.5
115
200
450
820
3300
±10%
±10%
±10%
±10%
±10%
±10%
±10%
ORDER NUMBER*
Form A
(DPST)
AZ7335–2A–3DK
AZ7335–2A–5DK
AZ7335–2A–6DK
AZ7335–2A–9DK
AZ7335–2A–12DK
AZ7335–2A–18DK
AZ7335–2A–24DK
AZ7335–2A–48DK
Form C
(DPDT)
AZ7335–2C–3DK
AZ7335–2C–5DK
AZ7335–2C–6DK
AZ7335–2C–9DK
AZ7335–2C–12DK
AZ7335–2C–18DK
AZ7335–2C–24DK
AZ7335–2C–48DK
RELAY ORDERING DATA
COIL SPECIFICATIONS (SENSITIVE)
Nominal Coil
VDC
3
5
6
9
12
18
24
48
Must Operate
VDC
2.25
3.75
4.50
6.75
9.00
13.50
18.00
36.00
Max. Continuous
VDC
3.9
6.5
7.8
11.7
15.6
23.4
31.2
62.4
Coil
Resistance
17 ±10%
48.5
68
155
270
600
1100
4400
±10%
±10%
±10%
±10%
±10%
±10%
±10%
ORDER NUMBER*
Form A
(DPST)
AZ7335–2A–3DSK
AZ7335–2A–5DSK
AZ7335–2A–6DSK
AZ7335–2A–9DSK
AZ7335–2A–12DSK
AZ7335–2A–18DSK
AZ7335–2A–24DSK
AZ7335–2A–48DSK
Form C
(DPDT)
AZ7335–2C–3DSK
AZ7335–2C–5DSK
AZ7335–2C–6DSK
AZ7335–2C–9DSK
AZ7335–2C–12DSK
AZ7335–2C–18DSK
AZ7335–2C–24DSK
AZ7335–2C–48DSK
*For epoxy seal add “E” after DK or DSK. For class F wire type add suffix “F” to part number.
HARDWARE ORDERING DATA
DESCRIPTION
Socket (5.0 mm)
ORDER NUMBER
ST484–U1
DESCRIPTION
Retainer
ORDER NUMBER
ST482–2
3/12/14
AZ7335

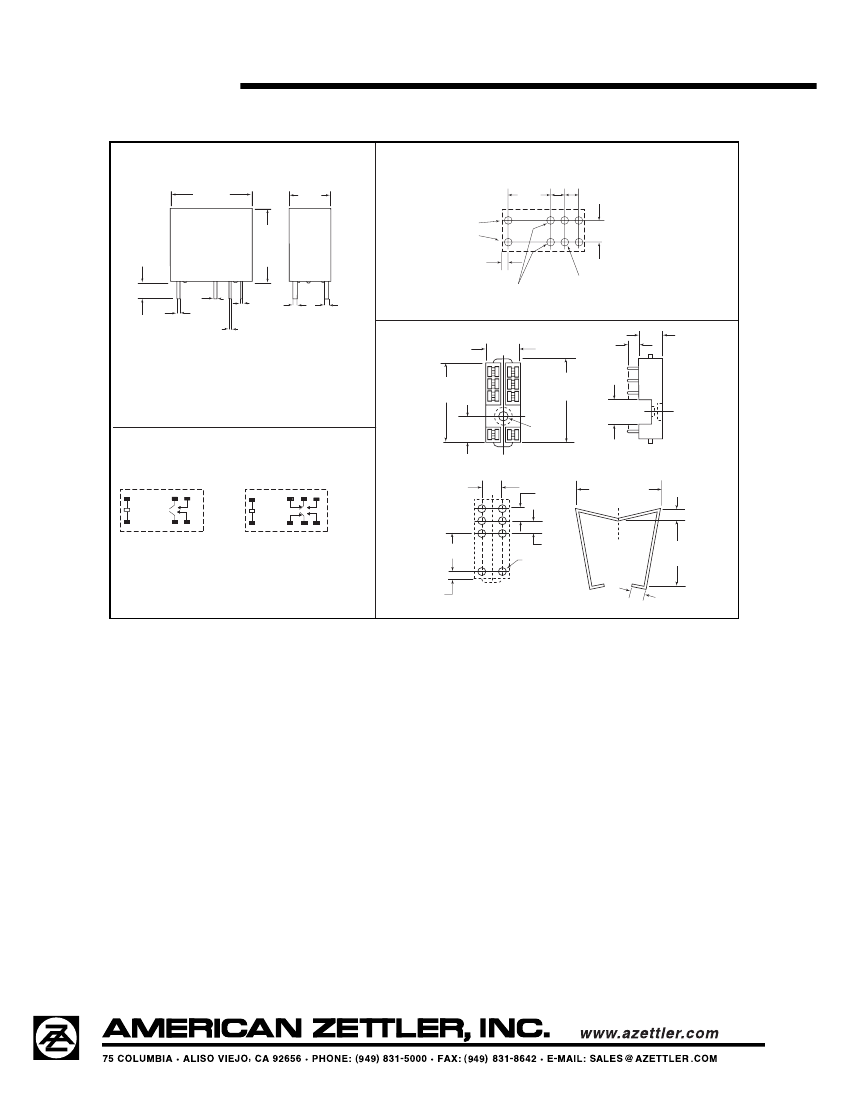

MECHANICAL DATA
&ORM ! AND #
0# "/!2$ ,!9/54
6IEWED TOWARD TERMINALS
$)!
&ORM # ONLY
$)!
PLACES &ORM !
PLACES &ORM #
(!2$7!2%
34
5
-!8
$)!
7)2).' $)!'2!-
&ORM !
2ETAINING #LIP
34
&ORM #
6IEWED TOWARD TERMINALS
$)!
6IEWED TOWARD TERMINALS
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010" unless specified.
1/27/14
