TSM9634F
A 1µA, SOT23 Precision Current-Sense Amplifier
FEATURES
♦
Second-source for MAX9634F
♦
Ultra-Low Supply Current: 1μA
♦
Wide Input Common Mode Range: +1.6V to +28V
♦
Low Input Offset Voltage: 250µV (max)
♦
Low Gain Error: <0.5% (max)
♦
Voltage Output
♦
Gain Option Available:
TSM9634F: Gain = 50V/V
♦
5-Pin SOT23 Packaging
DESCRIPTION
The
voltage-output
TSM9634F
current-sense
amplifier are electrically and form-factor identical to
the MAX9634F current-sense amplifier. Consuming a
very low 1μA supply current, the TSM9634F high-side
current-sense amplifiers exhibit a 250-µV (max) V
OS
and a 0.5% (max) gain error, both specifications
optimized for any precision current measurement. For
all high-side current-sensing applications, the
TSM9634F features a wide input common-mode
voltage range from 1.6V to 28V.
The SOT23 package makes the TSM9634F an ideal
choice for pcb-area-critical, low-current, high-
accuracy current-sense applications in all battery-
powered portable instruments.
All TSM9634Fs are specified for operation over the
-40°C to +85°C extended temperature range.
APPLICATIONS
Notebook Computers
Power Management Systems
Portable/Battery-Powered Systems
PDAs
Smart Phones

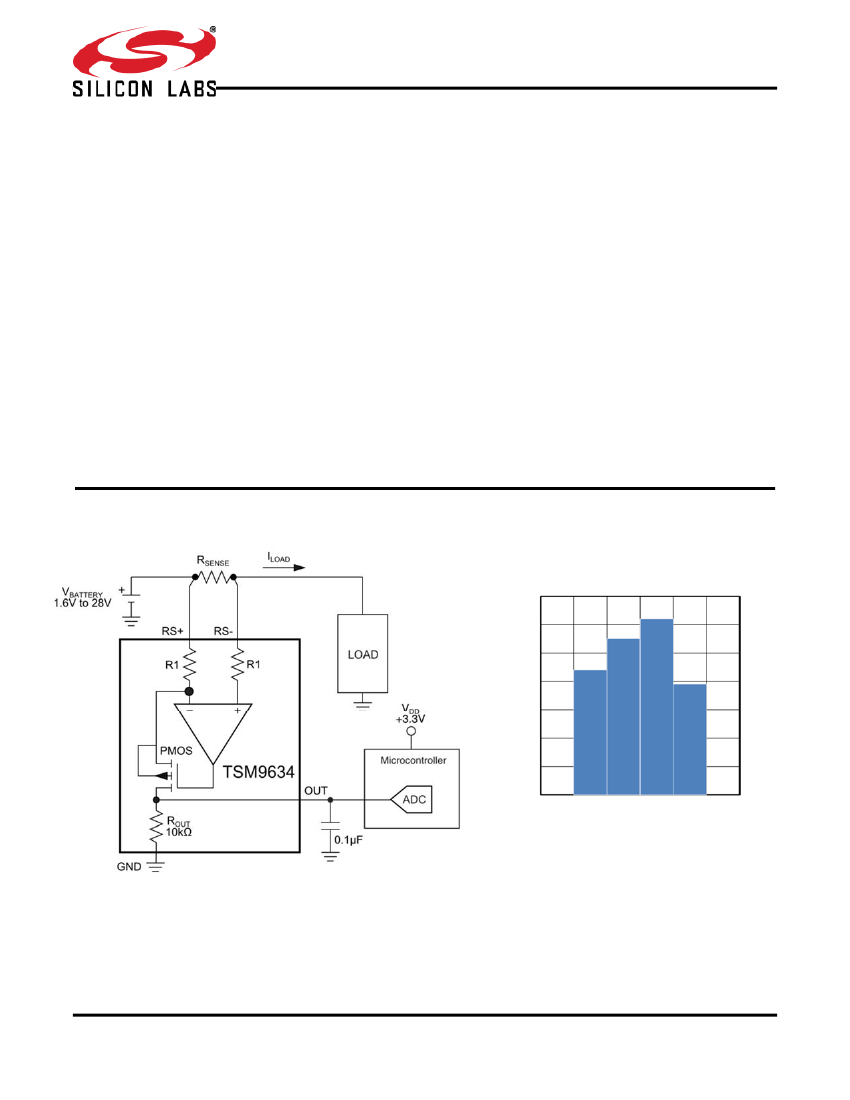

TYPICAL APPLICATION CIRCUIT
Input Offset Voltage Histogram
35
30
PERCENT OF UNITS - %
25
15
15
10
5
0
0
10
20
30
40
50
INPUT OFFSET VOLTAGE - µV
Page 1
© 2014 Silicon Laboratories, Inc. All rights reserved.
TSM9634F
ABSOLUTE MAXIMUM RATINGS
RS+, RS- to GND- .............................................-0.3V to +30V
OUT to GND- ......................................................-0.3V to +6V
RS+ to RS- ..................................................................... ±30V
Short-Circuit Duration: OUT to GND .................... Continuous
Continuous Input Current (Any Pin) ............................ ±20mA
Continuous Power Dissipation (T
A
= +70°C)
5-Pin SOT23 (Derate at 3.9mW/°C above +70°C).. 312mW
Operating Temperature Range ...................... -40°C to +85°C
Junction Temperature ................................................ +150°C
Storage Temperature Range ....................... -65°C to +150°C
Lead Temperature (Soldering, 10s) ........................... +300°C
Soldering Temperature (Reflow) ............................ +260°C
Electrical and thermal stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other condition beyond those indicated in the operational sections
of the specifications is not implied. Exposure to any absolute maximum rating conditions for extended periods may affect device reliability and
lifetime.

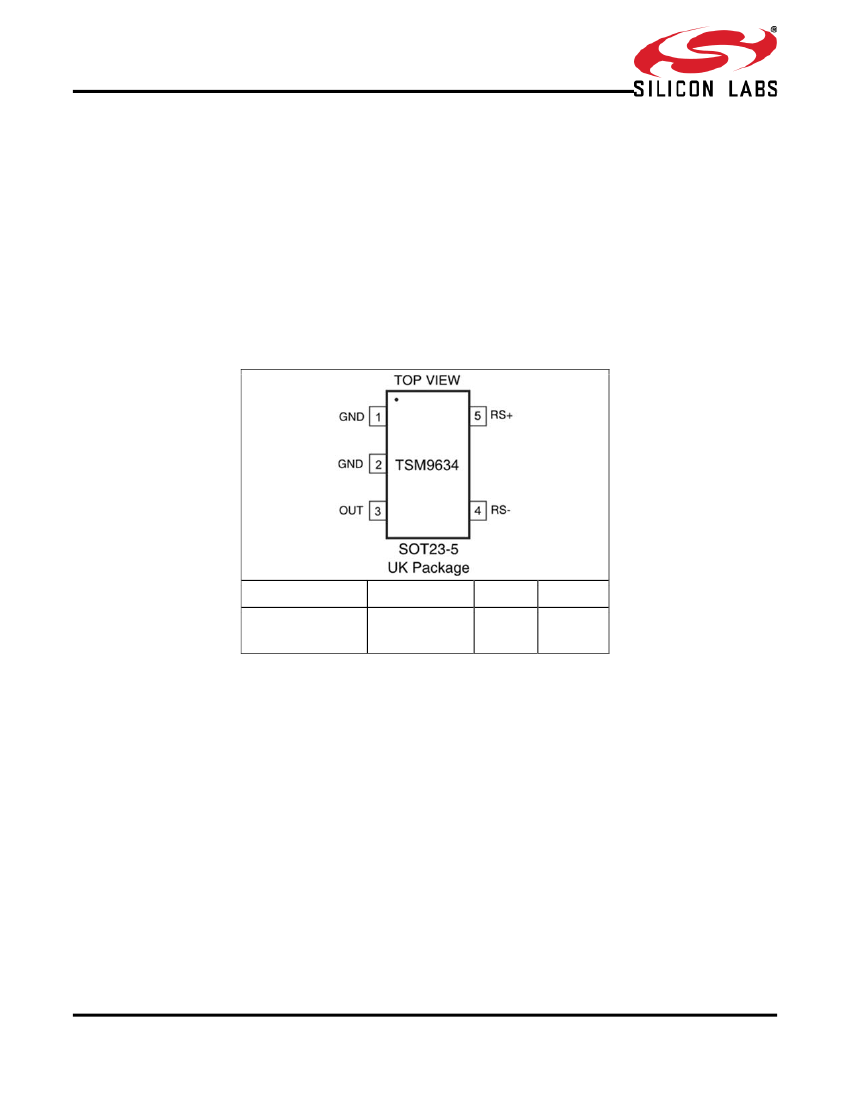

PACKAGE/ORDERING INFORMATION
ORDER NUMBER PART MARKINGCARRIERQUANTITY
TSM9634FEUK+T
TADB
Tape
& Reel
3000
Lead-free Program:
Silicon Labs supplies only lead-free packaging.
Consult Silicon Labs for products specified with wider operating temperature ranges.
Page 2
TSM9634F Rev. 1.0
TSM9634F
ELECTRICAL CHARACTERISTICS
V
RS+
= V
RS-
= 3.6V; V
SENSE
= (V
RS+
- V
RS-
) = 0V; T
A
= -40°C to +85°C, unless otherwise noted. Typical values are at
T
A
= +25°C. See Note 1
PARAMETER
Supply Current (Note 2)
Common-Mode Input Range
Common-Mode Rejection
Ratio
Input Offset Voltage (Note 3)
Gain
Gain Error (Note 4)
Output Resistance
OUT Low Voltage
OUT High Voltage
SYMBOL
I
CC
V
CM
CMRR
V
OS
G
GE
R
OUT
V
OL
V
OH
(Note 5)
Gain = 50
V
OH
= V
RS-
- V
OUT
(Note 6)
T
A
= +25°C
-40°C < T
A
< +85°C
7.0
CONDITIONS
V
RS+
= 5V, T
A
= +25°C
V
RS+
= 5V, -40°C < T
A
< +85°C
V
RS+
= 28V, T
A
= +25°C
V
RS+
= 28V, -40°C < T
A
< +85°C
Guaranteed by CMRR , -40°C < T
A
< +85°C
1.6V < V
RS+
< 28V, -40°C < T
A
< +85°C
T
A
= +25°C
-40°C < T
A
< +85°C
MIN
TYP
0.5
1.1
1.6
94
130
100
50
±0.1
10
3
0.1
250
300
±0.5
±0.6
13.2
15
0.2
MAX
0.85
1.1
1.8
2.5
28
UNITS
μA
V
dB
μV
V/V
%
kΩ
mV
V
Note 1:
All devices are 100% production tested at T
A
= +25°C. All temperature limits are guaranteed by product
characterization.
Note 2:
Extrapolated to V
OUT
= 0. I
CC
is the total current into the RS+ and the RS- pins.
Note 3:
Input offset voltage V
OS
is extrapolated from V
OUT
with V
SENSE
set to 1mV.
Note 4:
Gain error is calculated by applying two values for V
SENSE
and then calculating the error of the actual slope vs. the
ideal transfer characteristic:
For GAIN = 50, the applied V
SENSE
is 10mV and 60mV.
Note 5:
The device is stable for any capacitive load at V
OUT
.
Note 6:
V
OH
is the voltage from V
RS-
to V
OUT
with V
SENSE
= 3.6V/GAIN.
TSM9634F Rev. 1.0
Page 3
TSM9634F

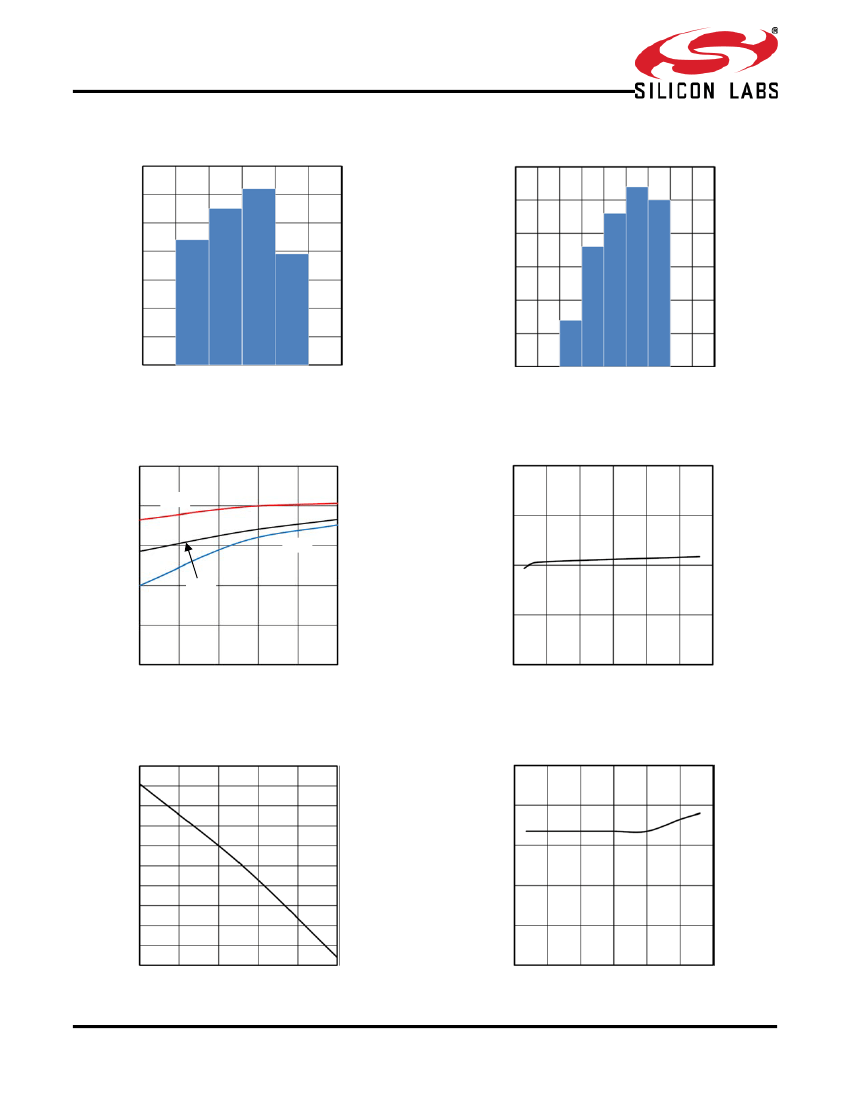

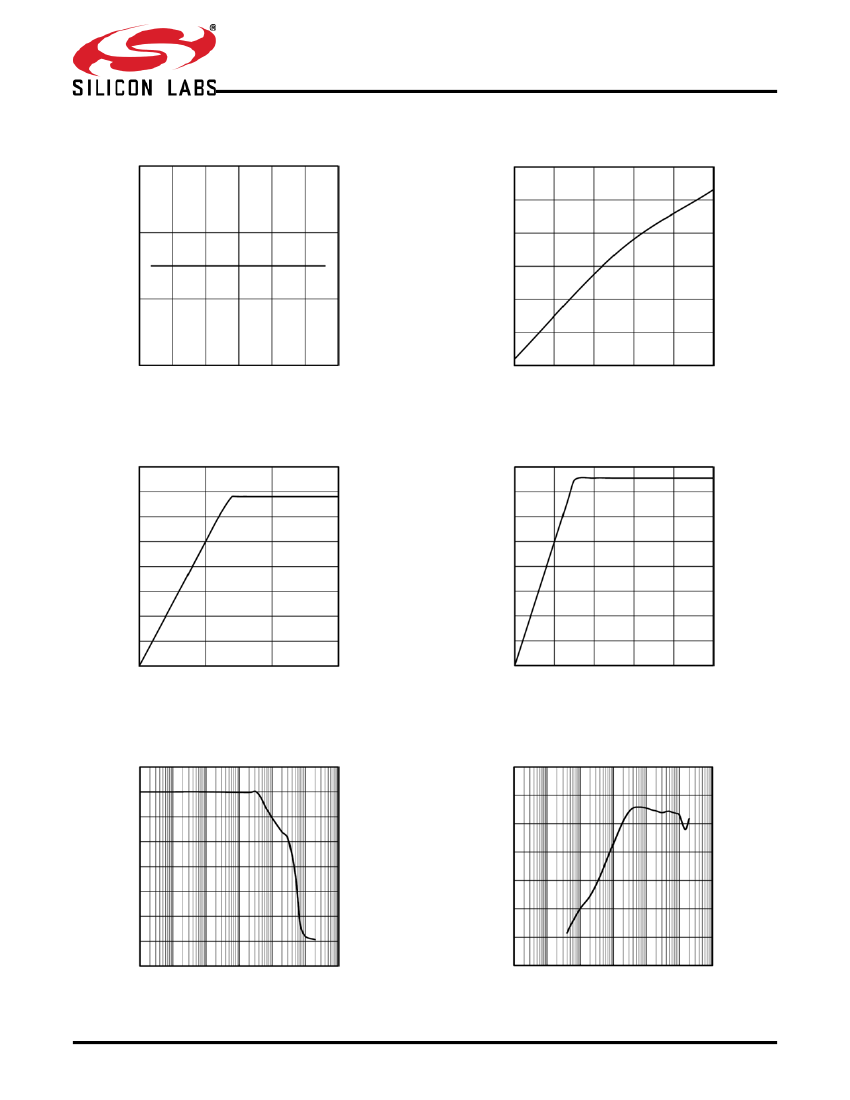

TYPICAL PERFORMANCE CHARACTERISTICS
V
RS+
= V
RS-
= 3.6V; T
A
= +25°C, unless otherwise noted.
Input Offset Voltage Histogram
35
30
PERCENT OF UNITS - %
25
15
15
10
5
0
0
10
20
30
40
50
PERCENT OF UNITS - %
30
25
20
15
10
5
0
-0.4
-0.2
0
0.2
0.4
Gain Error Histogram
INPUT OFFSET VOLTAGE - µV
GAIN ERROR - %
Input Offset Voltage vs Common-Mode Voltage
40
Supply Current vs Temperature
1
28V
INPUT OFFSET VOLTAGE - µV
SUPPLY CURENT - µA
0.8
35
0.6
1.8V
30
0.4
3.6V
25
0.2
0
-40
-15
10
35
60
85
20
0
5
10
15
20
25
30
TEMPERATURE -
°C
Input Offset Voltage vs Temperature
80
INPUT OFFSET VOLTAGE - µV
1
SUPPLY VOLTAGE - Volt
Supply Current vs Common-Mode Voltage
40
SUPPLY CURRENT - µA
-40
-15
35
60
85
60
0.8
0.6
20
0.4
0
0.2
-20
10
0
0
5
10
15
20
25
30
TEMPERATURE -
°C
SUPPLY VOLTAGE - Volt
Page 4
TSM9634F Rev. 1.0
TSM9634F
TYPICAL PERFORMANCE CHARACTERISTICS
V
RS+
= V
RS-
= 3.6V; T
A
= +25°C, unless otherwise noted.
Gain Error vs Common-Mode Voltage
0.3
0.5
0.4
GAIN ERROR - %
0.2
GAIN ERROR - %
0.3
0.2
0.1
0
0
0
5
10
15
20
25
30
SUPPLY VOLTAGE - Volt
V
OUT
vs V
SENSE
@ Supply = 3.6V
4
3.5
3
V
OUT
- V
V
OUT
- V
2.5
2
1.5
1
0.5
0
0
50
100
V
SENSE
- mV
Small-Signal Gain vs Frequency
5
0
SMALL-SIGNAL GAIN -dB
-5
-10
-15
-20
-25
-30
-35
0.001 0.01
COMMON-MODE REJECTION - dB
0
-20
-40
-60
-80
-100
-120
-140
0.001 0.01
150
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
V
SENSE
- mV
Common-Mode Rejection vs Frequency
-0.1
-40
Gain Error vs. Temperature
0.1
-15
10
35
60
85
TEMPERATURE -
°C
V
OUT
vs V
SENSE
@ Supply = 1.6V
0.1
1
10
100
1000
0.1
1
10
100
1000
FREQUENCY - kHz
FREQUENCY - kHz
TSM9634F Rev. 1.0
Page 5
