56502-661-I4N datasheet, PDF - EEWORLD Datasheet

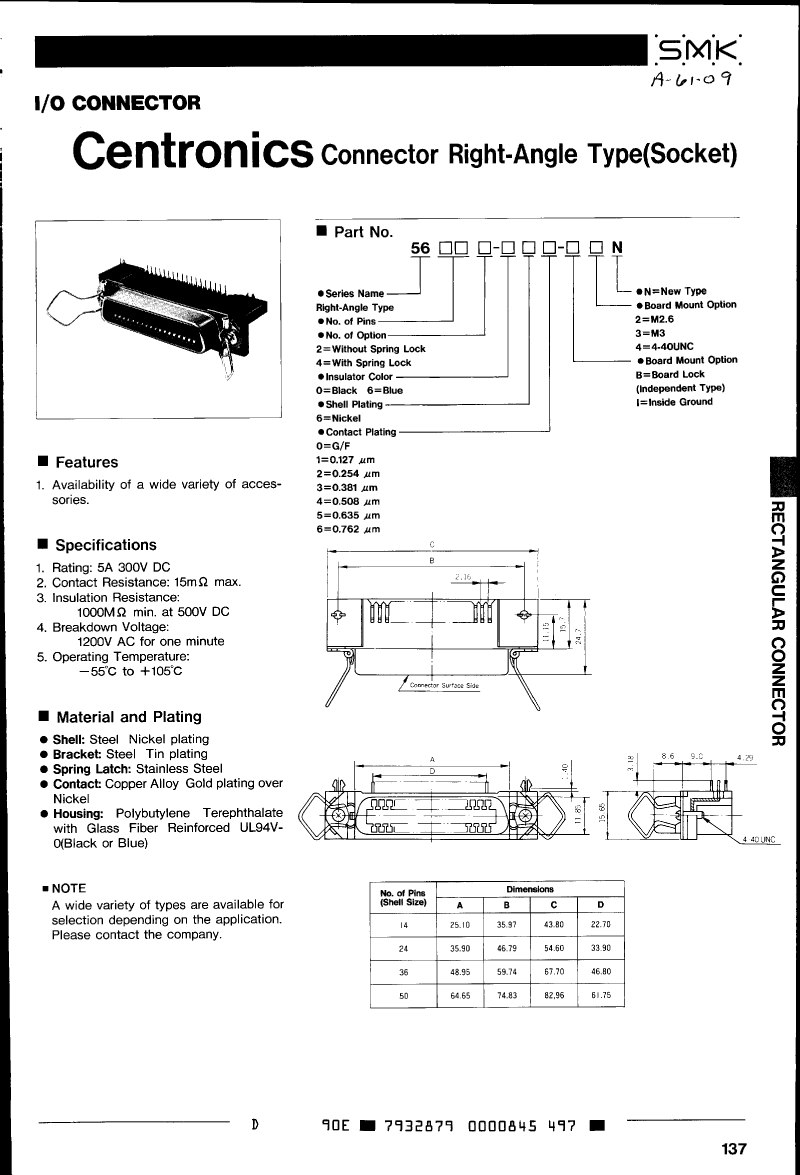

56502-661-I4N: DescriptionD Type Connector, 50 Contact(s), Female, Solder Terminal, Plug,; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

56502-661-I4N Overview

D Type Connector, 50 Contact(s), Female, Solder Terminal, Plug,

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	INSIDE GROUND
body width	0.616 inch
subject depth	0.618 inch
body length	3.266 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	56
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	5u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50
