B061-1822-208-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-1822-208-Z

B061-1822-208-Z: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size211KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-1822-208-Z Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

B061-1822-208-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.498 inch
body length	0.924 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B061
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.124 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

04 thru 80

DEFINITION:

2 - RIGHT ANGLE

NUMBER OF ROWS:

1 - ONE

TWO

Drawn Checked

S.M.

A.M.

S.M.

A.M.

B.S.

S.M.

Appproved

S.M.

HOUSING DIMESIONS:

Height - 8.50mm

Contact Tail - 3.15mm

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: PHOSPHOR BRONZE

CONTACT PLATING: GOLD and/or TIN OVER 50 MICROINCHES

NICKEL SUBPLATE

Rev

Issued

A ROHS COMPLIANT/LEAD FREE

B Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

CONTACT STYLE:

2 - TUNING FORK

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

SMP TECHNOLOGY, INC.

08/25/03

02/14/05

12/15/06

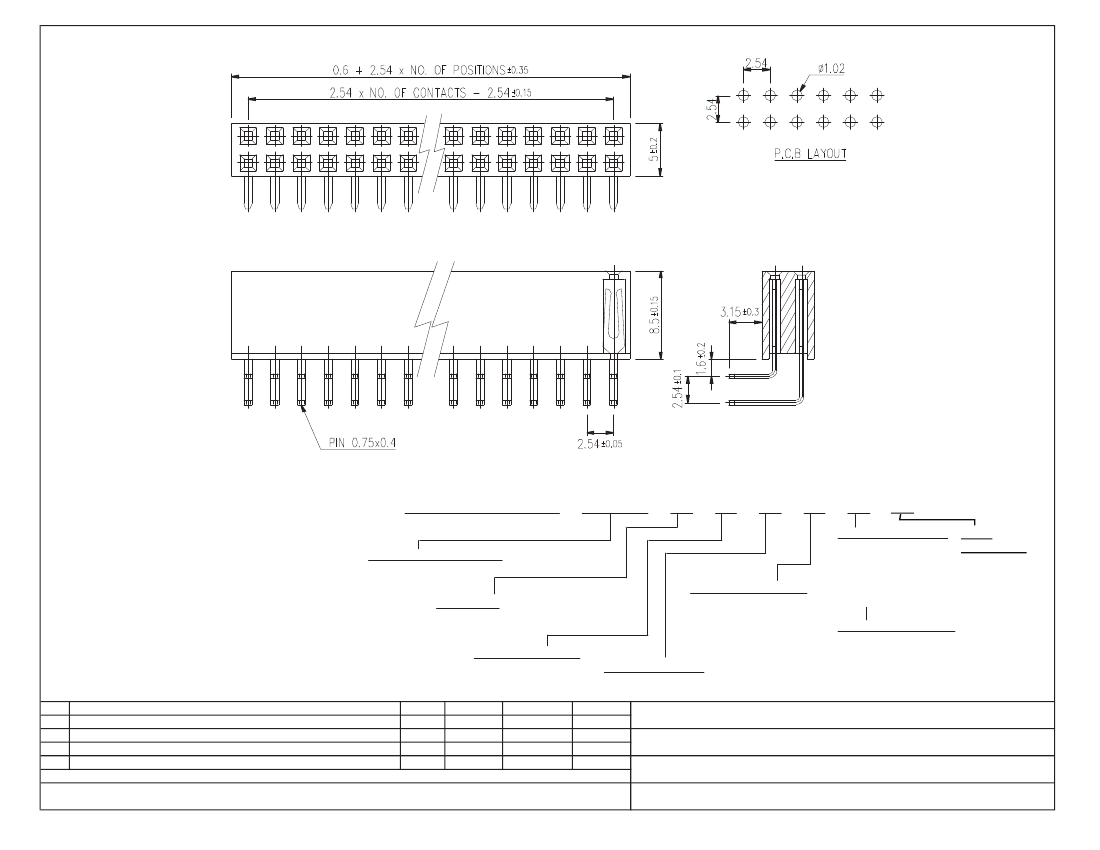

Receptacle Assembly, 2.54mm Pitch, Side Entry, Double Row, Straight

Tuning Fork Contact, 5.7mm Height, 5.00mm Width, Thru Hole

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
