5458-3301 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5458-3301

5458-3301: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Polarized Lck, Plug; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5458-3301 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Polarized Lck, Plug

5458-3301 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.28 inch
subject depth	0.335 inch
body length	1.697 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5458
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

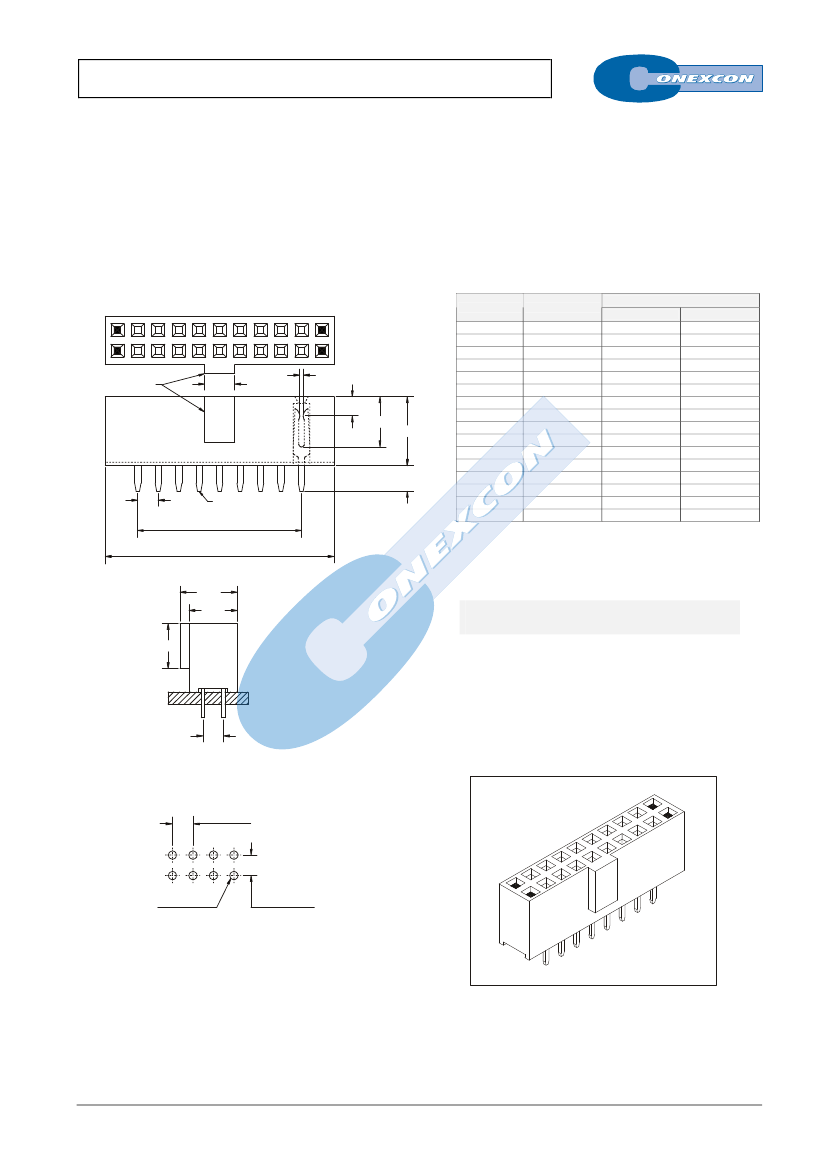

2.54mm DUAL ROW FEMALE HEADER

5458 SERIES.

2.54 x 2.54mm(0.100 X 0.100”). With Polarisation

Features







Available in 6, 8, 10,14,16, 20, 24, 26, 30, 34, 40, 44, 48, 50,

60 and 64 circuits

Insulator Material: P.B.T. UL 94V-0

Contact Material: Phosphor Bronze







Height: 8.50mm

Mates with 5446, 5447 series and 2.54mm dual row pin

headers and 0.64mm square pin header

With polarisation bump

Ordering and Dimensional Information:

Dimensional Information:

Circuit Size

Part Number

5458-T061

5458-T081

5458-T101

5458-T141

5458-T161

5458-T201

5458-T241

5458-T261

5458-T301

5458-T341

5458-T401

5458-T441

5458-T481

5458-T501

5458-T601

5458-T641

Dimensions

5,08(0,200)

7,62(0,300)

10,16(0,400)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27,94(1,100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

53,34 (2.100)

58,42 (2.300)

60,96(2,400)

73,66(2,900)

78,74(3,100)

12,62(0,497)

15,16(0,597)

17,70(0,697)

22,78(0,897)

25,32(0,997)

30,40(1,197)

35,48(1,397)

38,02(1,497)

43,10(1,697)

48,18(1,897)

55,80(2,197)

60,88(2,397)

65,96 (2.597)

68,50(2,697)

81,20(3,197)

86,28(3,397)

Polarisation

Bump

3.70

0.44 +0.03

0.00

1.95

6.20

8.50

3.2

2.54

PIN 0.75 X 0.4

T = Contact Plating

7.10

6.00



2.54

T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

13.

Selective gold flash over 50µ” nickel

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

5.60

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

1.02±0.05

.040±.002

2.54±0.05

.100±.002
