BH1FS-10GCB-L: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BH1FS-10GCB-L Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Receptacle

BH1FS-10GCB-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.354 inch
subject depth	0.362 inch
body length	0.801 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	BH1FS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.185 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	10

Preview

Download Datasheet

View All

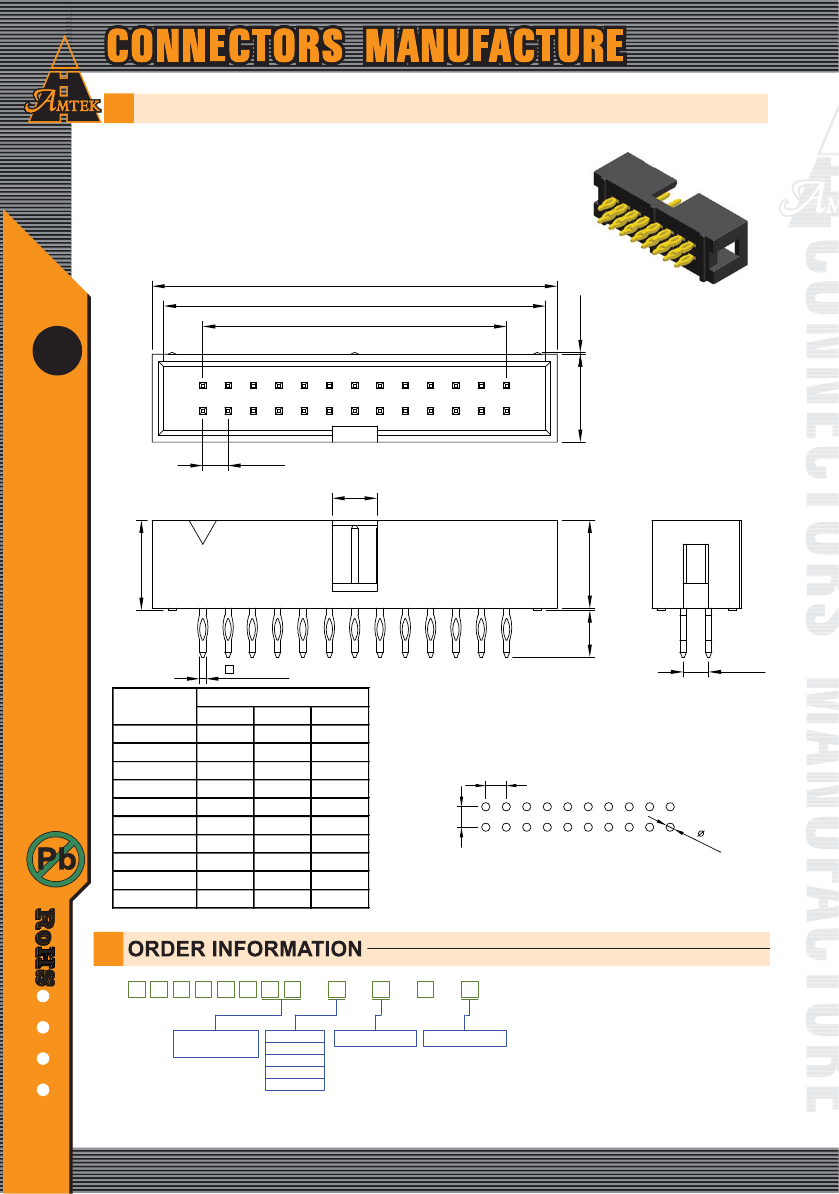

Box Header 2.54mm Press Fit Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Gold Plated

B

ox Header 2.54mm

No. of

Contacts

10

14

16

20

26

34

40

50

60

64

A

20.34

25.48

27.90

33.05

40.68

50.80

58.46

71.10

83.80

89.10

Dimensions

B

C

18.00

10.16

23.18

15.24

25.72

17.78

30.80

22.86

38.42

30.48

48.58

40.64

56.20

48.26

68.90

60.96

81.60

73.66

86.68

78.74

B H 1 F S - X X

No. of Contacts

(10,14,16,20,26,34,

40,50,60,64)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

X

B

B:Black Insulator

-

L

L:RoHS + PBT

Standard Recommended

2-100

www.amtek-co.com.tw
