SATAS-M22SBB-RA-U: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size300KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SATAS-M22SBB-RA-U Overview

Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

SATAS-M22SBB-RA-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.193 inch
subject depth	0.421 inch
body length	1.717 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SATAS
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

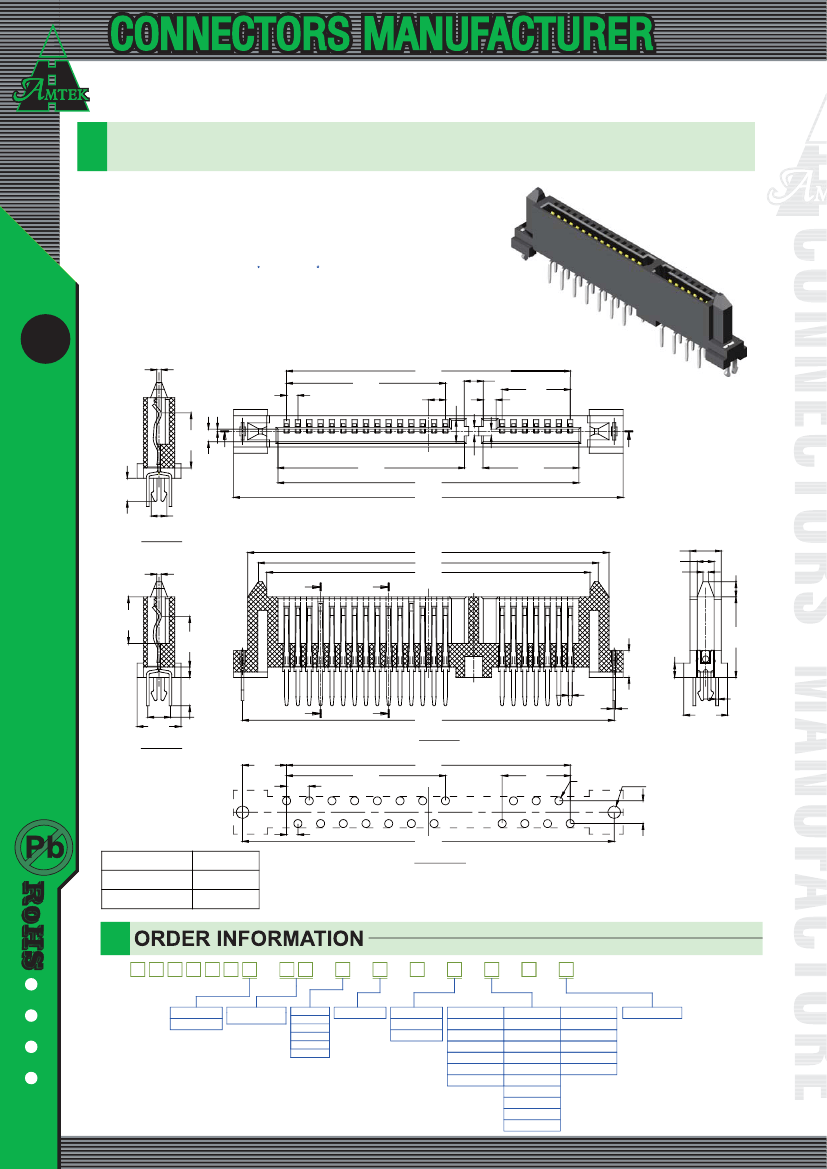

S.ATA 7+15P Straight Type

Specifications

Current Rate:1.5 AMP

Insulation Resistance:1000M

Ω

Min

Contact Resistance:30 m

Ω

Max

Dielectric Voltage:500V AC for one minute

Operation Temperature:-55 C to +125 C

Material

Insulator:High temperature thermoplastic,UL 94V-0

◎

Standard:LCP

Terminal:Copper Alloy

Plated:Selective Plaed

0.50

17.78

1.40

0.25

1.27

1.91

6.15

20.89

33.69

43.60

1.75

SECT C-C

1.05

0.75

A

2.40

2.60

0.50

5.20

C

B

5.65

A

0.45

C

B

3.00

1.60

4.90

SECT B-B

2.54

0.30

41.60

SECT A-A

0.30

4.90

4.93

2.54

17.78

31.75

7.62

Ø

0.90±0.05

Ø

1.45±0.05

1.27

Part No.

SATAS-F22SB-R1-U

SATAS-F22SB-RA-U

Dim.A

3.00

3.18

41.60

P.C.B. Layout

Top View

Part No.:SATAS-F22SB-XX-U

2 2

S

B

-

X

-

U

S A T A S - X

M:Male

F:Female

No. of contacts

(07+15)

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

SF:15u"

B:Black Insulator

H:Series No.

R:Series No.

S:Series No.

E:Type E

F:Type F

G:Type G

H:Type H

I:Type I

J:Type J

(Series No.:H Only)

1:Type 1

4:Type 4

5:Type 5

7:Type 7

8:Type 8

A:Type A

B:Type B

D:Type D

E:Type E

K:Type K

1:Type 1

2:Type 2

5:Type 5

9:Type 9

A:Type A

(Series No.:S Only)

U:RoHS + LCP

5-80

◎:

Standard Recommend

(Series No.:R Only)

www.amtek-co.com.tw

2.54

9.00

1.70

S

erial ATA

31.75

2.11

7.62

1.45

A

10.73

40.43

38.05

36.19

3.50

1.90

0.60
