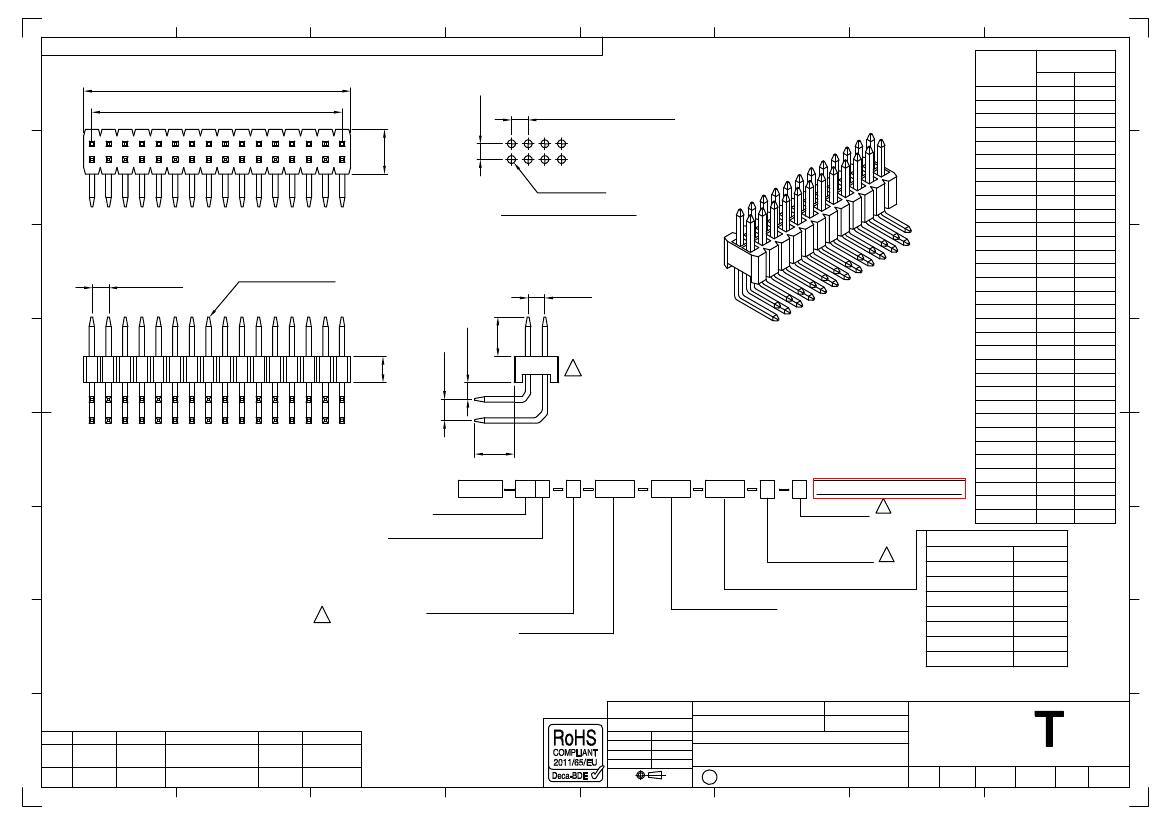

Global Connector Technology Ltd. - BD035: 1.27mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, HORIZONTAL
A
5
6
7
CONTACTS
8
DIMENSION
A
1.27
2.54
3.81
5.08
6.35
7.62
8.89
10.16
11.43
12.70
13.97
15.24
16.51
17.78
19.05
20.32
21.59
22.86
24.13
25.40
26.67
27.94
29.21
30.48
31.75
33.02
34.29
35.56
36.83
38.10
39.37
40.64
B
2.54
3.81
5.08
6.35
7.62
8.89
10.16
11.43
12.70
13.97
15.24
16.51
17.78
19.05
20.32
21.59
22.86
24.13
25.40
26.67
27.94
29.21
30.48
31.75
33.02
34.29
35.56
36.83
38.10
39.37
40.64
41.91
B±0.38
1.27
A±0.25
1.27 Typ. (Non-Accum.)
A
B
Ø0.65 (Typ.)
RECOMMENDED PCB LAYOUT
C
1.27 (Typ)
PIN 0.40 SQ (Typ.)
1.27
C±0.2
1.27
H
D
B
E
D±0.2
Ordering Grid
BD035
SPECIFICATIONS
规格:
CURRENT RATING
电流额定值：
1 Amp.
INSULATOR RESISTANCE
绝缘电阻值：
1000 MΩ Min.
DIELECTRIC WITHSTANDING
耐电压：
AC 300 V
CONTACT RESISTANCE
接触电阻值：
20 mΩ Max.
OPERATING TEMPERATURE
工½温度：
-40°C TO +105°C
CONTACT MATERIAL
端子物料：
COPPER ALLOY
INSULATOR MATERIAL
绝缘½物料
:
STANDARD
标准物料
: POLYAMIDE
聚醯胺
, NYLON 6T, UL 94V-0
E
SOLDERING PROCESS
可焊性
:
NYLON 6T (STANDARD
标准物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
: 230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
BD050
BD055
BD057
BD060
BD064
BD065
BD067
BD091
BD092
BD093
XX X
X
XXXX
XXXX
XXXX
N
X
REQUEST SAMPLES AND QUOTATION
No. of Contacts
04 to 66
Contact Plating
A = Gold Flash All Over
(Standard)
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Insulator Height 'H'
L = 2.5mm
(Standard)
Dimension C
(1/100mm)
K = 1.0mm
(Post Height)
A = 1.5mm
0480 = 4.80mm
(Standard)
G = 1.7mm
or specify Dimension C
B = 2.0mm
eg 0250 = 2.50mm
M = 2.7mm
F = 3.0mm
Tolerances
(Except as noted)
F
Packing Options
D
G = Plastic Box
(Standard)
D = Tube
E = Tube with Cap
Insulator Material
E
N = Nylon 6T
(Standard)
Dimension E
(1/100mm)
(Center of Pin to Insulator)
See table right for standards
or specify Dimension E
eg 0080 = 0.80mm
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
3.4
B
C
E±0.2
D
E
DIMENSION STANDARDS
INSULATOR HEIGHT 'H'
L = 2.5mm
(Standard)
K = 1.00mm
A = 1.50mm
G = 1.70mm
B = 2.00mm
M = 2.70mm
F = 3.00mm
DIMENSION E
0.80mm
0.20mm
0.30mm
1.30mm
0.80mm
0.20mm
1.20mm
F
G
Dimension D (1/100mm)
(Tail Length)
0250 = 2.50mm
(Standard)
or specify Dimension D
eg 0250 = 2.50mm
G
Part Number:-
Date:-
Dimensions in mm
BD035
Description:-
21 DEC 07
H
By
AJO
PN
SIDE VIEW
AMMENDED
B
17/04/09
PN
STANDARD INSULATOR
MATERIAL CHANGE
C
27/04/09
CB
PACKING
OPTIONS
D
20/05/09
ASE
INSULATOR
INFORMATION
E
27/07/09
DRAWING
DETAIL
RELEASE
REV
DATE
A
22/07/13
X.°±5°
X.X ± 0.20
.X°±2°
X.XX ± 0.15 .XX°±1°
X.XXX ± 0.10 .XXX°±0.5°
Third Angle Projection
X. ± 0.30
1.27mm PITCH PIN HEADER, DUAL ROW,
THROUGH HOLE, HORIZONTAL
GC
Scale
NTS
H
Sheet No.
E & OE
1/1
www.gct.co
Drawn by
VJ
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
E
Material
See Note
1
2
3
4
5
6
7
8
