1212-164-37P-BA: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1212-164-37P-BA Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

1212-164-37P-BA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.335 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	1212
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

TEKCON

1212 Series

[ Plug ]

y

http://www.tekcon.com

http://www.tekcon.com.tw

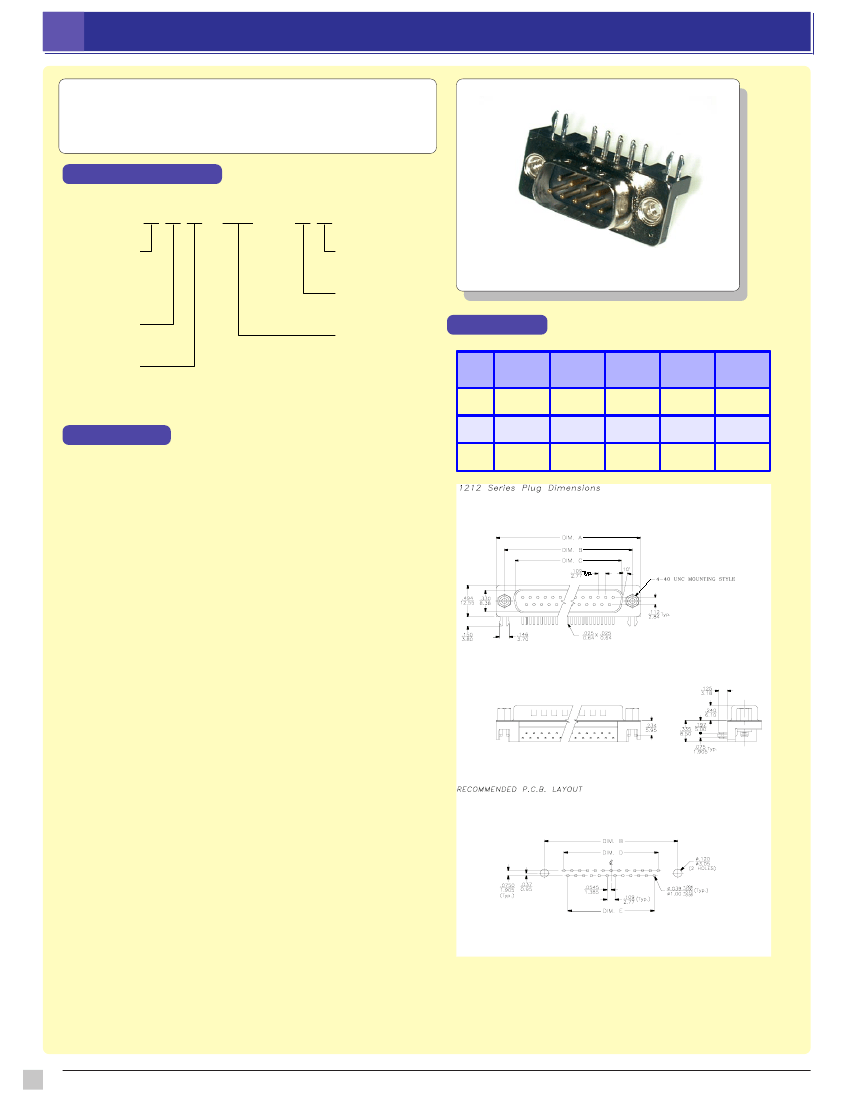

D-Sub Miniature Right Angle

PCB Connector, 5mm Footprint

Ordering Information

1212

-

X X X

-

XX P

-

X X

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

Rivet & Hex Nut

0,1,6 - see hex nut

table sheet

Grounding Clip

4 - Type 4, see

grounding clip sheet

Shell Plating

A - Nickel (Std.)

B - Tin

Spacer Type

A - Open Type (Std.)

B - Close Type

NO. of Contact

09 - 9 positions

15 - 15 positions

25 - 25 positions

37 - 37 positions

Dimensions

No. of

Contact

9

Dim A

mm/in.

30.84/1.214

39.24/1.545

53.04/2.088

Dim B

mm/in

24.99/0.984

33.32/1.312

47.04/1.852

Dim C

mm/in

16.92/0.666

25.25/0.994

38.96/1.534

Dim D

mm/in

11.08/0.436

19.39/0.763

33.24/1.309

Dim E

mm/in

8.31/0.327

16.62/0.654

30.47/1.200

Specification

p

Materials:

s

Insulator:

Glass Reinforced Thermoplastic UL94V-0.

s

Shell:

Steel with Nickel Plating.

s

Contact:

Copper Alloy.

s

Plating:

Gold Flash on Contact Area and Tin/

Lead on Solder Tail.

s

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

s

Hex-Nut:

Brass with Nickel Plating.

p

Electrical:

s

Insulation Resistance:

5000 MΩ Minimum.

s

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

s

Voltage Rating:

600V.

s

Current Rating:

5 AMP.

s

Contact Resistance:

10 mΩ Maximum.

p

Enviromental

s

Temperature: -558C to +1258C

15

25

v

All Dimensions are shown in in/mm.

v

The above ordering data is for our standard products.

For Non-Standard products, please contact TEKCON

Electronics Corporation.

TEKCON Electronics Corporation
