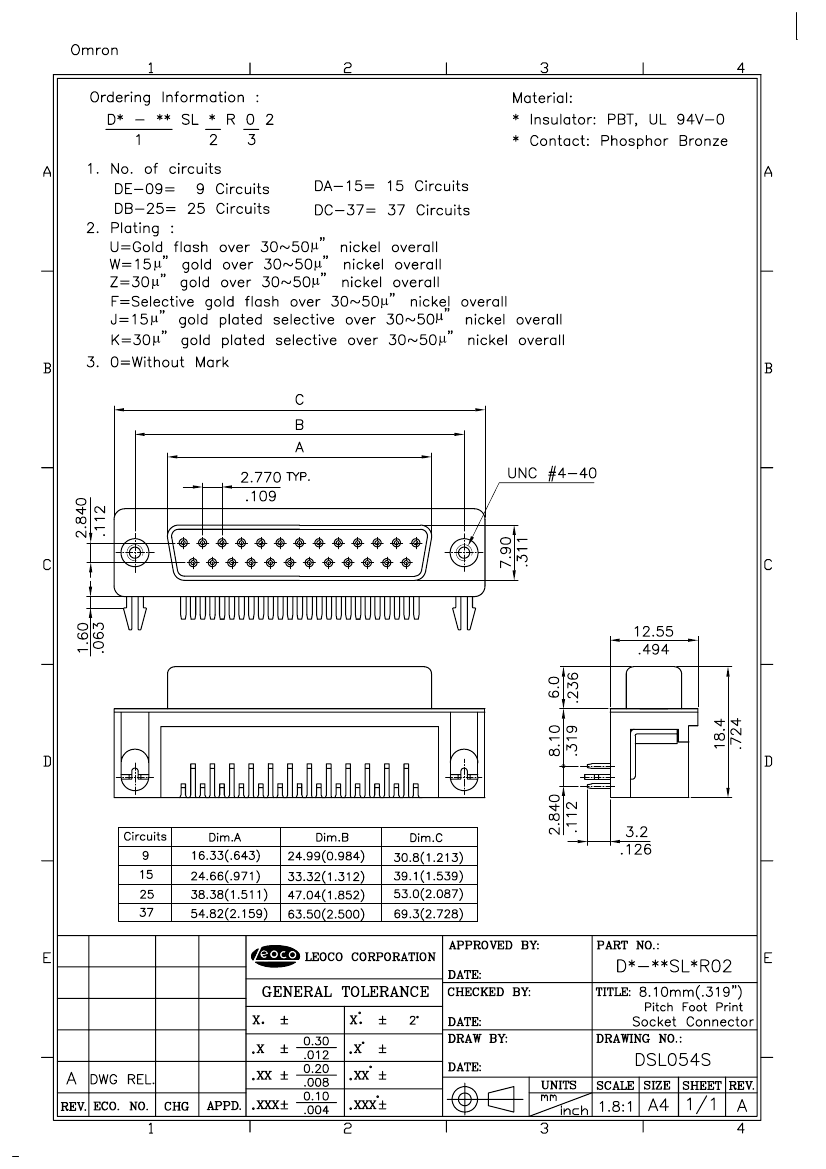

DA-15SLZR02

Description
D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size74KB,1 Pages
ManufacturerLeoco USA Corp
Websitehttp://www.leoco.com.tw
Download Datasheet Parametric View All

DA-15SLZR02 Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DA-15SLZR02 Parametric

Parameter NameAttribute value
MakerLeoco USA Corp
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITHOUT MARK
body width0.494 inch
subject depth0.488 inch
body length1.539 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDSL
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2RIVET
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.126 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts15
