DHSL-15FFT2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DHSL-15FFT2

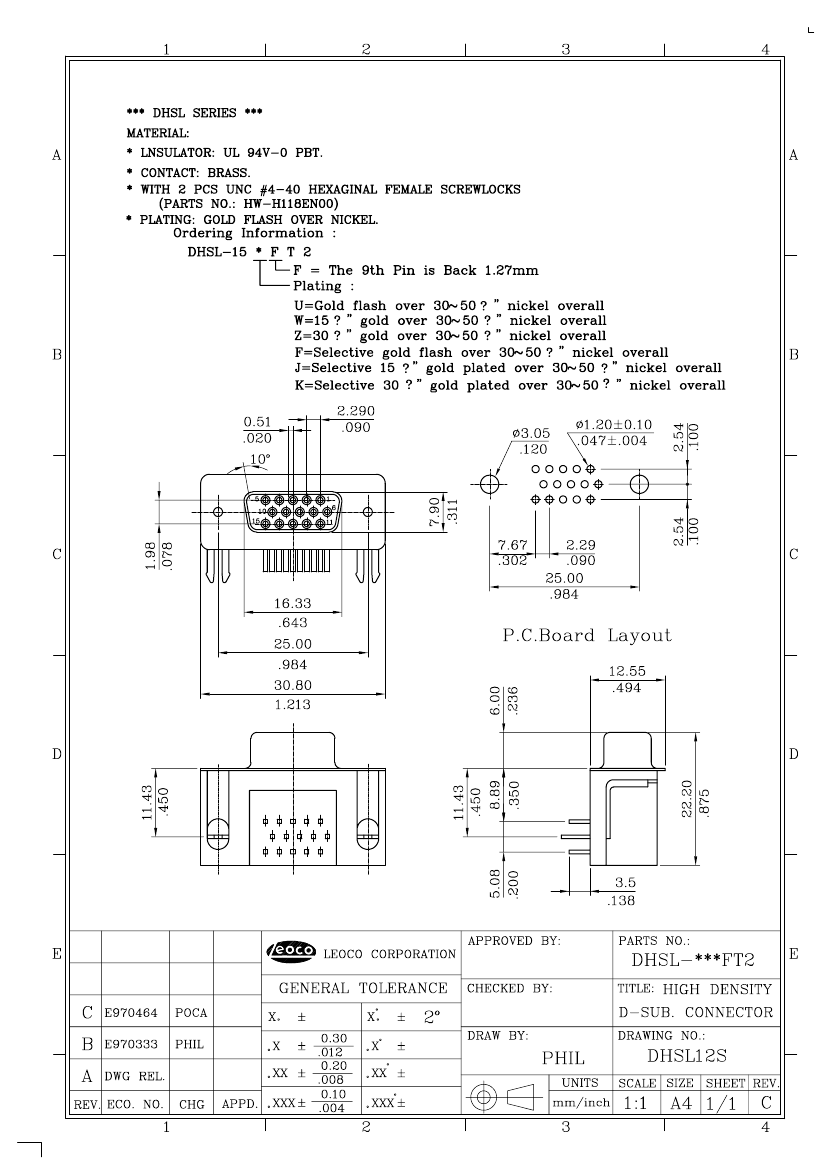

DHSL-15FFT2: DescriptionD Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

DHSL-15FFT2 Overview

D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

DHSL-15FFT2 Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	9TH PIN IS BACK 0.050 INCH
body width	0.494 inch
subject depth	0.639 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHSL
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.138 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

DHSL-15FFT2 Related Products

	DHSL-15FFT2	DHSL-15JFT2	DHSL-15WFT2	DHSL-15KFT2	DHSL-15ZFT2
Description	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug
Maker	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	9TH PIN IS BACK 0.050 INCH	9TH PIN IS BACK 0.050 INCH	9TH PIN IS BACK 0.050 INCH	9TH PIN IS BACK 0.050 INCH	9TH PIN IS BACK 0.050 INCH
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch
body length	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHSL	DHSL	DHSL	DHSL	DHSL
Plug contact pitch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	SCREWLOCKS	SCREWLOCKS	SCREWLOCKS	SCREWLOCKS	SCREWLOCKS
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3	3
Number of rows loaded	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	FLASH inch	15u inch	15u inch	30u inch	30u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15	15
