CSM0315D1R0N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > CSM0315D1R0N

Preview

CSM0315D1R0N: DescriptionSMD WIRE WOUND POWER INDUCTORS (SHIELDED); File Size176KB，2 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Compare View All

CSM0315D1R0N Overview

SMD WIRE WOUND POWER INDUCTORS (SHIELDED)

Preview

Download Datasheet

View All

CSM0315D Series

SMD WIRE WOUND POWER INDUCTORS (SHIELDED)

Rev. A

A. Electrical Specifications:

P/N

CSM0315D-1R0N

CSM0315D-1R5N

CSM0315D-1R8N

CSM0315D-2R2N

CSM0315D-2R7N

CSM0315D-3R3M

CSM0315D-3R6M

CSM0315D-4R7M

CSM0315D-5R1M

CSM0315D-6R2M

CSM0315D-6R8M

CSM0315D-100M

CSM0315D-120M

CSM0315D-150M

CSM0315D-180M

CSM0315D-220M

CSM0315D-330M

CSM0315D-390M

CSM0315D-430M

CSM0315D-470M

CSM0315D-560M

CSM0315D-680M

CSM0315D-101M

(uH)

1.0

1.5

1.8

2.2

2.7

3.3

3.6

4.7

5.6

6.2

6.8

100

Tol.

± 20%, ± 30%

Mark

1R0

1R5

1R8

2R2

2R7

3R3

3R6

4R7

5R6

6R2

6R8

100

120

150

180

220

330

390

430

470

560

680

101

Test Freq.

(MHz)

DCR Max.

(Ω)

0.0360

0.0480

0.0650

0.0720

0.0975

0.0960

0.1365

0.1360

0.1625

0.2535

0.2110

0.2678

0.4160

0.4220

0.5590

0.5980

0.9590

1.2940

1.3780

1.4060

1.6640

3.5100

2.9200

I sat. Max.

(A)

2.10

1.80

1.75

1.48

1.52

1.21

1.28

1.08

1.00

0.90

0.75

0.70

0.58

0.56

0.47

0.39

0.41

0.37

0.32

0.33

0.28

0.23

I rms Max.

(A)

2.10

1.90

1.70

1.60

1.43

1.45

1.20

1.25

1.09

0.86

0.90

0.87

0.68

0.65

0.59

0.55

0.45

0.39

0.37

0.40

0.34

0.23

0.25

B. Dimensions: mm (Inch)

Series

CSM0315D

Tol.

3.0

(0.118)

±0.1

(0.004)

3.0

(0.118)

±0.1

(0.004)

1.5

(0.059)

Max.

2.7

(0.106)

Typ.

0.9

(0.035)

Typ.

1.2

(0.047)

Typ.

1.0

(0.039)

Typ.

2.7

(0.106)

Typ.

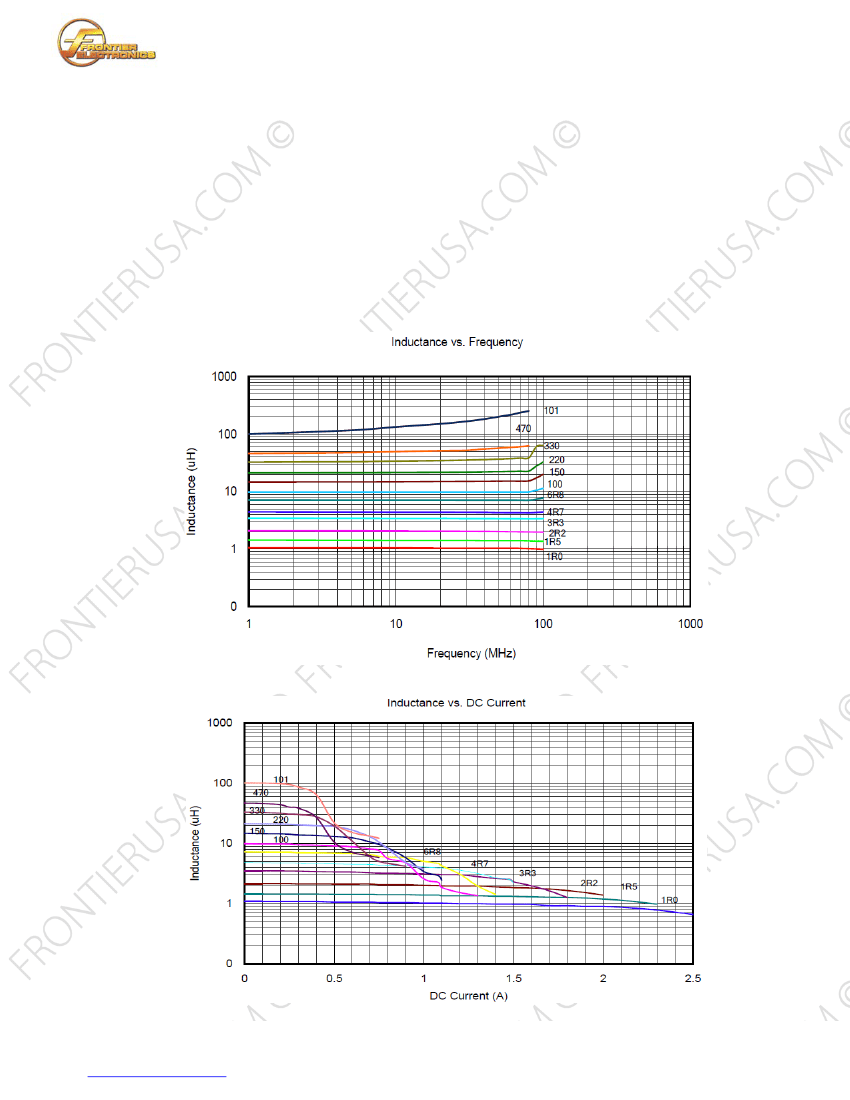

C. General Information:

1. CSM0315D-xxx_, “CSM0315D” = P/N, “xxx” = Inductance, “_” = Tolerance.

2. Tolerance “_”: M: ± 20%, N: ± 30%

3. Test Freq.: 1MHz, 1V

4. Magnetically shielded

5. High saturation current

6. I sat: based on inductance decrease 30% (at 20 ºC ambient).

7. I rms: based on temperature increase 40ºC (at 20 ºC ambient).

8. Operating temperature range: -25ºC to +105ºC (Including self-heating).

9. Storage temperature: -40ºC to +85ºC.

10. Inductance measured: CH-3302, HP4286A or equivalent.

11. DCR measured: CHROMA 16502 or equivalent.

12. Inductance and Current Range: From 1.0 uH (2.1 A) to 100 uH (0.25 A)

13. MSL: Level 1.

Frontier Electronics Corp.

http://www.frontierusa.com

Page

667 E. Cochran St., Simi Valley, CA 93065

Phone: 1-805-522-9998, Fax: 1-805-522-9989
