1360-3-58-2-12-1: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1360-3-58-2-12-1 Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1360-3-58-2-12-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.217 inch
subject depth	0.079 inch
body length	1.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1360
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	58
Base Number Matches	1

Preview

Download Datasheet

View All

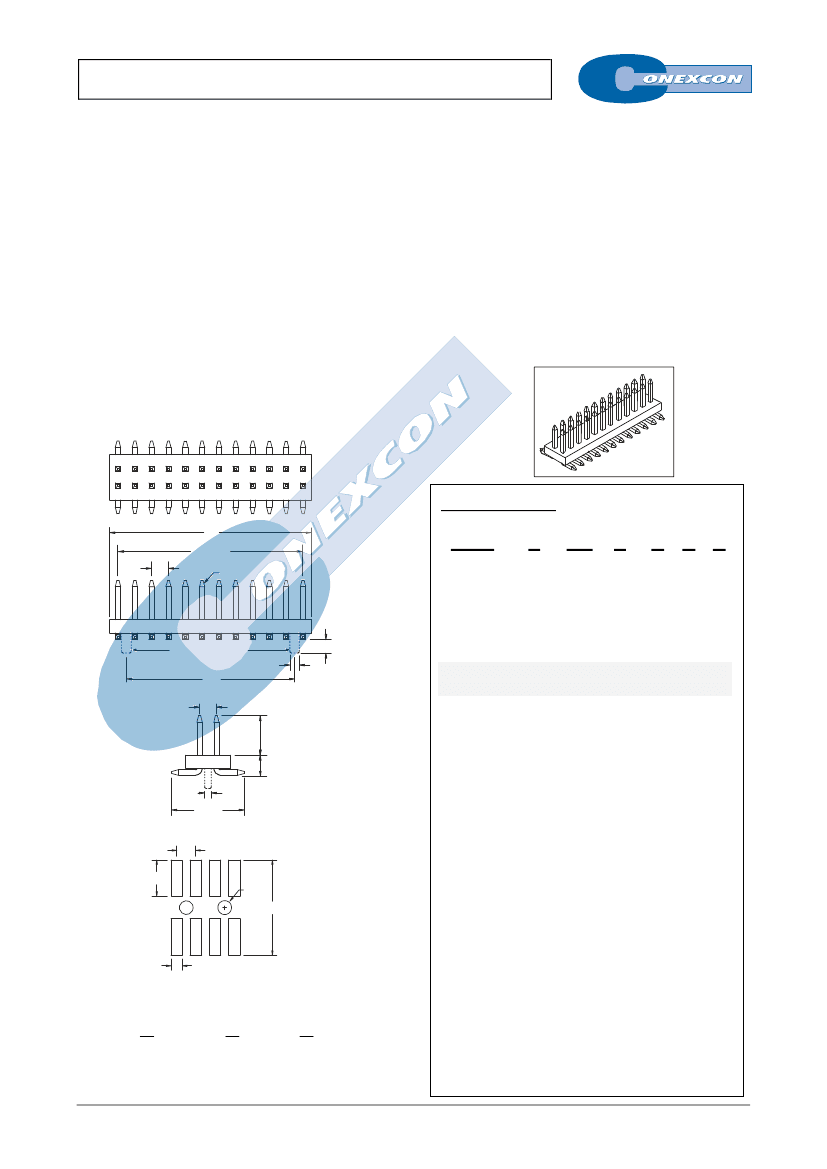

DUAL ROW SMT VERTICAL PIN HEADER

1360 SERIES.

1.27 mm (0.050”) pitch.

General Features

Electrical Features







Available in 4 through 80 circuits

Mates with sockets dual row 1.27 mm pitch 1295, 1297,

1305, 1284, 1310, 1314 and crimp or IDC connectors

0,40 mm. square pin with different plating

With or without fixing post

Available different pin length. Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0,15 Kgf

Durability: 50 cycles

Dimensional Information

Ordering Information:

B

A±0.5

1.27

0.40

1360 -

1

T-

2

XX- L- P S- E

3

4

5

6

7

1. Connector Series

2. (T) Contact Plating

Optional fixing post

0.70

C

1.27

H

D

0.50

5.50

RECOMMENDED PCB LAYOUT

1.27

2.40

1.05

6.30

1.00



T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

3. (XX) Number of circuits

Available in 04 through 80 circuits

4. (L) Insulator dimensions

L =

1.

D = 1.50 mm.

L =

2.

D = 2.00 mm.

L =

3.

D = 2.50 mm.

5. (P) Fixing Post

P =

1.

Without fixing post

P =

2.

With fixing post

6. (S) Pin Length

0.63

S =

1.

Dimension H = 3.00 mm.

S =

2.

Dimension H = 1.50 mm.

S =

3.

Dimension H = 1.90 mm.

DIMENSIONS:



XX



A

½

1.27



2



1









XX



B

½

1.27







2









XX



C

½

1.27



2



2







7. (E) Connector Packaging

XX

=

Number of circuits



E =

1.

Tube + Plastic cover

E =

2.

Reel + Plastic cover

A-XX

FULL LINE CATALOGUE
