TMBP-127-100-CMS-DE-CL

Description
Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
CategoryThe connector    The connector
File Size247KB,2 Pages
ManufacturerAntelec
Websitehttp://www.antelec.fr
Download Datasheet Parametric View All

TMBP-127-100-CMS-DE-CL Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

TMBP-127-100-CMS-DE-CL Parametric

Parameter NameAttribute value
MakerAntelec
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberTMBP
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts100
UL Flammability Code94V-0

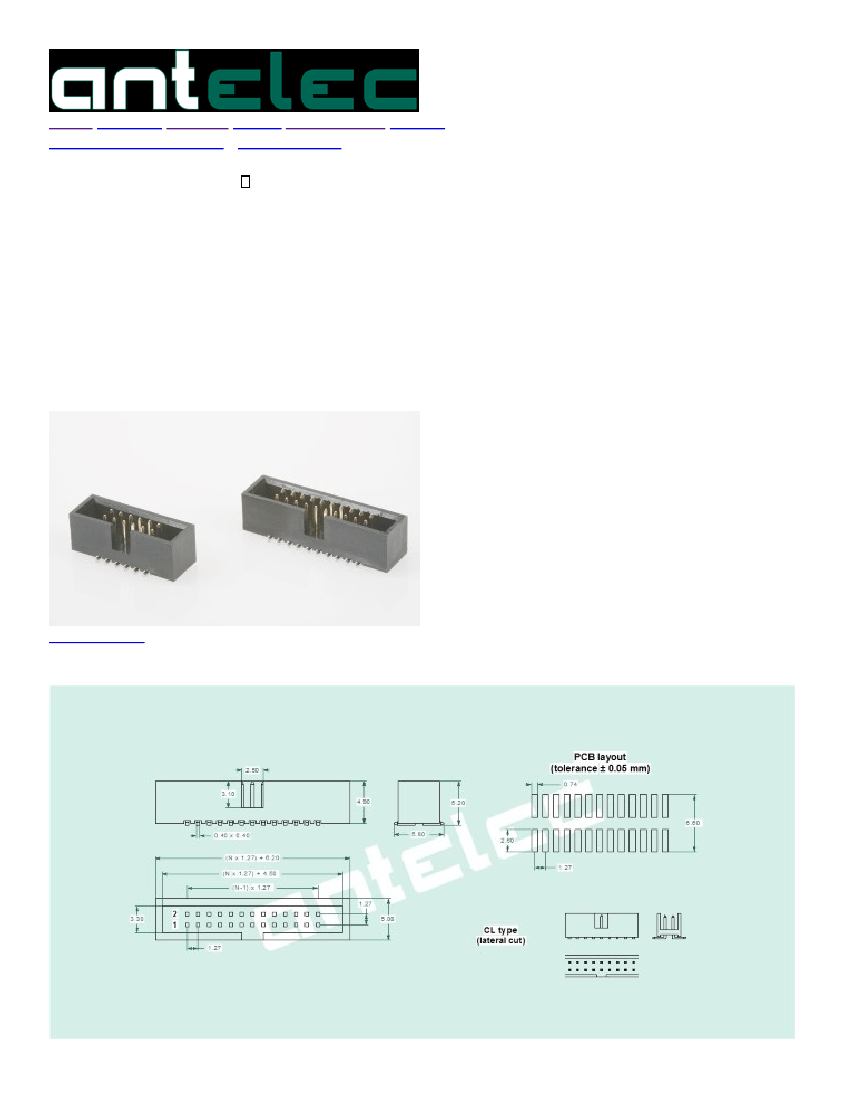

TMBP-127-100-CMS-DE-CL Preview

6/15/2015
Antelec • Product specification • TMBP­127­XX­CMS­D­( )­( ) (page 192)
Home About us Products Search New products Contact
IDC connectors (HE10) > pitch 1.27 mm
1.27 mm
Box header SMT type pin   0.40 mm

Product specifications
Current rating : 1.0 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : ­55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold or selective
Insulator : nylon­6T, UL94V­0
Connect with
CAD­127
K127
Create your part number
http://www.antelec.fr/en/page.php?id=19&t=0
1/2
6/15/2015
Antelec • Product specification • TMBP­127­XX­CMS­D­( )­( ) (page 192)

TMBP
127
XX
CMS
D

Empty for In Bulk or
Total
Gold or standard B/A for Reel
Pitch
SMT
Box header
number
DE for or CL for with pad or
1.27 mm
version
of contacts
Selective Lateral
T/A for Tube
Cut
with pad
Product range
Number of pins :
2 rows : 10, 14, 16,
20, 26, 30, 34, 40, 44,
50, 60, 80, 100 pins
192
For this item, ask for :
Specification (PDF)
Samples
Quote
Connect with
3D configurator
