ORT43SGYRY: Description3mm LED CIRCUIT BOARD INDICATOR 4 TIER SHROUDED; File Size30KB，2 Pages; ManufacturerBOT; Websitehttp://www.bot.co.uk/

Download Datasheet View All

ORT43SGYRY Overview

3mm LED CIRCUIT BOARD INDICATOR 4 TIER SHROUDED

Preview

Download Datasheet

View All

This

component

is RoHS

compliant

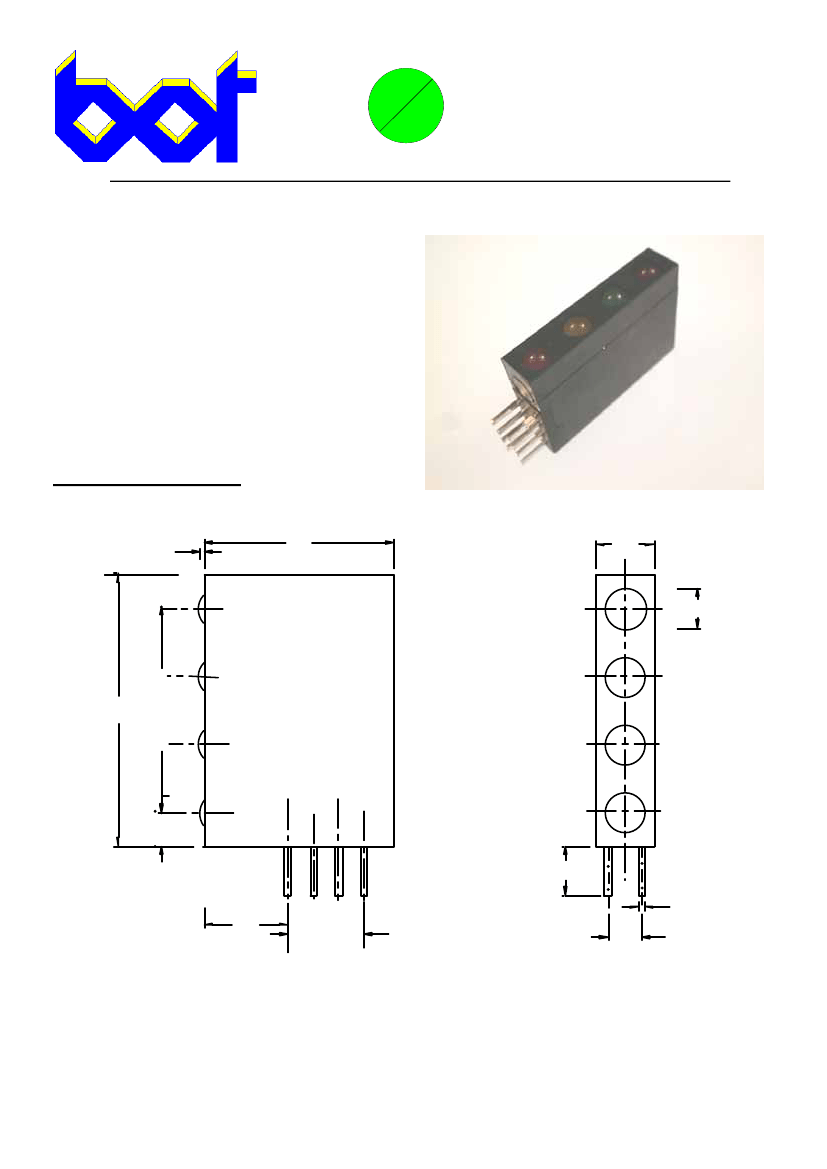

ORT43S

3mm LED CIRCUIT

BOARD INDICATOR

4 TIER SHROUDED

The ORT43S is a 3mm LED Circuit Board

Indicator Quad Level, and allows for LED

mounting at 90 deg to a PCB. The housing is

moulded in Black Nylon 6 which is flame

retardant.

•

Extended housing eliminates light bleed

•

Housing assures proper LED alignment

•

Single PC Board insertion – 4 LEDs

•

Black case enhances contrast

•

Baseplate ensure accurate pin alignment for

easy board insertion.

•

Equivalent to Dialight 568-221X series

MECHANICAL DATA

'A'

14.1

4.32

POSITION

3.0

3 pitches 5.08

20.3

2.54

3.68

0.5

2.54

6.22

3 pitches 1.9

LED PROTRUSION

RED,YELLOW,GREEN 'A'=0.2

RED/GREEN BI-COLOUR 'A'=1.1

BEDFORD OPTO TECHNOLOGY LTD

1 BIGGAR BUSINESS PARK, BIGGAR,LANARKSHIRE ML12 6FX

Tel: +44 (0) 1899 221221 Fax: +44 (0) 1899 221009

Website: bot.co.uk E-mail: bill@bot.co.uk

3.4.01 ISS C
