Z-279-10FD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> Z-279-10FD

Preview

Z-279-10FD: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

Z-279-10FD Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

Z-279-10FD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

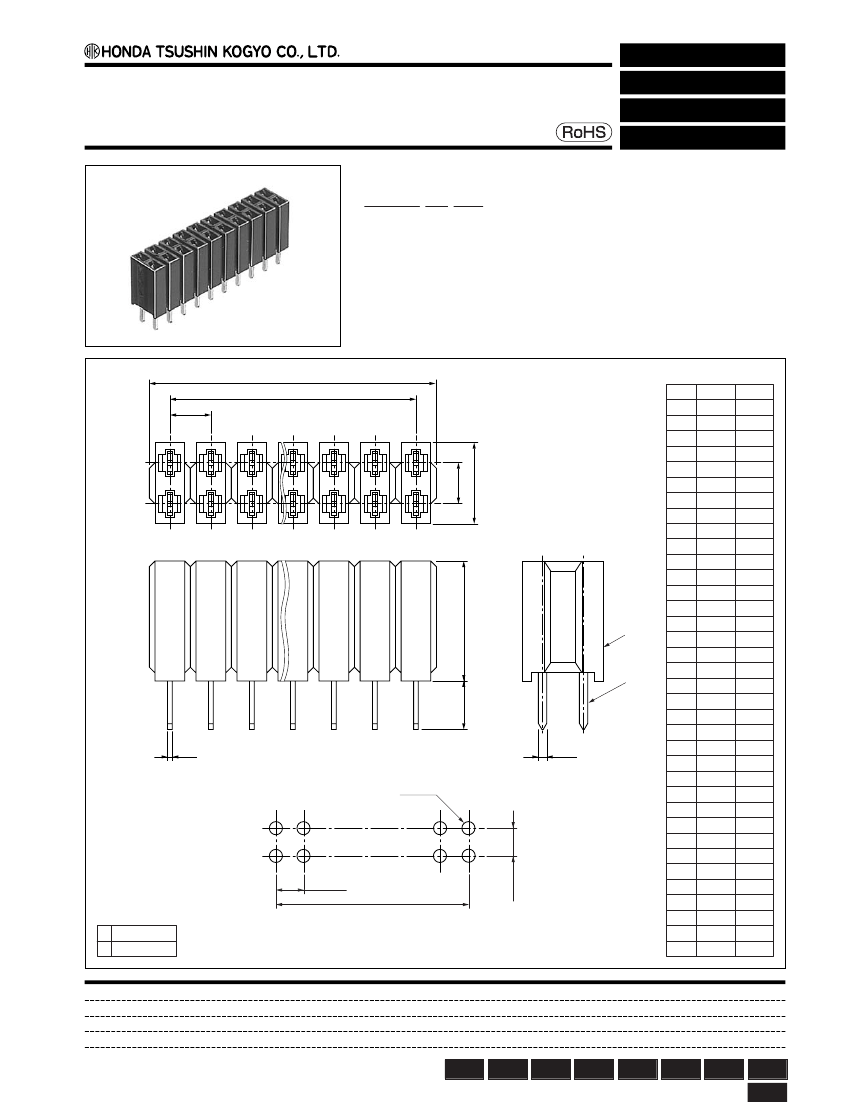

2.54 mm pitch connector

Straight through hole type female connector for PCB

(round contact type)

Z-279-( )FD

●

Configuration of product Part No.

For PCB

Straight Through hole

Z-279- ( ) FD

➀

➁

➂

➀

Series name

➁

No. of contacts: 2–72

➂

Type of contact

FD: Straight through hole type, female

Contact plating: Gold plate

B

A

2.54

●

Dimensions

No. of

contacts

2

4

6

8

10

12

14

16

18

20

22

24

26

28

A

–

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

7.5

2.54

5.04

➀

➁

30

32

34

36

38

40

42

44

3

0.4

0.75

46

48

50

52

54

56

58

60

ø1

–

+ 0.06

2.54

– 0.05

2.54

– 0.05

A

– 0.1

+

62

64

66

68

70

72

●

Components

➀

Insulator

➁

Contact

Recommended PCB layout

Mating connectors:

FFC series male connector (Cross section of contact: 0.64 mm diameter, Length of contact: 5 mm)

FFC-( )THM1(B) or FFC-( )TDM1(B) male connector

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole

Recommended Resources

Pascal driver small subwoofer

Add ringing circuit to CT-999 cordless telephone

Non-contact current monitor

Absolute value inverter circuit

555 single/dual trace oscilloscope conversion circuit

Phase sequence indicator circuit made with incandescent lamp and capacitor
