NREWB100M450V12.5X20F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NREWB100M450V12.5X20F

NREWB100M450V12.5X20F: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size32KB，1 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

NREWB100M450V12.5X20F Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NREWB100M450V12.5X20F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NIC Components Corp
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM
ESR	39810 mΩ
JESD-609 code	e3
leakage current	0.145 mA
length	20 mm
Manufacturer's serial number	NRE-WB
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	140 mA
series	NRE-WB
surface mount	NO
Delta tangent	0.24
Terminal surface	Matte Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

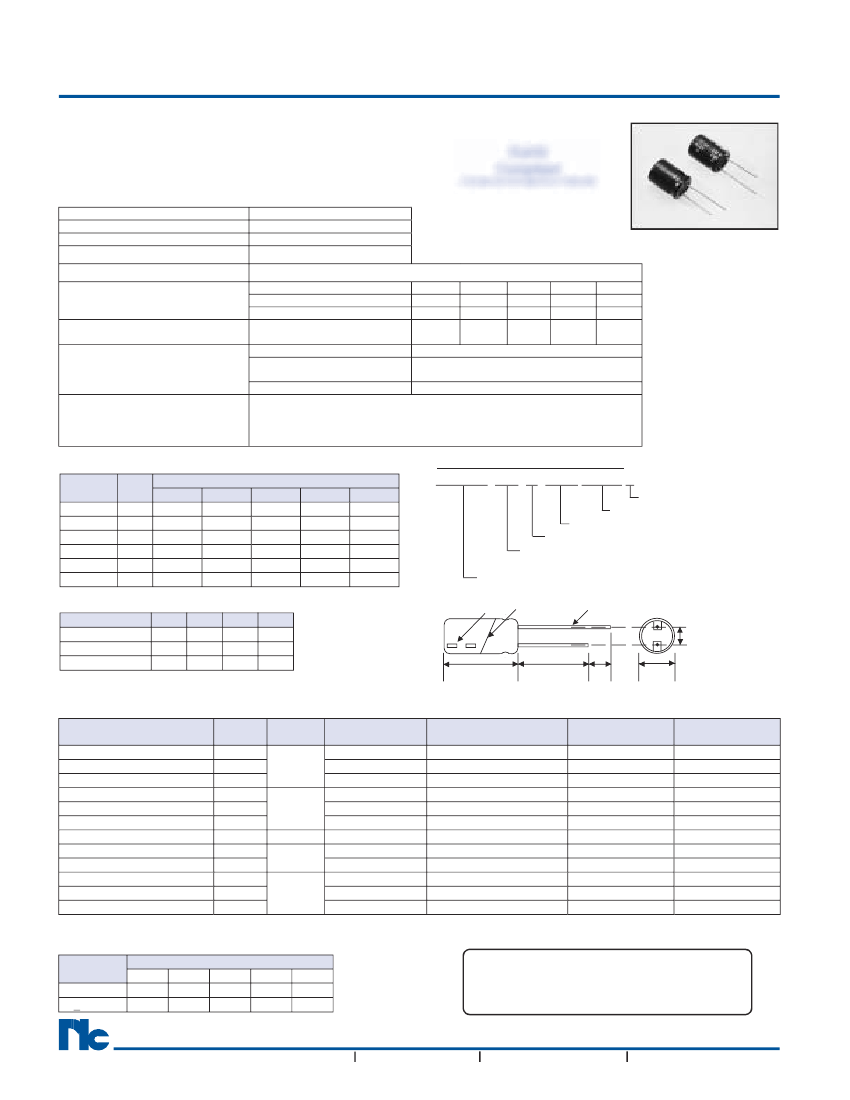

Miniature Aluminum Electrolytic Capacitors

NRE-WB SERIES HIGH VOLTAGE, RADIAL LEADS, EXTENDED TEMPERATURE

FEATURES

RoHS

• HIGH VOLTAGE (UP THROUGH 450VDC)

Compliant

• NEW REDUCED SIZES

includes all homogeneous materials

• +105 C EXTENDED TEMPERATURE AND LOAD LIFE

*See Part Number System for Details

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Maximum Leakage Current @ 20°C

Max. Tan

@ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V.

+105°C 8,000 Hours: 10φ

+105°C 10,000 Hours: 12.5φ & up

Shelf Life Test

+105°C 1,000 Hours with no load

W.V.

S.V.

Tan

Z-25°C/Z+20°C

Capacitance Change

Tan

Leakage Current

200 ~ 450VDC

10 ~ 220µF

-25°C ~ +105°C

±20% (M)

0.03CV +10µA after 2 minutes

200

250

350

250

300

400

0.15

0.20

400

450

0.24

450

500

0.24

NRE-WB Series

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum

value

Less than speciﬁed maximum value

Shall meet same requirements as in load life test

STANDARD PRODUCT AND CASE SIZE D

x L (mm)

Cap. (µF) Code

220

100

220

330

680

820

221

Working Voltage (Vdc)

200

250

350

400

10x20

10x20 12.5x20

16x20

18x25

18x31.5

450

12.5x20

16x20

18x25

PART NUMBERING SYSTEM

NREWB 100 M 400V 10X20 F

RoHS Compliant

Case Size (Dφ x L)

Working Voltage (Vdc)

Tolerance Code (M=20%)

Capacitance Code: First 2 characters

signiﬁcant, third character is multiplier

Series

Polarity Marking

Insulation Sleeve

dφ ± 0.05

LEAD SPACING AND DIAMETER (mm)

Case Dia. (Dφ)

Lead Dia. (dφ)

Lead Spacing (F)

Dim

0.6

5.0

0.5

12.5

0.6

5.0

0.5

0.8

7.5

0.5

0.8

7.5

0.5

F ± 0.5

= L < 20mm = 1.5mm, L > 20mm = 2.0mm

Cap.

(µF)

220

W.V.

(Vdc)

200

L +

max.

15mm Min.

4mm

Min.

Dφ ±

STANDARD VALUES, SPECIFICATIONS AND CASE SIZES (mm)

Part Number

NRE-WB220M200V10x20F

NRE-WB330M200V10x20F

NRE-WB221M200V18x31.5F

NRE-WB220M250V10x20F

NRE-WB470M250V12.5x20F

NRE-WB680M250V16x20F

NRE-WB820M350V18x25F

NRE-WB100M400V10x20F

NRE-WB330M400V16x20F

NRE-WB100M450V12.5x20F

NRE-WB220M450V16x20F

NRE-WB330M450V18x25F

Dissipation Factor Ripple Current Rating (mA)

+20°C/120Hz

+105°C/100KHz

0.15

600

0.15

650

0.15

2000

0.15

560

0.15

710

0.15

1000

0.20

1100

0.24

300

0.24

900

0.24

350

0.24

680

0.24

850

Max. ESR (Ω)

+20°C/100KHz

11.31

7.54

1.13

10x20

12.5x20

16x20

18x25

10x20

16x20

12.5x20

16x20

18x25

Load Life Hours

@+105°C

8,000

10,000

8,000

10,000

250

350

400

450

RIPPLE CURRENT FREQUECY

CORRECTION FACTOR

Cap. Value

<100µF

>100µF

0.30

0.35

Frequency (Hz)

120

10K

0.40

0.70

0.90

0.45

0.75

0.90

100K

1.0

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

111

NREWB100M450V12.5X20F Related Products

	NREWB100M450V12.5X20F	NREWB220M200V10X20F	NREWB330M250V12.5X20F	NREWB330M200V10X20F	NREWB820M350V18X25F	NREWB221M200V18X31.5F
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 22uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 33uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350V, 82uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	,	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	10 µF	22 µF	33 µF	33 µF	82 µF	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm	10 mm	12.5 mm	10 mm	18 mm	18 mm
dielectric materials	ALUMINUM	ALUMINUM	ALUMINUM (WET)	ALUMINUM	ALUMINUM	ALUMINUM
ESR	39810 mΩ	11310 mΩ	7540 mΩ	7540 mΩ	4050 mΩ	1130 mΩ
JESD-609 code	e3	e3	e3	e3	e3	e3
leakage current	0.145 mA	0.142 mA	0.2575 mA	0.208 mA	0.871 mA	1.33 mA
length	20 mm	20 mm	20 mm	20 mm	25 mm	31.5 mm
Manufacturer's serial number	NRE-WB	NRE-WB	NRE-WB	NRE-WB	NRE-WB	NRE-WB
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	TR	TR	TR	TR	TR	TR
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	450 V	200 V	250 V	200 V	350 V	200 V
ripple current	140 mA	240 mA	284 mA	260 mA	440 mA	900 mA
series	NRE-WB	NRE-WB	NRE-WB	NRE-WB	NRE-WB	NRE-WB
surface mount	NO	NO	NO	NO	NO	NO
Delta tangent	0.24	0.15	0.15	0.15	0.2	0.15
Terminal surface	Matte Tin (Sn)	TIN	Matte Tin (Sn)	MATTE TIN	TIN	TIN
Terminal pitch	5 mm	5 mm	5 mm	5 mm	7.5 mm	7.5 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
