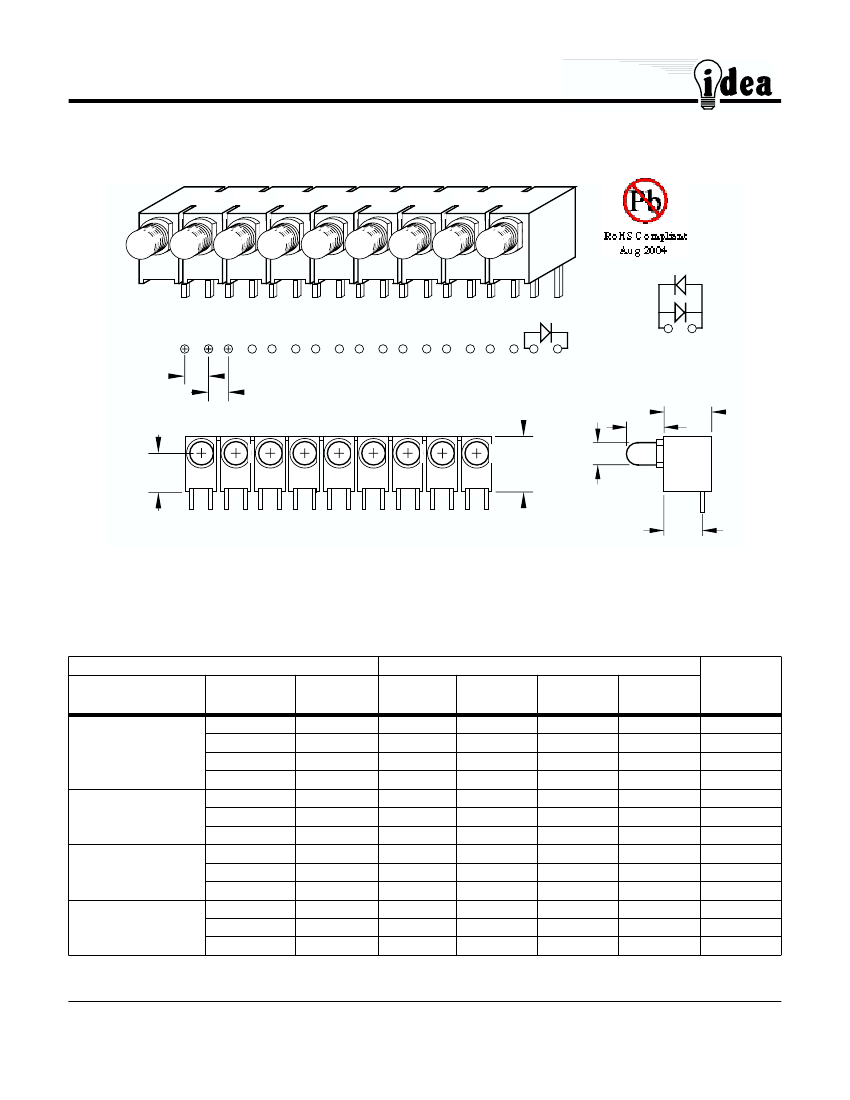

T-1, (3-mm) Round, PCB Mount
Right Angle Array, G61XL Series
www.ledidea.com
The G61XL is a T-1 size right-angle indicator array. The LEDs are located on 4.57 mm(0.18") centers. The G61XL can be supplied with
the desired lamps preassembled from 1 to 9 sections long. (G611L thru G619L) This series provides easier handling in multiple lamp
applications, and can be supplied with any combination of colors. This series can also be supplied with pinout reversed from that shown
by adding “-RL” to the order code of the part number.
1
2
3
...
...
...
...
...
X
Red or
yellow
Anode
Green
Anode
LED 1
(typ for bi-color)
+ –
(typ for single color)
2.54(0.10)
typ
2.03(0.08)
typ
6.35
5±.5
5.08
IDEA
IDEA
IDEA
IDEA
IDEA
IDEA
IDEA
IDEA
IDEA
(0.20)
7.4
3 typ
5.08
ref
Specify part desired as follows:
G61XL/Order Code LED1 + Order Code LED 2 + ... + Order Code LED X
For example:
“G618L/4H+4G” designates an assembly with 4 red LEDs followed by 4 green LEDs.
“G618L/(4H+4G)-RL” designates the same assembly with all pins reversed
ORDER CODE AND INFORMATION (ALL RATINGS AT 25°C AMBIENT)
LED Lamp
Epoxy & Type
Color
Hi Eff Red
TInted Diffused
Resistor Required
Green
Yellow
Orange
Hi Eff Red
Tinted Transparent
High Brightness
Green
Yellow
Hi Eff Red
Tinted Diffused
For 2mA Operation
Green
Yellow
Red/Green
White Diffused
Bipolar, Bicolor
Yellow/Green
Red/Yellow
Order Code
I
G
Y
O
IT
GT
YT
I2
G2
Y2
EG
YG
EY
Peak
λ
(nm)
635
565
585
610
635
565
585
635
565
585
635/565
585/565
635/585
Typical Characteristics
Vf
(V)
@If=20mA
2.0
2.1
2.0
2.0
2.0
2.1
2.0
2.0
2.1
2.0
2.0/2.1
2.0/2.1
2.0/2.0
Iv
(mcd)
@If=10mA
10
10
10
10
40
40
40
1.0 @ 2mA
1.0 @ 2mA
1.0 @ 2mA
4/4
4/4
4/4
2
Θ
1/2
(Deg)
60
60
60
60
40
40
40
60
60
60
90
90
90
Recom.
Op. If
(mA)
10-20
10-20
10-20
10-20
10-20
10-20
10-20
2-10
2-10
2-10
10-20
10-20
10-20
* Specifications subject to change without notice. Dimensions are in mm±0.25 unless stated otherwise.
