RX-H201TD-2112 datasheet, PDF - EEWORLD Datasheet

RX-H201TD-2112: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle; CategoryThe connector The connector; File Size444KB，5 Pages; ManufacturerJST

Download Datasheet Parametric View All

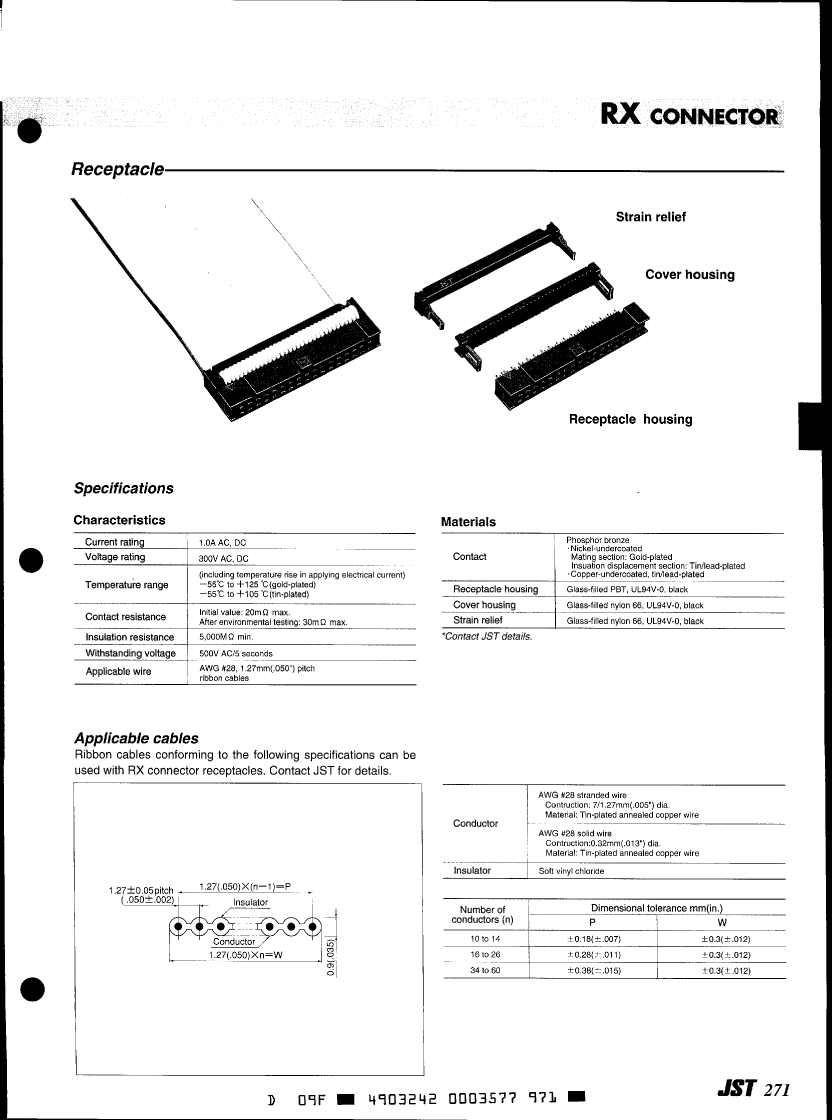

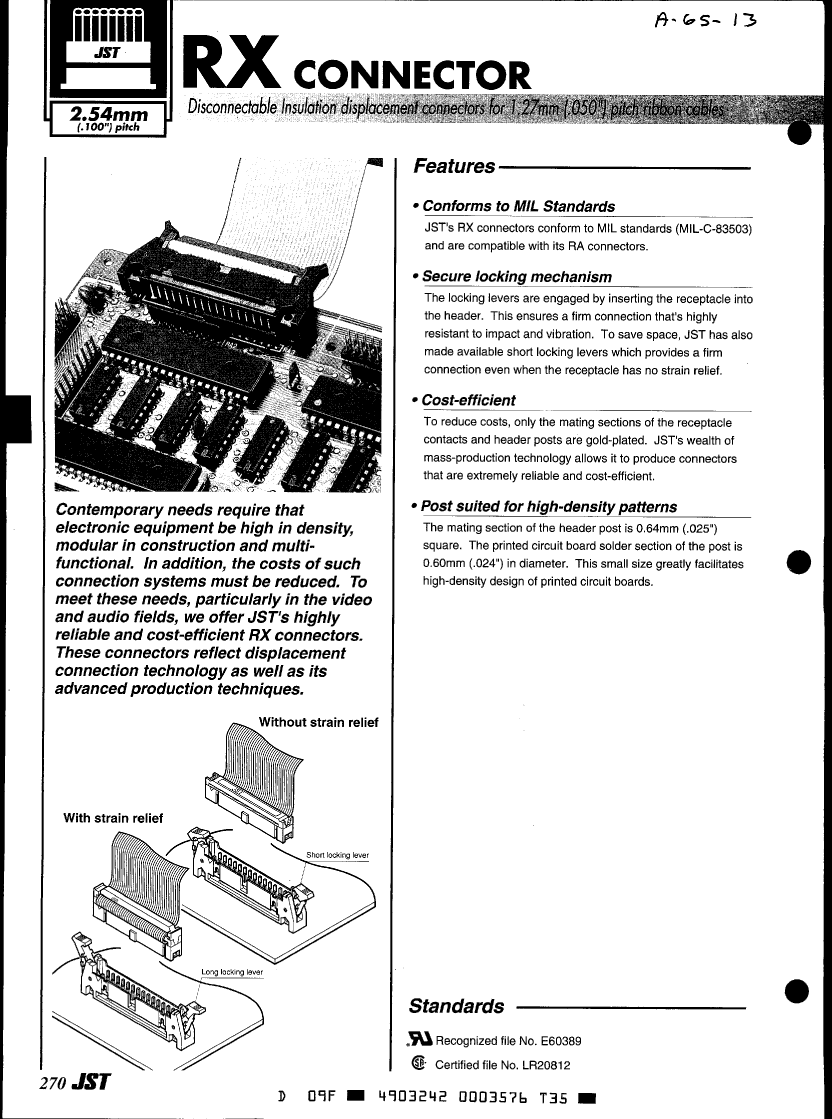

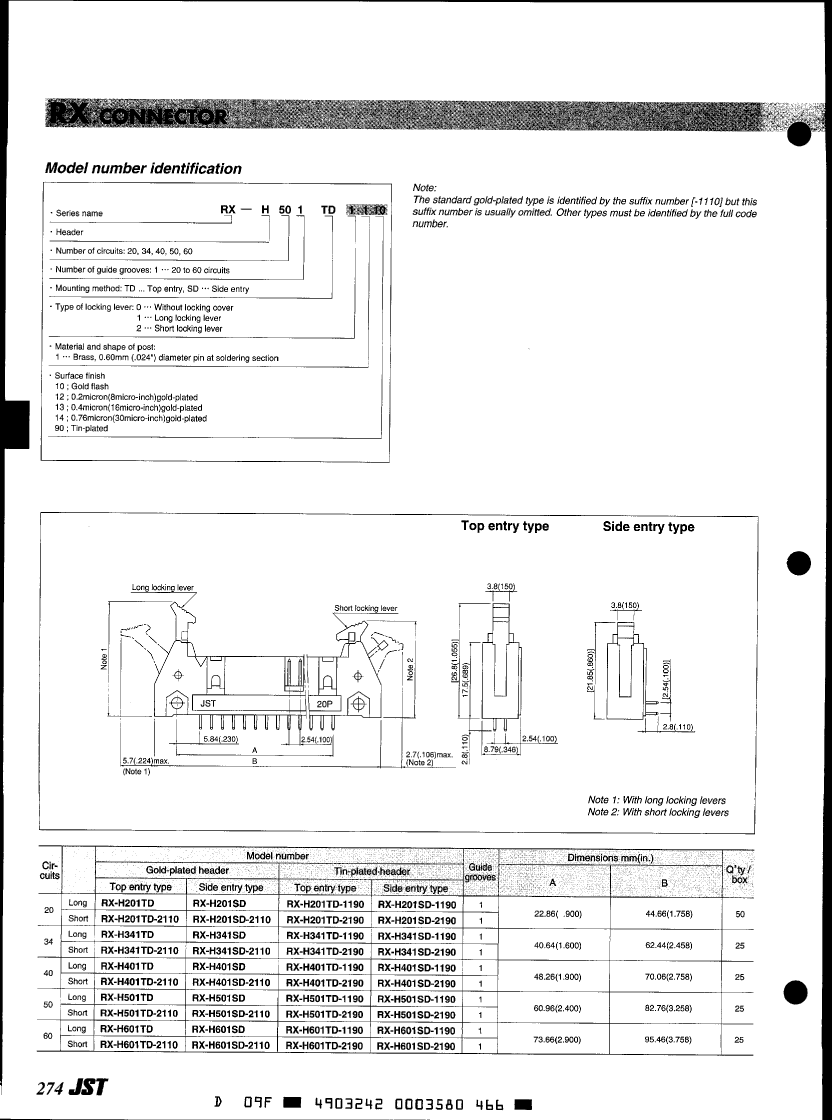

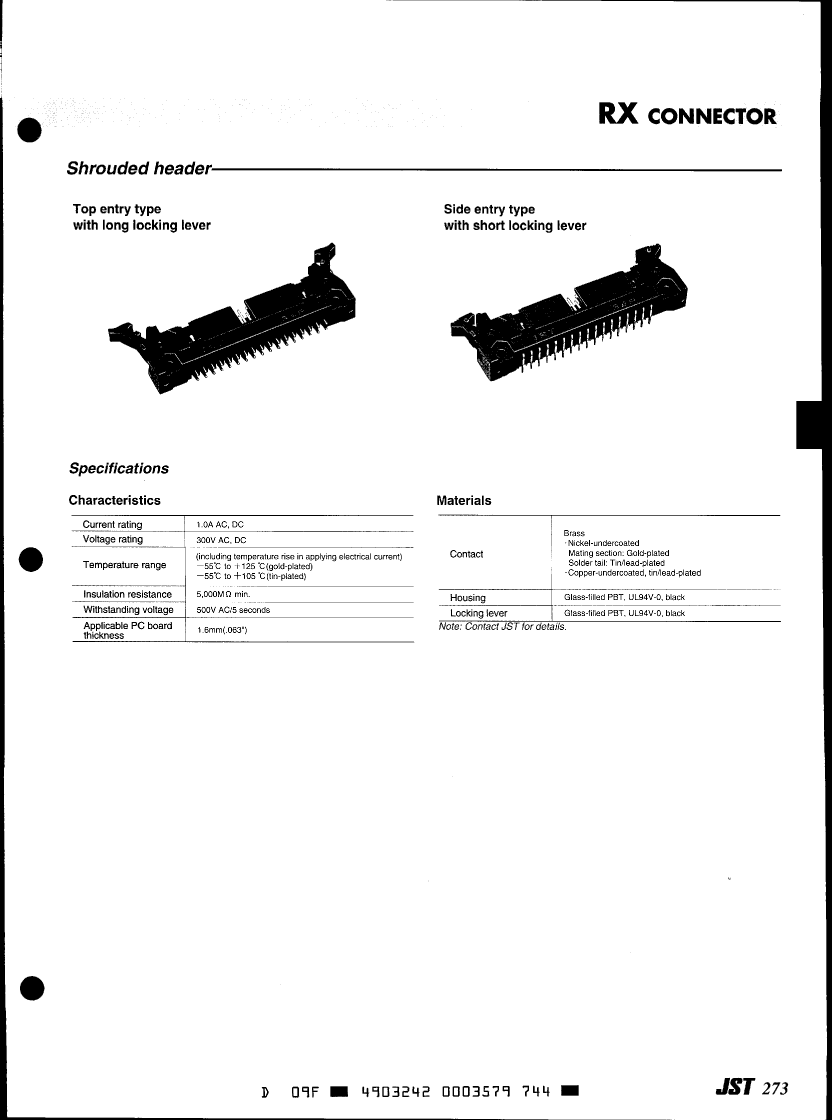

RX-H201TD-2112 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHORT LOCKING LEVER
Board mount options	HOLE .099-.111
body width	0.346 inch
subject depth	0.689 inch
body length	1.758 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Manufacturer's serial number	RX
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

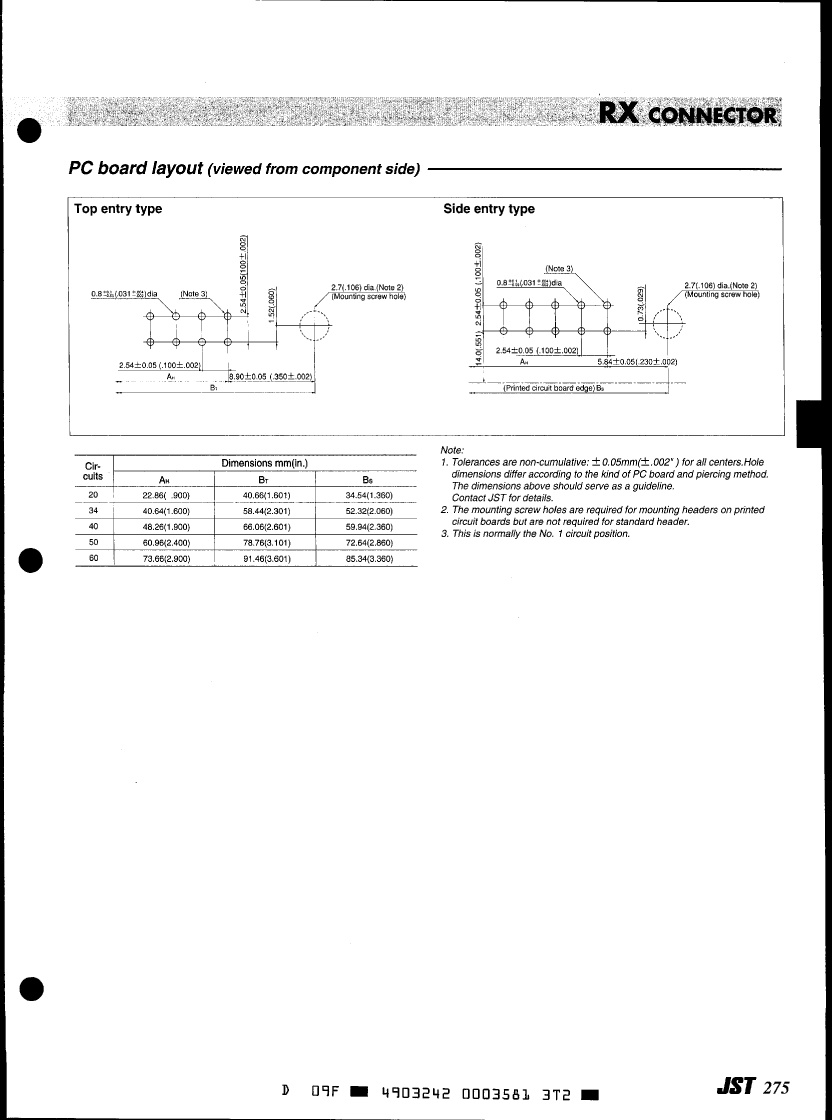

PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	8u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	MIL-C-83503
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
