P036RH12 datasheet, PDF - EEWORLD Datasheet

P036RH12: DescriptionSilicon Controlled Rectifier, 100000mA I(T), 1200V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size405KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

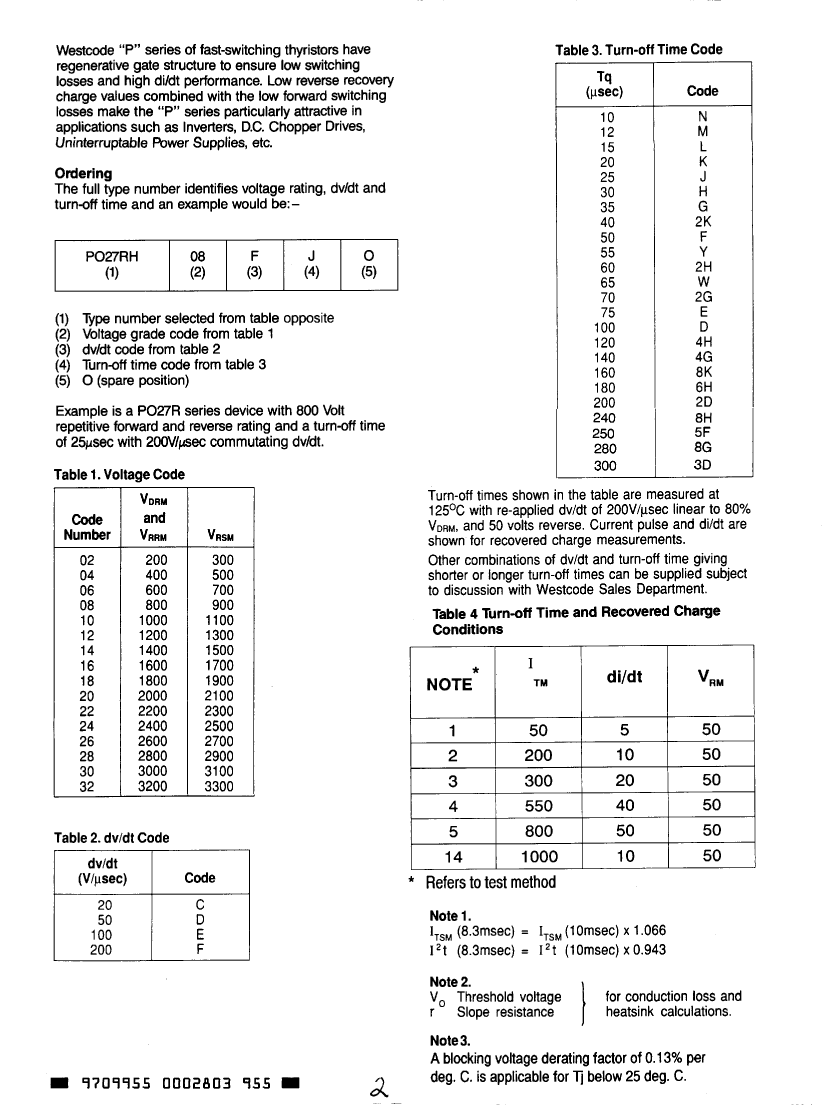

P036RH12 Overview

Silicon Controlled Rectifier, 100000mA I(T), 1200V V(DRM),

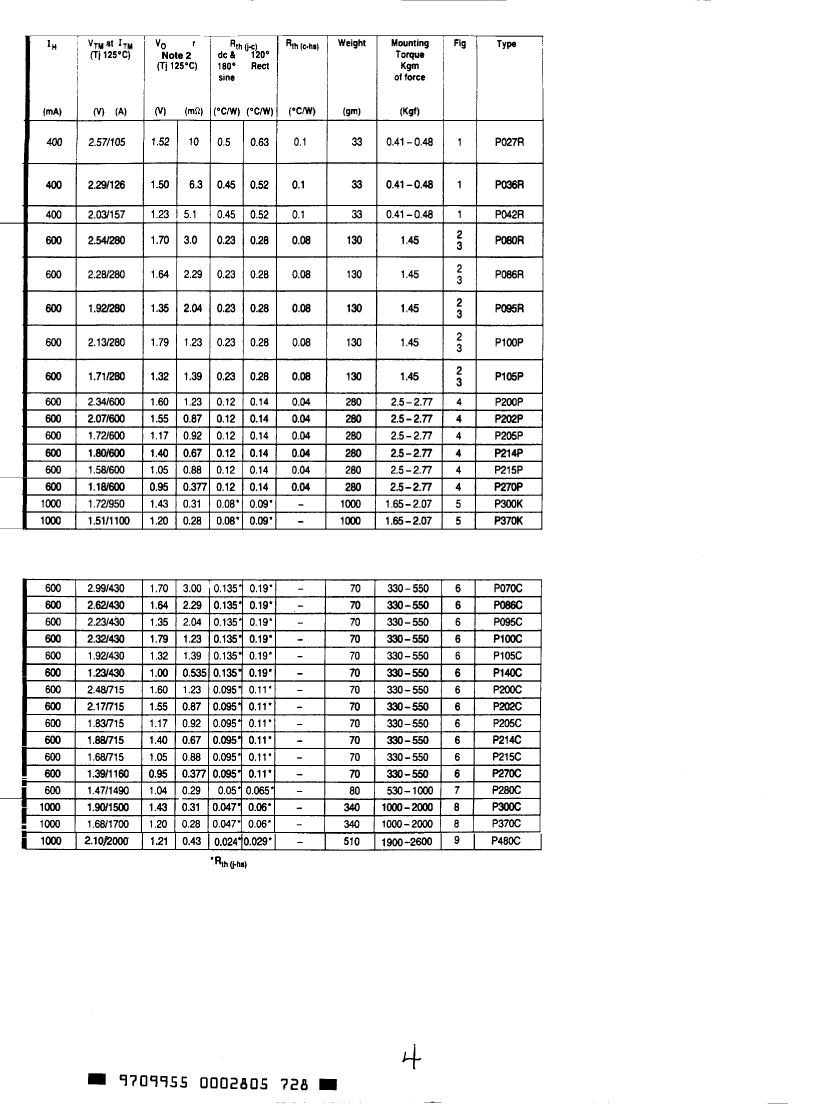

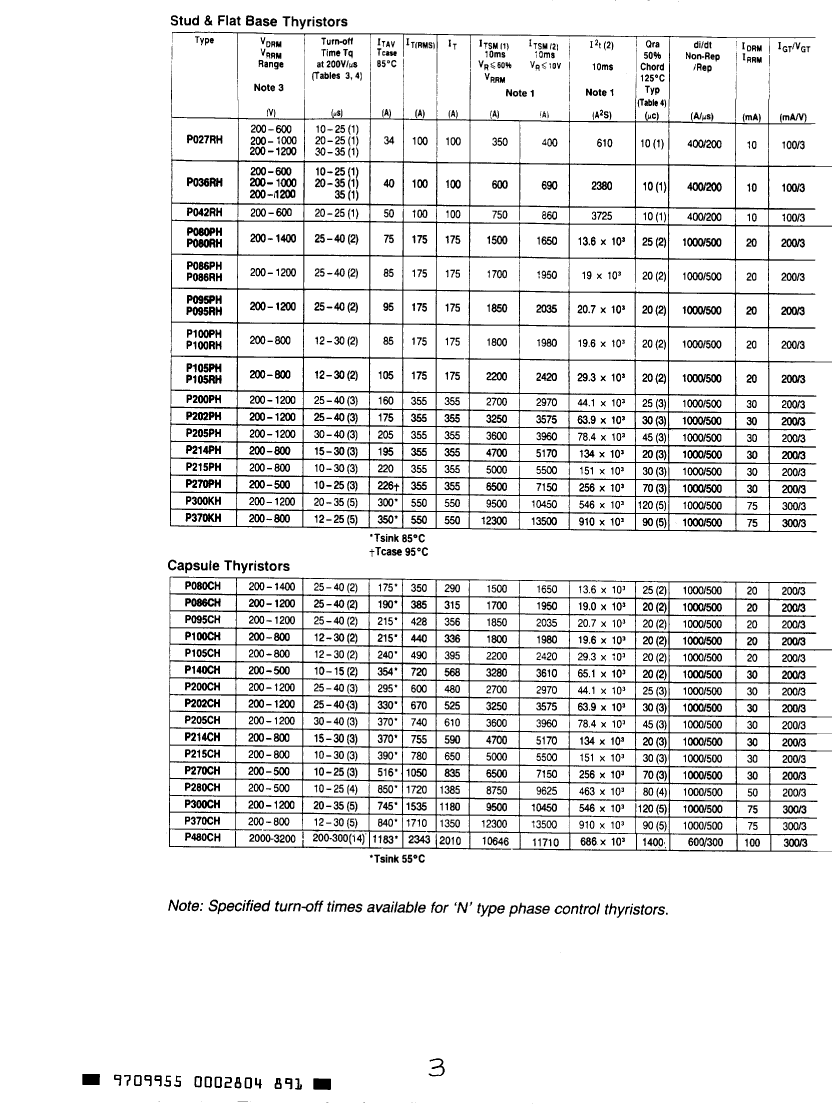

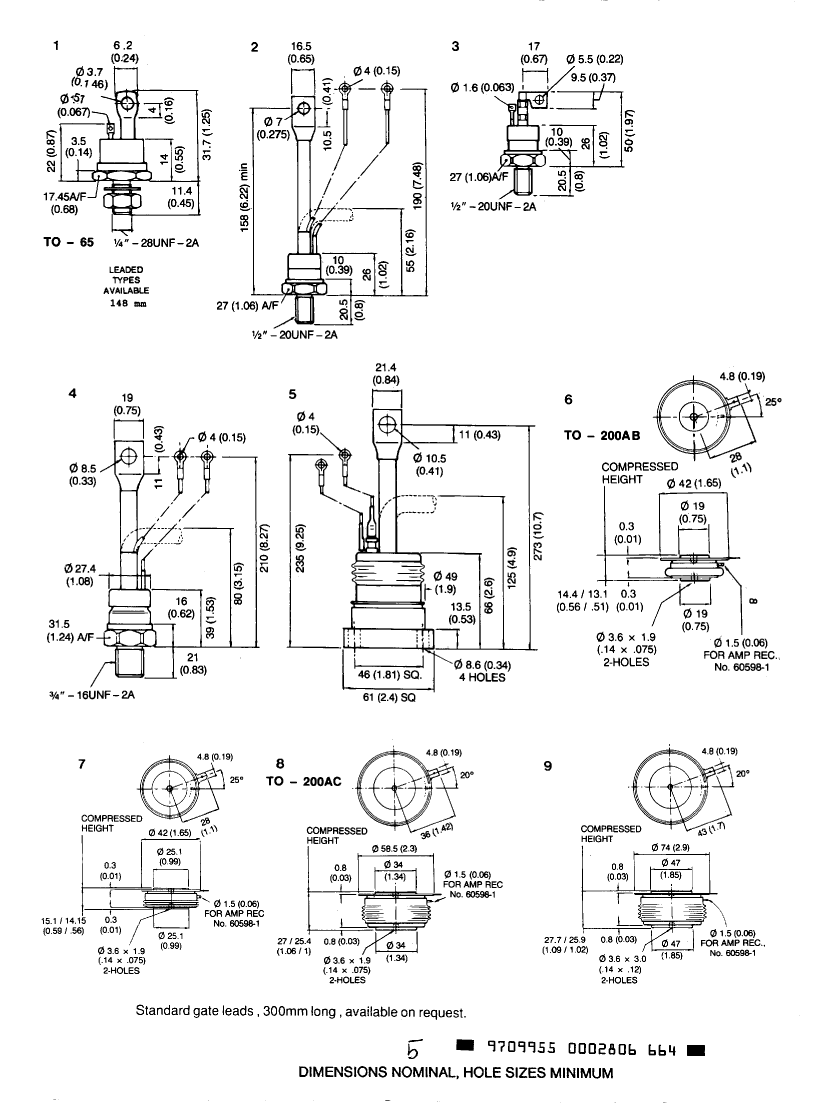

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	compliant
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	400 mA
Maximum leakage current	10 mA
On-state non-repetitive peak current	600 A
Maximum on-state voltage	2.29 V
Maximum on-state current	100000 A
Off-state repetitive peak voltage	1200 V
surface mount	NO
Trigger device type	SCR

	P036RH12	P036RH06	P202CH03FH0	P036RH08	P202CH03EG0
Description	Silicon Controlled Rectifier, 100000mA I(T), 1200V V(DRM),	Silicon Controlled Rectifier, 100000mA I(T), 600V V(DRM),	Silicon Controlled Rectifier, 525000mA I(T), 300V V(DRM),	Silicon Controlled Rectifier, 100000mA I(T), 800V V(DRM),	Silicon Controlled Rectifier, 525000mA I(T), 300V V(DRM),
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Maximum DC gate trigger current	100 mA	100 mA	200 mA	100 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V
Maximum holding current	400 mA	400 mA	600 mA	400 mA	600 mA
Maximum leakage current	10 mA	10 mA	30 mA	10 mA	30 mA
On-state non-repetitive peak current	600 A	600 A	3200 A	600 A	3200 A
Maximum on-state voltage	2.29 V	2.29 V	2.17 V	2.29 V	2.17 V
Maximum on-state current	100000 A	100000 A	525000 A	100000 A	525000 A
Off-state repetitive peak voltage	1200 V	600 V	300 V	800 V	300 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
