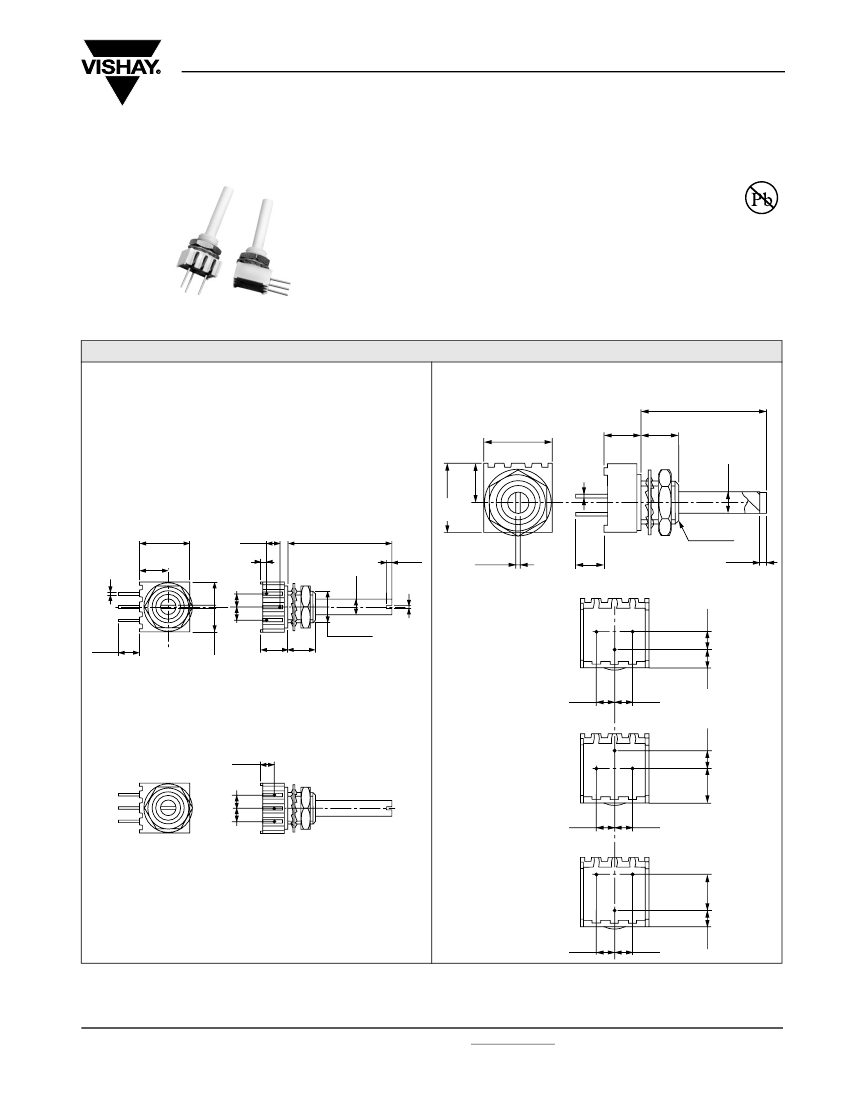

P10L
Vishay Sfernice
Long Life Potentiometer - 500 000 Cycles
Miniature - Cermet - Fully Sealed
FEATURES
•
500 000 cycles
•
Low temperature coefficient
(± 150 ppm/°C typical)
•
Plastic housing and shaft
•
Compact (3/8" square)
•
Fully sealed
RoHS
COMPLIANT
DIMENSIONS
in millimeters (inches) (± 0.5 mm)
P10L: Side Adjust
P10L: Top Adjust
AI = 20
(0.79)
AG = 16
(0.63)
9.6
(0.38)
3 x Ø 0.5
(0.02)
5.2
(0.20)
5.3
(0.21)
5.5
(0.22)
Ø3
(0.12)
P10LXX
9.7
(0.38)
3 x Ø 0.5
(0.02)
1
2
3
4 Min.
(0.16)
5.5
(0.22)
2.54
(0.10)
1.15
(0.05)
2.54
(0.10)
AI = 20
(0.79)
AG = 16
(0.63)
Ø3
(0.12)
9.7
(0.38)
M6 x 0.75
1
(0.04)
0.6
(0.02)
2.54
(0.10)
0.6
(0.02)
4 Min.
(0.16)
1
(0.04)
9.6
(0.38)
2.54
(0.10)
5.2 5.3
(0.20) (0.21)
M6 x 0.75
1
3
2
P10LYP
2.54
(0.10)
2.54
(0.10)
2.54
(0.10)
P10LXC
2.7
(0.11)
1
2
3
2.54
(0.10)
2
2.54
(0.10)
3
4.85
(0.19)
P10LYE
1
2.54
(0.10)
2.54
(0.10)
2.54
(0.10)
1
3
5.08
(0.20)
2
P10LYM
2.54
(0.10)
2.54
(0.10)
2.25
(0.09)
Document Number: 51057
Revision: 10-Dec-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
1
P10L
Vishay Sfernice
Long Life Potentiometer - 500 000 Cycles
Miniature - Cermet - Fully Sealed
ELECTRICAL SPECIFICATIONS
Resistive Element
Electrical Travel
Standard Resistance Values
Tolerance
Linear
OUTPUT VOLTAGE RATIO (%)
CERMET
250° ± 15°
1 kΩ - 5 kΩ - 10 kΩ - 50 kΩ
20 % - 10 % on request
A
100
80
60
40
20
CIRCUIT DIAGRAM
Varation Law
a
(1)
b
(2)
cw
c
(3)
A
0
0
20
40
60
80
100
% CLOCKWISE SHAFT ROTATION
LIN. LAW “A”
0.1
Power Rating
0.1 W at 70 °C
POWER IN W
0
0
20
40
60 70 80
100
120 140
AMBIENT TEMPERATURE IN °C
Resistance
Value
(kΩ)
Standard Resistance Element Data
1
5
10
50
Max. Power
at 70 °C
(W)
0.1
0.1
0.1
0.1
Max. Working
Voltage
(V)
10
22.3
31.6
70.7
Temperature Coefficient (Typical)
Limiting Element Voltage
Contact Resistance Variation
End Resistance (Typical)
Dielectric Strength (RMS)
Insulation Resistance (300 VDC)
Independent Linearity (Typical)
± 150 ppm/°C
75 V
1 % Rn or 2
Ω
1
Ω
1000 V
10
6
MΩ
±5%
www.vishay.com
2
For technical questions, contact: sfer@vishay.com
Document Number: 51057
Revision: 10-Dec-07
P10L
Long Life Potentiometer - 500 000 Cycles
Miniature - Cermet - Fully Sealed
MECHANICAL SPECIFICATIONS
Mechanical Travel
Operating Torque (Typical)
End Stop Torque
Tightening Torque of Mounting Nut
Unit Weight
Terminals
2 Ncm max.
7 Ncm max.
25 Ncm max.
1g
e3: pure Sn
290° ± 5
2.83 oz.-inch max.
9.9 oz.-inch max.
2.2 lb-inch max.
3.5 10
-2
oz.
Vishay Sfernice
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
Climatic Category
Sealing
- 40 °C to 100 °C
40/100/56
Fully sealed - Container IP67
MARKING
•
VISHAY trademark
•
Model
•
Ohmic Value code
•
Tolerance code
•
Manufacturing date code
•
Marking of terminals 3
APPLICATION NOTE
c (3)
The potentiometer shall be used in voltage divider with
an impedance load at least 100 times higher than the total
potentiometer nominal resistance value.
cw
Advised load impedance:
1 MΩ min. for resistance range of 1kΩ to 50 kΩ
(1) a
(2) b
1 MΩ min.
Document Number: 51057
Revision: 10-Dec-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
3
P10L
Vishay Sfernice
Long Life Potentiometer - 500 000 Cycles
Miniature - Cermet - Fully Sealed
PERFORMANCES
TYPICAL VALUES AND DRIFTS
TESTS
CONDITIONS
ΔR
T
/R
T
(%)
ΔR
1-2
/R
1-2
(%)
OTHER
Climatic Sequence
Phase A dry heat 100 °C
Phase B damp heat
Phase C cold - 40 °C
Phase D damp heat 5 cycles
56 days
40 °C 93 % HR
500 000 cycles at rated power
Turn angle: ± 50°
33 cycles per min
Temperature: 20 °C
1000 h at rated power
90'/30'
Ambient temperature 70 °C
5 cycles
- 40 °C at 100 °C
50 g at 11 ms
3 successive shocks
in 3 directions
10 - 55 Hz
0.75 mm or 10 g
in 3 directions
±1%
±2%
-
Long Term Damp Heat
±1%
±2%
Insulation resistance
> 10
4
MΩ
Contact resistance
variation max. 35 %
Independent linearity
± 20 %
Contact resistance
variation max. 30 %
Rotational Life
± 20 %
-
Load Life
± 20 %
± 20 %
Rapid Temperature Change
±1%
<±2%
-
Shock
± 0.5 %
±1%
-
Vibration
± 0.5 %
<±1%
-
SAP ORDERING INFORMATION
(Part Number 18 digits)
P
1
0
L
X
X
A
G
1
0
2
M
B
4
MODEL
P10L
STYLE
XC
XX
YE
YM
YP
SHAFT
AG = Ø 3 - 16 mm
Al = Ø 3 - 20 mm
RESISTANCE
CODE
102 = 1 kΩ
502 = 5 kΩ
103 = 10 kΩ
503 = 50 kΩ
TOLERANCE
CODE
M = 20 %
On request
K = 10 %
PACKAGING CODE
B4 = Box 100 pieces
SPECIAL
NUMBER
(if applicable)
Given by
VISHAY
for custom
design
PART NUMBER DESCRIPTION
(for information only)
P10L
MODEL
XX
STYLE
AG
SHAFT
1K
VALUE
20
%
TOLERANCE
SPECIAL
BO100
PACKAGING
e3
LEAD
(Pb)-FREE
www.vishay.com
4
For technical questions, contact: sfer@vishay.com
Document Number: 51057
Revision: 10-Dec-07
Legal Disclaimer Notice
Vishay
Disclaimer
All product specifications and data are subject to change without notice.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf
(collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein
or in any other disclosure relating to any product.
Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any
information provided herein to the maximum extent permitted by law. The product specifications do not expand or
otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed
therein, which apply to these products.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Vishay.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless
otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such
applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting
from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding
products designed for such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Document Number: 91000
