SMD MOLDED HIGH CURRENT POWER INDUCTORS (SHIELDED)
MCS0420 Series
A. Electrical Specifications
P/N
MCS0420-R47MN2
MCS0420-1R0MN2
MCS0420-1R5MN2
MCS0420-2R2MN2
MCS0420-3R3MN2
MCS0420-4R7MN2
MCS0420-6R8MN2
L
(uH)
0.47
1.0
1.5
2.2
3.3
4.7
6.8
Tol.
M
M
M
M
M
M
M
Mark
R47
1R0
1R5
2R2
3R3
4R7
6R8
Test Freq.
(KHz)
100
100
100
100
100
100
100
DCR
Typ.
(mΩ)
12.5
24.0
38.0
52.0
74.0
92.0
162.0
DCR
Max.
(mΩ)
14.0
27.0
46.0
58.0
87.0
105.0
178.0
I sat.
Typ.
(A)
9.5
7.0
6.0
5.0
4.0
3.0
2.1
I rated
Typ.
(A)
7.0
4.5
4.0
3.0
2.5
2.2
2.0

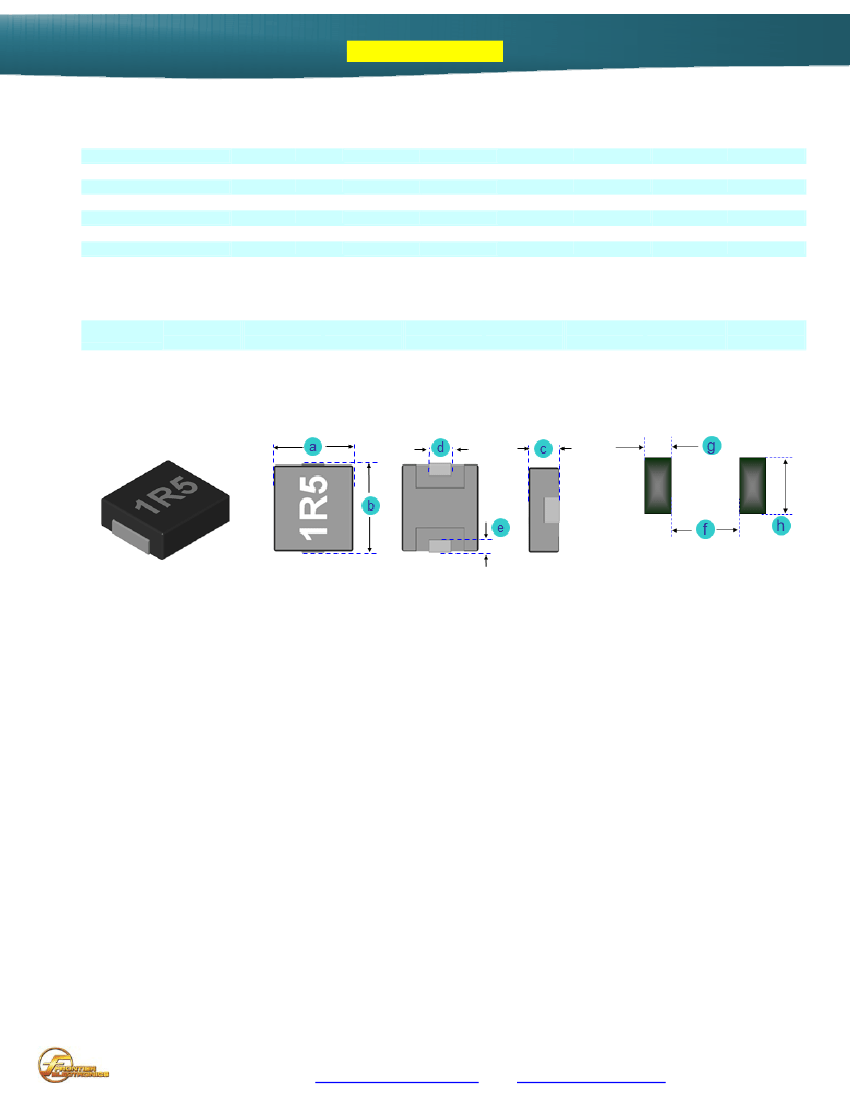

B. Dimensions mm (Inch)
Series
MCS0420
Tol.
a
4.45
(0.175)
±0.25
(0.010)
b
4.0
(0.157)
±0.3
(0.012)
c
1.8
(0.071)
±0.2
(0.008)
d
1.5
(0.059)
±0.3
(0.012)
e
0.8
(0.031)
±0.3
(0.012)
f
2.2
(0.087)
Typ.
g
1.5
(0.059)
Typ.
h
2.5
(0.098)
Typ.
Foot Print
C. General Information
1.
2.
3.
4.
5.
6.
7.
8.
P/N: MCS0420-XXXMN2, “MCS0420” = Type, “XXX” = Inductance, “M” = Tolerance: M: ± 20%, “N2” = Internal control
code
Magnetically shielded
High saturation current
Operating temperature: -55C to +125ºC
All test data is referenced to 25ºC ambient.
Rated current (A) that will cause an approximate ∆T of 40ºC.
I sat (A) that will cause Lo to drop approximately 30%.
The part temperature (ambient + temp. rise) should not exceed 125ºC under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature part
temperature should be verified in the end application.
Test Instrument: Chroma16502, Chroma11300.
Inductance and Current Range: From 0.47 uH (7.0 A) to 6.80 uH (2.0 A)
Unspecified values available on request.
Parts meet “RoHS
+ H. F.”
requirements.
MSL: Level 1.
9.
10.
11.
12.
13.
Frontier Electronics Corp.
®
667 E. Cochran Street, Simi Valley, CA 93065 Tel: (805) 522-9998 Fax: (805) 522-9989
E-mail:
frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD MOLDED HIGH CURRENT POWER INDUCTORS (SHIELDED)
MCS0420 Series
D. Applications
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD.

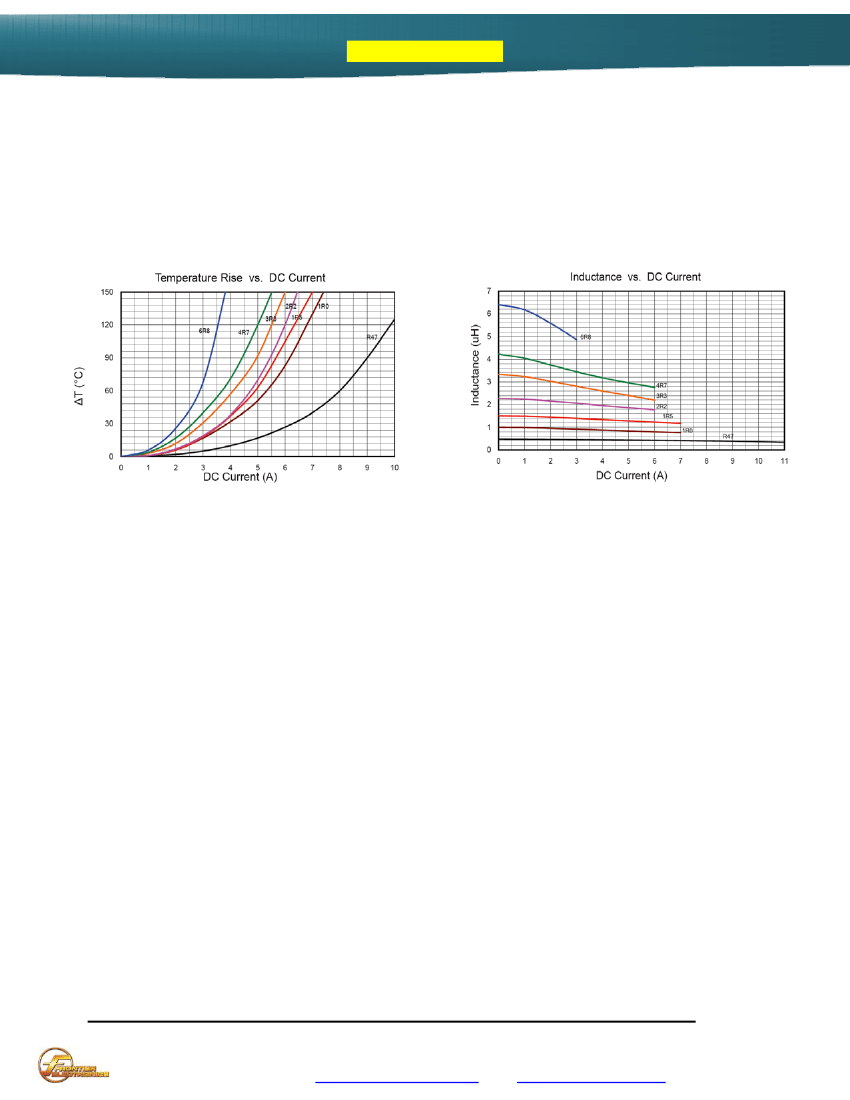

E. Characteristic Curve
F. Supplementary Information
1.
2.
Packaging Information (See Appendix A)
Solder Profile (See Appendix B)
We can produce this product to customer’s unique specifications.
Frontier Electronics Corp.
®
667 E. Cochran Street, Simi Valley, CA 93065 Tel: (805) 522-9998 Fax: (805) 522-9989
E-mail:
frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
