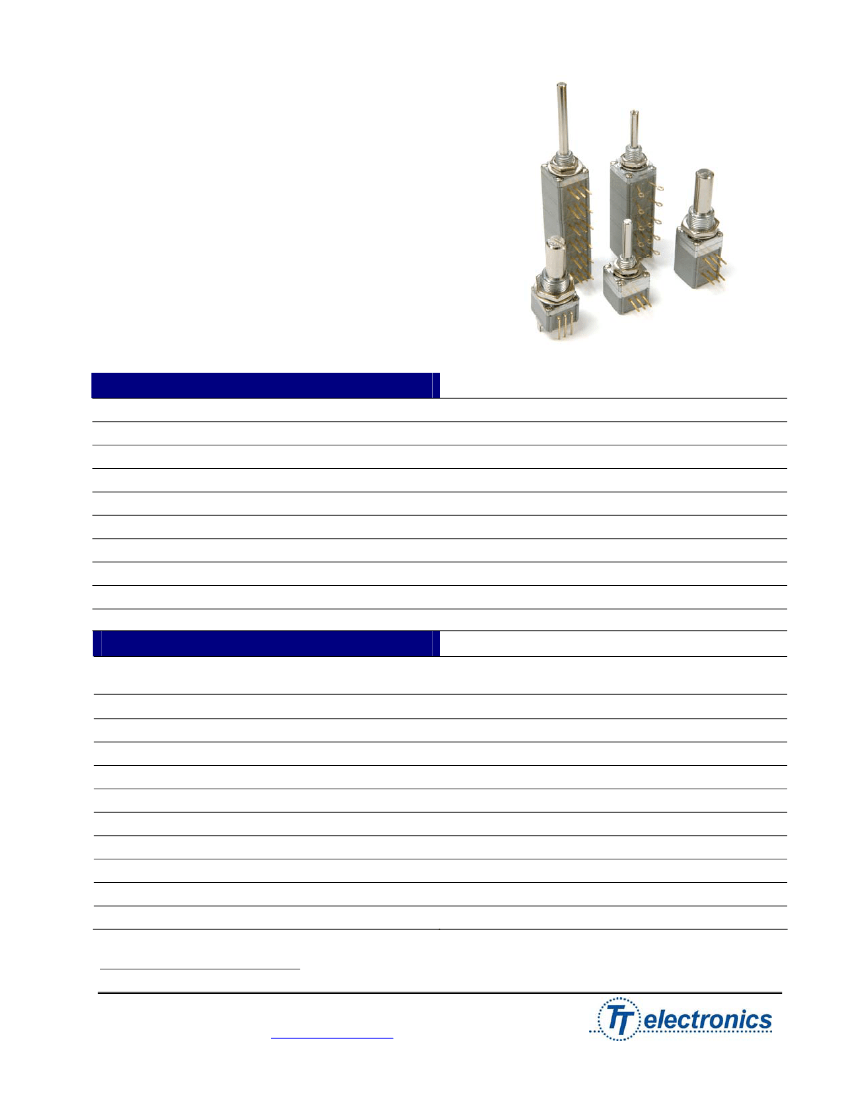

Model P260/P261
12.7mm ( ½” ) Square
Rotary Potentiometer
Sealed or Dust Proof
Conductive Plastic Element
1,000,000 Cycle Life
Rotary Switch Option
Detent Option
Multiple Gangs available
Wire Lead Options
RoHS Compliant
MODEL STYLES
Side Adjust, PCB Leads, Potentiometer Module (Up to 6 gangs)
Side Adjust, PCB Leads, with Rotary Switch Module (Up to 5 gangs)
Side Adjust, PCB Leads, with Detent Module (Up to 6 gangs)
Top Adjust, PCB Leads, Potentiometer Module (Up to 2 gangs)
Potentiometer Module with Wire Leads (Up to 6 gangs)
Potentiometer Module with Ribbon Cable (Up to 6 gangs)
Side Adjust, Solder Lug Leads, Potentiometer Module (Up to 6 gangs)
Side Adjust, Solder Lug Leads, with Rotary Switch Module (Up to 5 gangs)
Side Adjust, Solder Lug Leads, with Detent Module (Up to 6 gangs)
P260P
P260S
P260D
P260T
P260L
P260R
P261P
P261S
P261D
ELECTRICAL
1
Resistance Range, Ohms
Standard Resistance Tolerance
Residual Resistance, Maximum
Input Voltage, Maximum
Power rating, Watts
Dielectric Strength
Insulation Resistance, Minimum
Gang Error (Multi-ganged), Maximum
Actual Electrical Travel, Nominal
Switch Contact Resistance, Maximum
Switch Power Rated
500 -1M (for “B” taper)
2K-1M (for other tapers)
±
10%
2 ohms
350 Vac
0.5W- B taper, 0.25W- others
1,500Vac, sea level
1,000 Megohms
+/-3 dB (-40 dB to 0dB)
265°
150 milliohms max.
0.5A at 30Vdc
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 14, 2011
Website:
www.bitechnologies.com
page 1 of 7
BI technologies
Model P260/P261
MECHANICAL
Total Mechanical Travel
Static Stop Strength
Rotational Torque, Maximum
Switch Detent, Minimum
295°± 10°
40 oz-in
1.5 oz-in ( 0.5 oz-in each additional gang)
2.0 oz-in
ENVIRONMENTAL
Operating Temperature Range
Rotational Life
IP Rating
-55°C to +125°C
1,000,000 cycles
Sealed = IP66
Dust Proof = IP50
ORDERING INFORMATION
2
P260P/P261P – POTENTIOMETER MODULE
P260 P - D 2 A F 1 C B 100K
Model Series
Style
Seal Type
S = Sealed
D = Dust Proof
Number of Gangs
(Up to 6)
Bushing & Shaft Combinations
See below
Tapers
A = Audio
B = Linear
C = Reverse Audio
Full CCW Shaft Position See below
Shaft Length “L” See Code below
Shaft Type See below
Total Resistance
P260S/P261S – WITH ROTARY SWITCH MODULE
P260 S - D 2 A F 1 C B 100K
Model Series
Style
Seal Type
S = Sealed
D = Dust Proof
Number of Gangs
(Up to 5)
Bushing & Shaft Combinations
See below
2
Total Resistance
Tapers
A = Audio
B = Linear
C = Reverse Audio
Full CCW Shaft Position See below
Shaft Length “L” See Code below
Shaft Type See below
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 14, 2011
Website:
www.bitechnologies.com
page 2 of 7
BI technologies
Model P260/P261

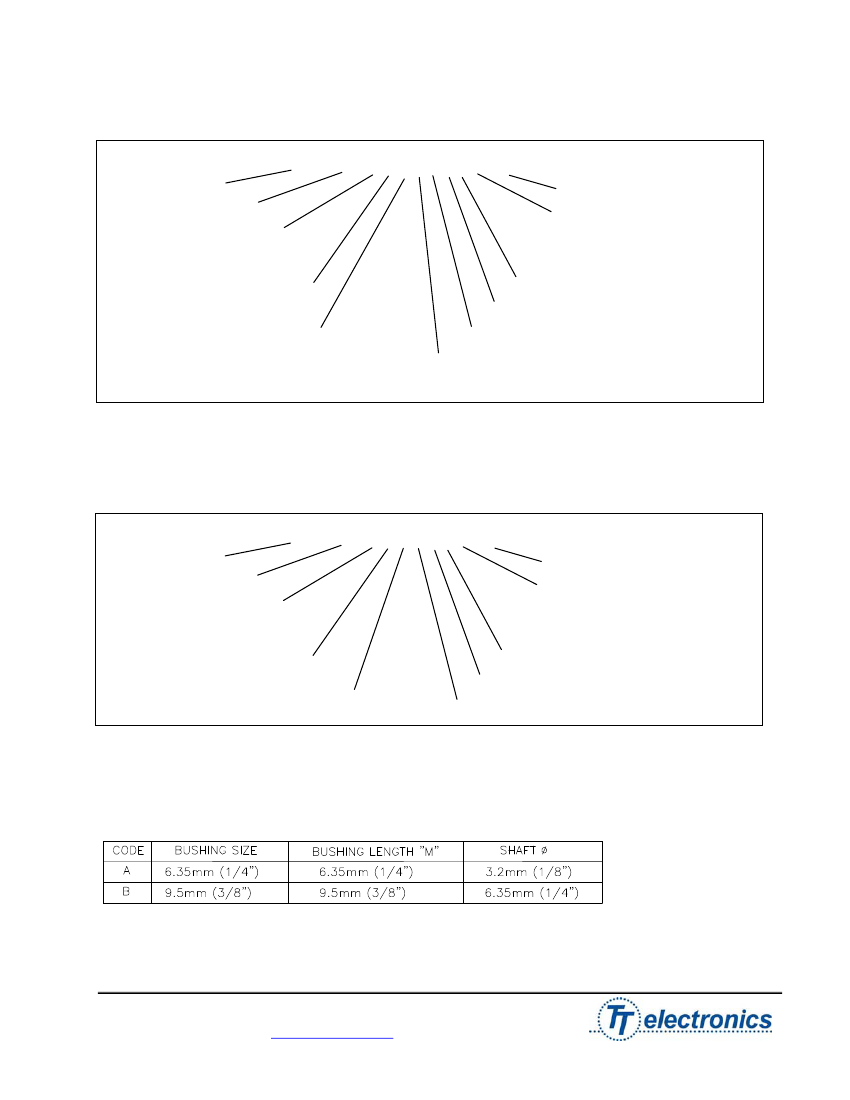

P260D/P261D – WITH DETENT MODULE
P260 D - D 2 1 A F 1 C B 100K
Model Series
Style
Seal Type
S = Sealed
D = Dust Proof
Number of Gangs
(Up to 6)
Detent
1 = Center Detent
2 = 11 Detents
3 = 21 Detents
Tapers
A = Audio
B = Linear
C = Reverse Audio
Full CCW Shaft Position See below
Shaft Length “L” See Code below
Shaft Type See below
Bushing & Shaft Combinations
See below
Total Resistance
P260T – TOP ADJUST, POTENTIOMETER MODULE
P260 T - D 2 A F 1 C B 100K
Model Series
Style
Seal Type
S = Sealed
D = Dust Proof
Number of Gangs
(Up to 2)
Bushing & Shaft Combinations
See below
Tapers
A = Audio
B = Linear
C = Reverse Audio
Full CCW Shaft Position See below
Shaft Length “L” See Code below
Shaft Type See below
Total Resistance
Bushing & Shaft Combinations
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 14, 2011
Website:
www.bitechnologies.com
page 3 of 7
BI technologies
Model P260/P261

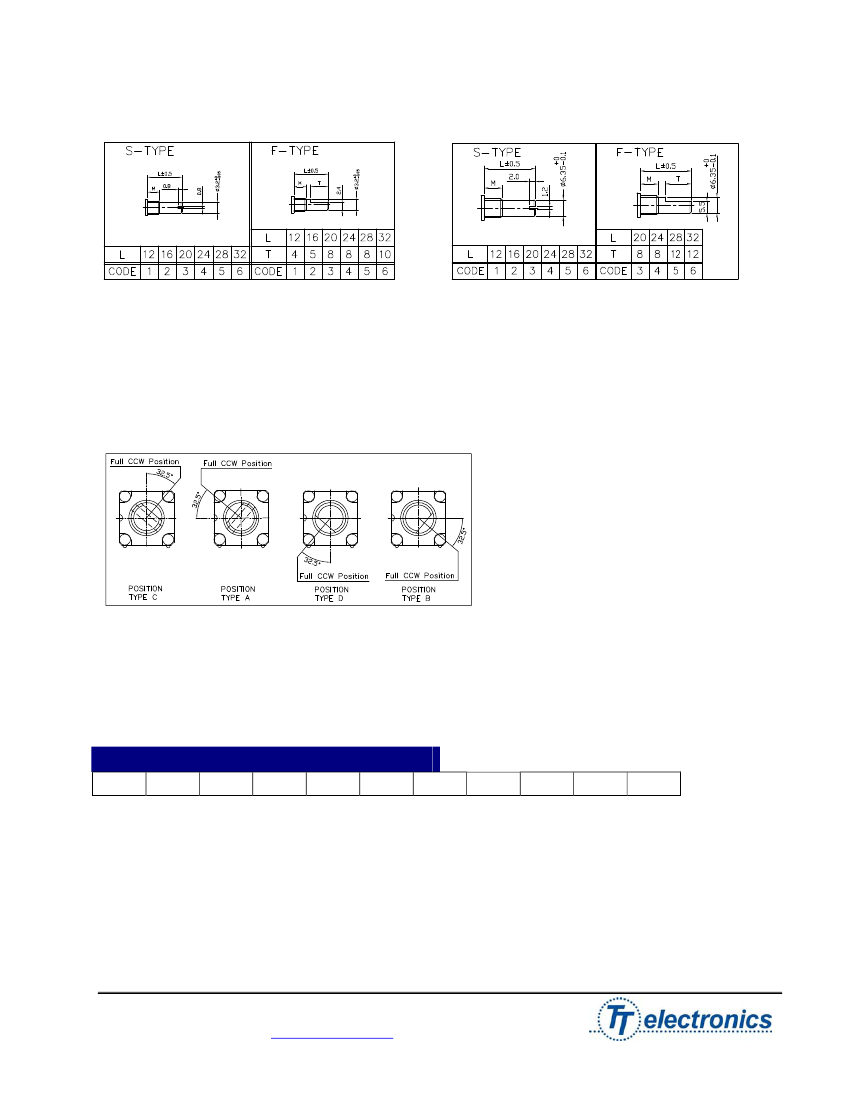

Shaft Type and Shaft Length “L” Code
For 3.2mm (1/8”)
Shaft Type and Shaft Length “L” Code
For 6.35mm (1/4”)
Shaft Position
(F-Type Shaft)
Dashed lines on Type “C” and Type “A” shows position of adjustment slot for S-Type
STANDARD RESISTANCE VALUES, OHMS
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1MEG
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 14, 2011
Website:
www.bitechnologies.com
page 4 of 7
BI technologies
Model P260/P261

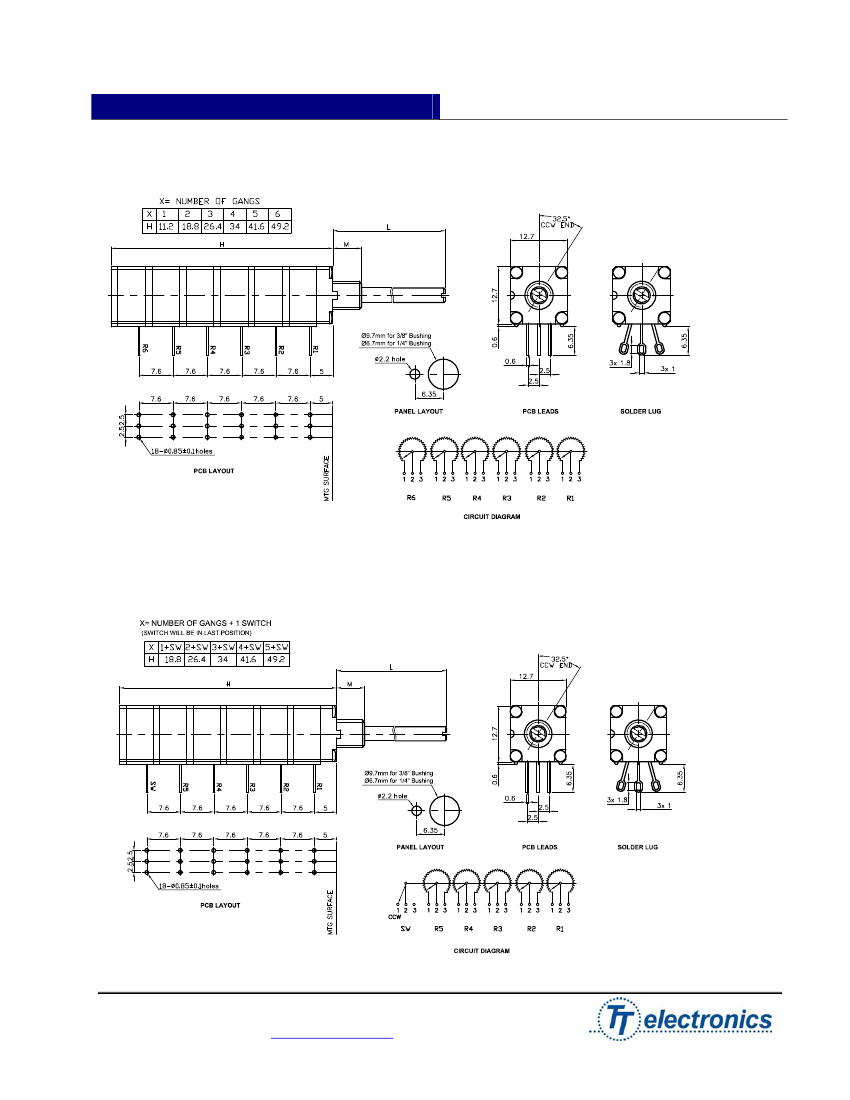

OUTLINE DRAWING
P260P/P261P – POTENTIOMETER MODULE
P260S/P261S – WITH ROTARY SWITCH MODULE
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 14, 2011
Website:
www.bitechnologies.com
page 5 of 7
BI technologies
