845-A026P-ALB00 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 845-A026P-ALB00

845-A026P-ALB00: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size233KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

845-A026P-ALB00 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

845-A026P-ALB00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.335 inch
subject depth	0.508 inch
body length	1.356 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	845
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	CENTER
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26

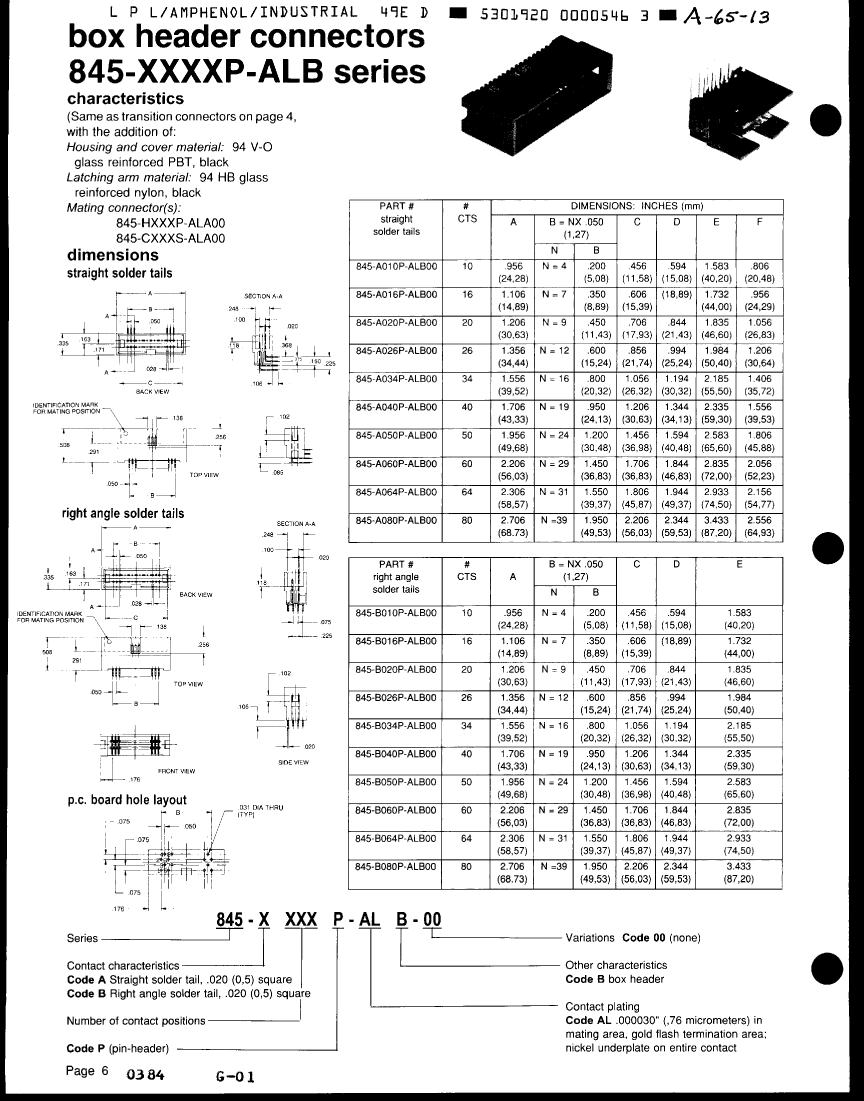

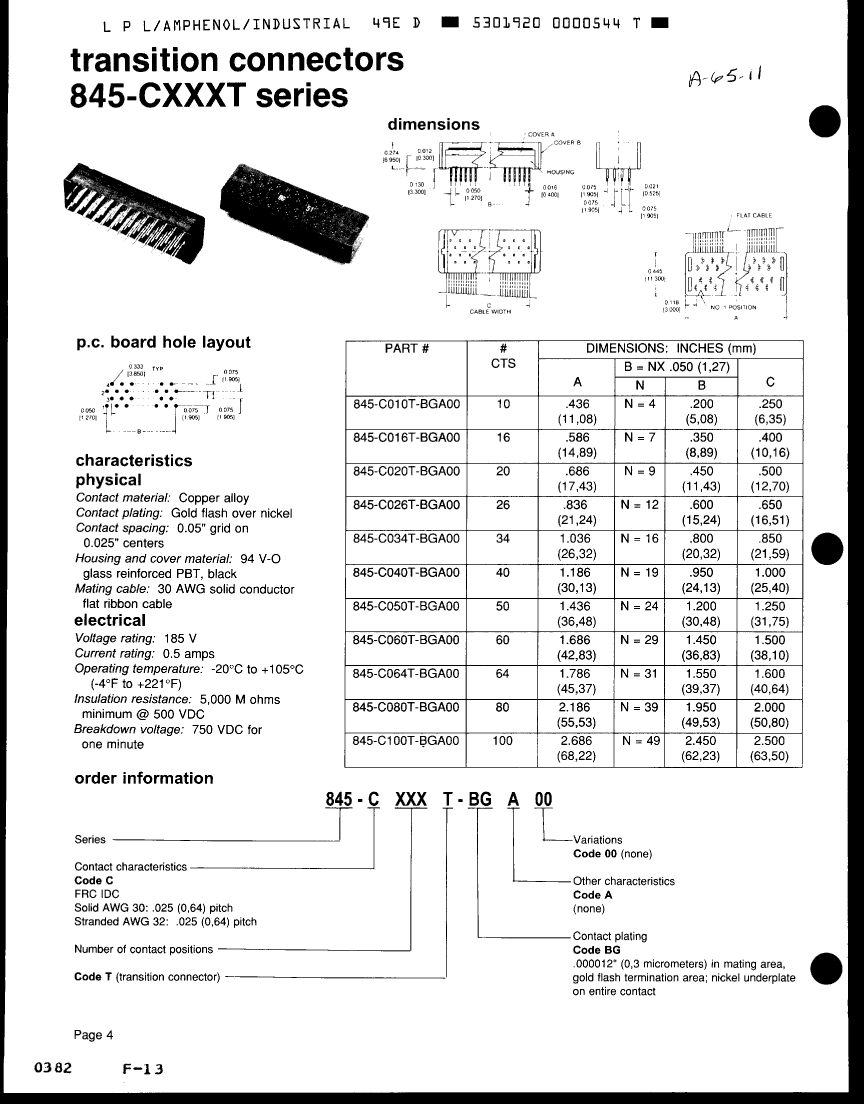

Preview

Download Datasheet

View All

845-A026P-ALB00 Related Products

	845-A026P-ALB00	355203K00	355204K00	355205K00	355206K00	355207K00	355209K00	845-A080P-ALB00	845-A034P-ALB00
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.335 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.335 inch	0.335 inch
subject depth	0.508 inch	0.602 inch	0.602 inch	0.602 inch	0.602 inch	0.602 inch	0.602 inch	0.508 inch	0.508 inch
body length	1.356 inch	0.657 inch	0.854 inch	1.051 inch	1.248 inch	1.445 inch	1.839 inch	2.706 inch	1.556 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VDC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	500VDC V	500VDC V
Insulation resistance	5000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	845	3552	3552	3552	3552	3552	3552	845	845
Plug contact pitch	0.05 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	2	2	2	2	2	2	4	4
Number of rows loaded	2	1	1	1	1	1	1	2	2
Maximum operating temperature	105 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-20 °C	-20 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	3.7592 mm	3.7592 mm	3.7592 mm	3.7592 mm	3.7592 mm	3.7592 mm	1.905 mm	1.905 mm
Plating thickness	30u inch	197u inch	197u inch	197u inch	197u inch	197u inch	197u inch	30u inch	30u inch
polarization key	CENTER	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	CENTER	CENTER
Guideline	UL	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.106 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.106 inch	0.106 inch
Terminal pitch	2.54 mm	10.0076 mm	10.0076 mm	10.0076 mm	10.0076 mm	10.0076 mm	10.0076 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	3	4	5	6	7	9	80	34
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	-
Board mount options	-	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	-	-
Installation option 1	-	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	-	-
Installation option 2	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	-
