P4221-FP192: DescriptionIncremental Encoders; File Size28KB，2 Pages; ManufacturerETC1

Download Datasheet View All

P4221-FP192 Overview

Incremental Encoders

Preview

Download Datasheet

View All

Hercules Encoders

Programmable

Incremental Encoders

Select PPR’s

Choice of 5 PPR’s

Select Pulse Width

10µSecs, 30µSecs or Square Wave

Select Channels

•Single or quadrature channels

•Count with up/down direction

•Up count channel and down count channel

Function Selection Switches

SW1

SW2

SW3

SW4

SW5 on bottom

One Encoder Can Provide Over

20 Model Variations...

Select Pulse Width

Select PPR’s

Select Channels

SW1

SW2

SW3

SW4

SW5 on bottom

Simply remove the bottom panel and set

the switches for the functions desired.

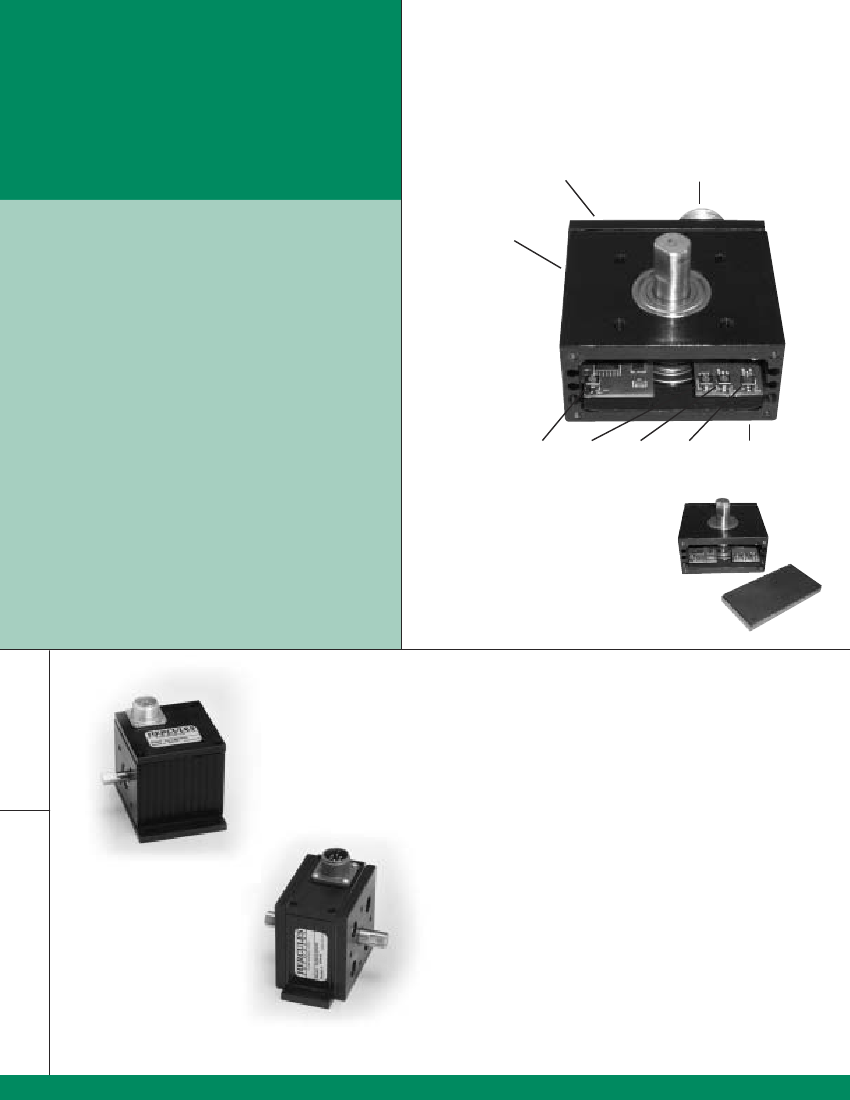

Series 4000 and 6000 Programmable Encoders

Standard Features

• 4000 Series - Space-Saving Enclosure, 1-1/2"D x 3"H x 3"W,

25 to 4096 PPR.

• 6000 Series - Internal Space for 3 Separate Encoders, 25 to

4096 PPR.

• Built-In Anti-Jitter Circuitry.

• Operating Voltage Flexibility - 8 to 28Vdc, 5Vdc with TTL

Outputs and Line Drivers, etc.

• Low Supply Current Requirements - Only 50 Milliamperes

per Encoder

• Extra Heavy Duty 1/2"D Shafts - Optional

H e r c u l e s

6000 Series

4000 Series

For the latest specifications visit our website

www.herculesencoders.com
