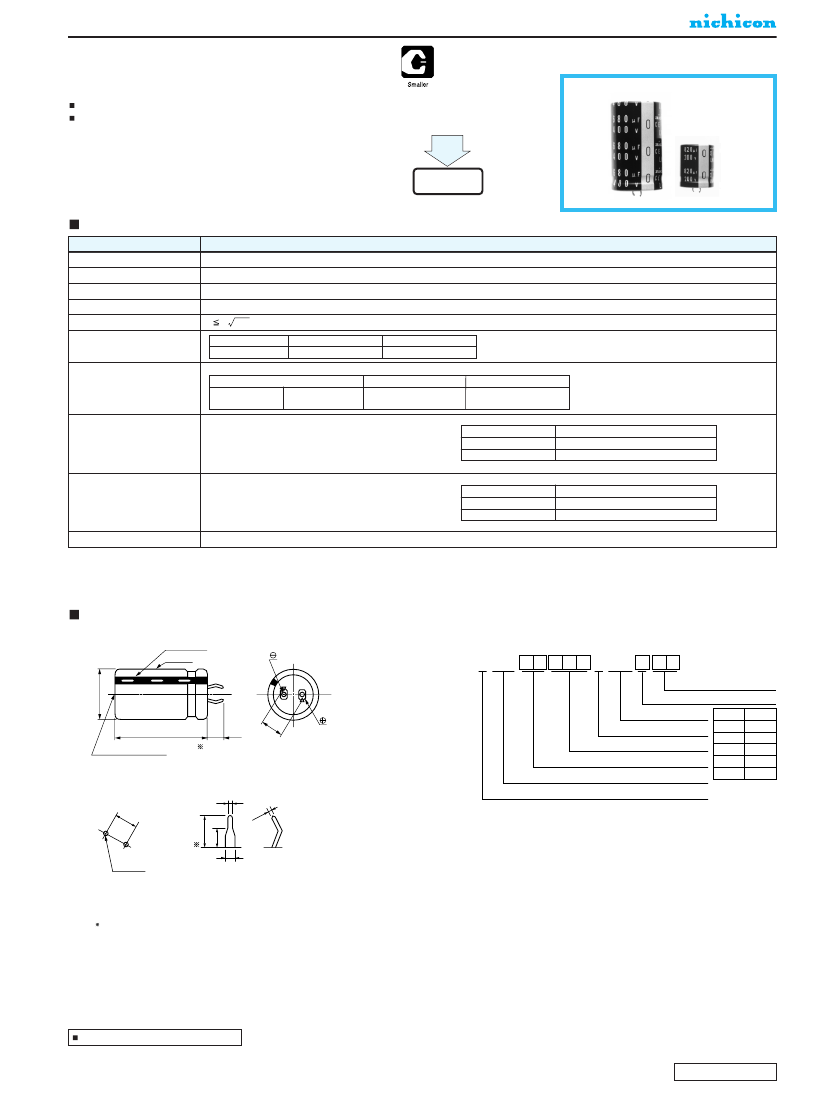

ALUMINUM ELECTROLYTIC CAPACITORS
LN
Snap-in Terminal Type, Ultra-Smaller-Sized
series
Withstanding 2000 hours application of ripple current at 85°C.
One rank smaller case sized than LS series.
LS
Smaller
LN
Specifications
Item
Performance Characteristics
Category Temperaturer Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
—40~+85°C(160~250V), —25~+85°C(400~450V)
160~450V
68~3900µF
±20% at 120Hz, 20°C
I
3 CV
(µA) (After 5 minutes' application of rated voltage)[C : Rated Capacitance (µF) V : Voltage(V)]
Rated voltage(V)
tan
δ(MAX.)
160~400
0.15
450
0.20
160~250
4
Measurement frequency : 120Hz, Temperature : 20°C
Stability at Low Temperature
Rated voltage(V)
350~450
8
Measurement frequency : 120Hz
Temperature:20
°C
Impedance ratio
ZT/Z20(MAX.)
Z—25°C/ Z+20°C
Endurance
After an application of DC voltage (in the range of rated
DC voltage even after over-lapping the specified ripple
current) for 2000 hours at 85°C, capacitors meet the
characteristic requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
After leaving capacitors under no load at 85°C
for 1000 hours, they meet the characteristic
requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of initial value
200% or less of initial specified value
Initial specified value or less
Marking
Printed with white color letter on black sleeve.
Drawing
Polarity bar
Sleeve
Type numbering system ( Example:400V 180
µ
F)
1
2
3
4
5
6
7
8
9 10 11 12
13 14
L L N 2 G 1 8 1 MH L A 3 0
Case length code
Case dia.code
φD
20
22
25
30
35
φD
+1MAX.
10
L±
2
Configuration
Capacitance tolerane (±20%)
Rated Capacitance (180µF)
Rated voltage (400V)
Series name
Pressure relief vent
4.0±0.5
Code
Y
Z
A
B
C
0.8
4.0±0.5
+0.2
-0.1
10
±
0.1
0.1
0.8
-
+0
.2
Type
2-2φ±
0.1
2.5
1.5
+0.2
-0.1
(Terminal dimensions)
(PC board hole dimensions)
The other terminal is also available upon request.
Please refer to page 179 for schematic of dimensions.
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100Q-1
