820K2M1ZQJ81/UL62 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 820K2M1ZQJ81/UL62

820K2M1ZQJ81/UL62: DescriptionPushbutton Switch, DPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size190KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

820K2M1ZQJ81/UL62 Overview

Pushbutton Switch, DPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount

820K2M1ZQJ81/UL62 Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	WHITE
Actuator length	0.19 inch
Actuator material	GLASS FILLED POLYESTER
Actuator stroke	0.889 mm
Actuator type	PUSHBUTTON
Other features	RED BEZEL,BLACK CAP
Body color	RED
body height	18.8468 mm
center contact material	COIN SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Contact function	ON-(ON)
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Electrical life	60000 Cycle(s)
End contact material	COIN SILVER
Insulation resistance	200000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	800
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal length	0.172 inch
Termination type	SOLDER LUG

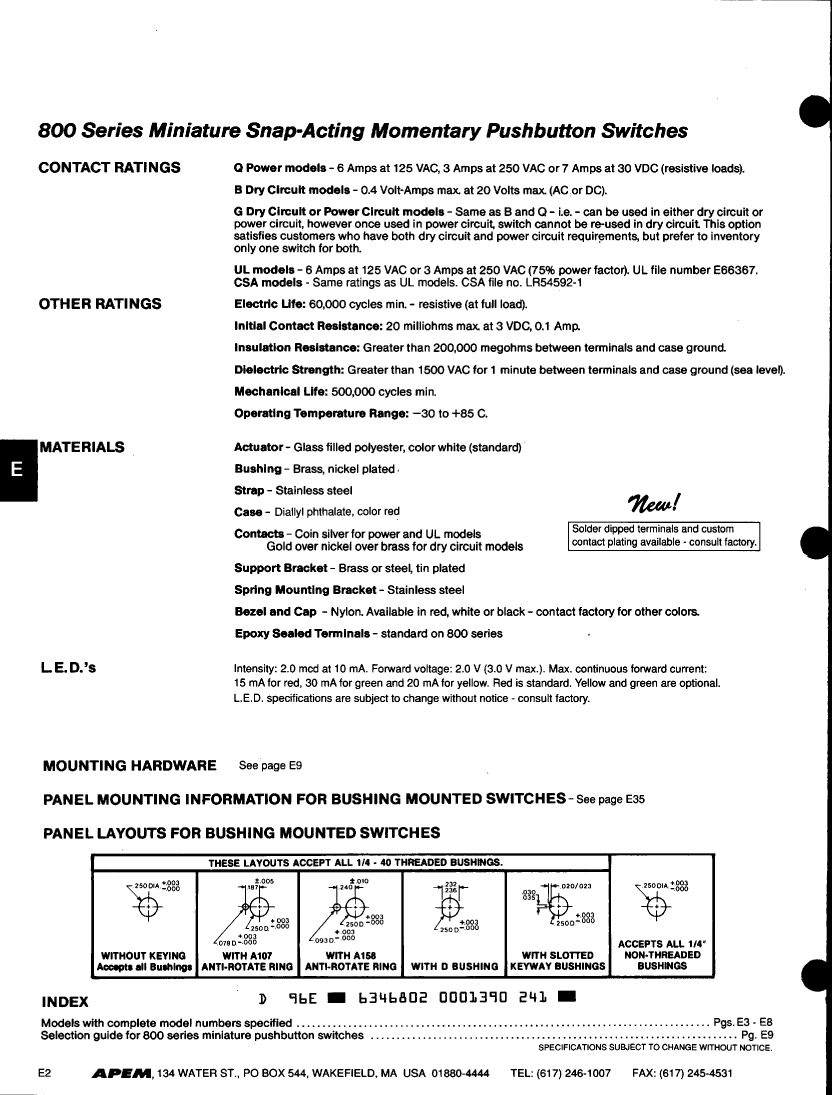

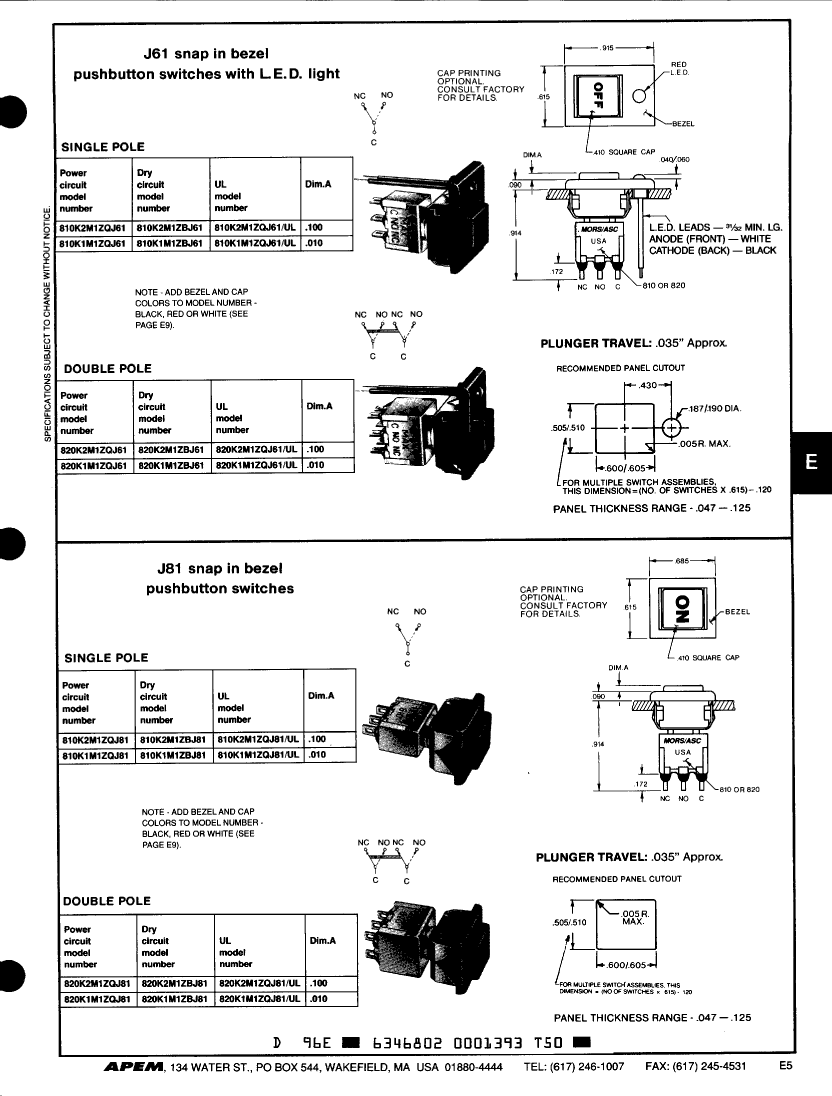

Preview

Download Datasheet

View All

820K2M1ZQJ81/UL62 Related Products

	820K2M1ZQJ81/UL62	820K2M1ZQJ8162	810K1M1ZQJ81/UL62	810K1M1ZQJ8162	810K2M1ZQJ8162	810K2M1ZQJ81/UL62
Description	Pushbutton Switch, DPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount	Pushbutton Switch, DPDT, On-(on), Momentary, 7A, 30VDC, Solder Lug Terminal, Panel Mount	Pushbutton Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount	Pushbutton Switch, SPDT, On-(on), Momentary, 7A, 30VDC, Solder Lug Terminal, Panel Mount	Pushbutton Switch, SPDT, On-(on), Momentary, 7A, 30VDC, Solder Lug Terminal, Panel Mount	Pushbutton Switch, SPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
Actuator length	0.19 inch	0.19 inch	0.1 inch	0.1 inch	0.19 inch	0.19 inch
Actuator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Actuator stroke	0.889 mm	0.889 mm	0.889 mm	0.889 mm	0.889 mm	0.889 mm
Actuator type	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON
Other features	RED BEZEL,BLACK CAP	RED BEZEL,BLACK CAP	RED BEZEL,BLACK CAP	RED BEZEL,BLACK CAP	RED BEZEL,BLACK CAP	RED BEZEL,BLACK CAP
Body color	RED	RED	RED	RED	RED	RED
body height	18.8468 mm	18.8468 mm	18.8468 mm	18.8468 mm	18.8468 mm	18.8468 mm
center contact material	COIN SILVER	COIN SILVER	COIN SILVER	COIN SILVER	COIN SILVER	COIN SILVER
Contact (AC) maximum rated R load	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	3 A	3 A	3 A	3 A	3 A
Contact function	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Electrical life	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)
End contact material	COIN SILVER	COIN SILVER	COIN SILVER	COIN SILVER	COIN SILVER	COIN SILVER
Insulation resistance	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω	200000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	800	800	800	800	800	800
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
seal	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	DPDT	DPDT	SPDT	SPDT	SPDT	SPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal length	0.172 inch	0.172 inch	0.172 inch	0.172 inch	0.172 inch	0.172 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
