35NA33MCA6.3X11 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 35NA33MCA6.3X11

Preview

35NA33MCA6.3X11: DescriptionAluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount; CategoryPassive components capacitor; File Size39KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

35NA33MCA6.3X11 Overview

Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount

35NA33MCA6.3X11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.03465 mA
Manufacturer's serial number	NA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	NON-POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	90 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

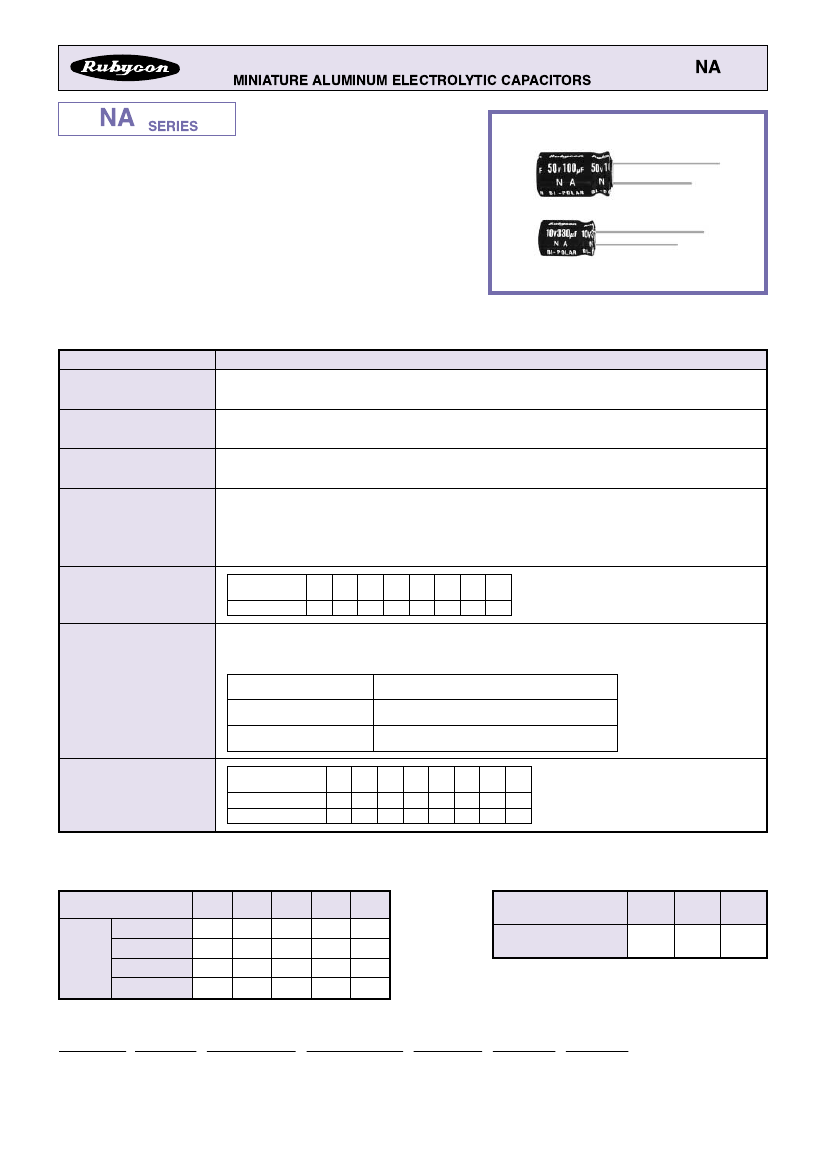

小½アルミニウム電解コンデンサ

NA

シリーズ

SERIES

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

NA

85℃ 両極性小型化標準品 85℃ Bi-polar Miniaturized

◆規格表 SPECIFICATIONS

項目

Items

カテゴリ温度範囲

Category Temperature Range

特性

Characteristics

−40∼＋85℃

6.3∼100V.DC

±20％（20℃，120Hz）

I＝0.03CV又は3μAのいずれか大なる値以下（定格電圧印加5分後)

定格電圧範囲

Rated Voltage Range

静電容量許容差

Capacitance Tolerance

漏

れ

電

流

I＝0.03CV

or 3μA whichever is greater.

(After 5 minutes application of rated voltage)

Leakage Current(MAX)

I＝漏れ電流(μA)

C＝定格静電容量(μF) V＝定格電圧(V)

Leakage Current Rated Capacitance Rated Voltage

定格電圧(V)

6.3 10 16 25 35 50 63 100

Rated Voltage

tanδ

0.25 0.25 0.20 0.20 0.15 0.15 0.15 0.15

損失角の正接 (tanδ)

Dissipation Factor(MAX)

（20℃，120Hz）

85℃中で250時間毎に極性を反転させ2000時間定格電圧プル重畳）

（リ

印加後、

下記項目

を満足するこ

と。

After applying rated voltage with rated ripple current for 2000hrs at 85℃, (The polarity shall be reversed every 250hrs.),

the capacitors shall meet the following requirements.

耐

Endurance

久

性

静電容量変化率

Capacitance Change

損失角の正接

Dissipation Factor

漏

れ

電

流

Leakage Current

定格電圧(V)

6.3

Rated Voltage

Z

（−25℃）（20℃） 6

/Z

Z

（−40℃）（20℃） 12

/Z

10

4

10

初期値の±25％以内

Within ±25％ of the initial value.

規格値の200％以下

Not more than 200％ of the specified value.

規格値以下

Not more than the specified value.

16

4

8

25

3

6

35

2

4

50

2

4

63

2

4

100

2

3

½

温

特

性

（120Hz）

Low Temperature Stability

（インピーダンス比）

Impedance Ratio(MAX)

◆リプル電流補正係数 MULTIPLIER FOR RIPPLE CURRENT

（1）

周波数係数 Frequency coefficient

周波数

（Hz）

Frequency

（2）

周囲温度係数 Temperature coefficient

1k

1.30

1.15

10k≦

1.50

1.20

Ambient Temperature

Coefficient

60 50） 120

（

0.50

0.65

0.80

1.00

500

1.20

1.10

周囲温度

（℃）

係数

85

1.0

70

1.6

50≧

2.0

0.47∼1μF

Coefficient

係数

2.2∼4.7μF

10∼47μF

100∼1000μF

◆呼称方法 PART NUMBER

□□□

定格電圧

Rated Voltage

NA

シリーズ名

Series

□□□□□

定格静電容量

Rated Capacitance

□

静電容量許容差

Capacitance Tolerance

□□□

副記号

Option

□□

D×L

リード加工記号ケースサイズ

Lead Forming

Case Size

35NA33MCA6.3X11 Related Products

	35NA33MCA6.3X11	50NA1MCA5X11	6.3NA330MCA8X11.5	6.3NA220MCA6.3X11	16NA47MCA5X11	63NA22MCA8X11.5	25NA33MCA5X11	100NA0.47MCA5X11	35NA22MCA5X11
Description	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount	Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	33 µF	1 µF	330 µF	220 µF	47 µF	22 µF	33 µF	0.47 µF	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	0.03465 mA	0.0015 mA	0.06237 mA	0.04158 mA	0.02256 mA	0.04158 mA	0.02475 mA	0.00141 mA	0.0231 mA
Manufacturer's serial number	NA	NA	NA	NA	NA	NA	NA	NA	NA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	35 V	50 V	6.3 V	6.3 V	16 V	63 V	25 V	100 V	35 V
ripple current	90 mA	12 mA	225 mA	160 mA	80 mA	82 mA	77 mA	10 mA	65 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.15	0.15	0.25	0.25	0.20	0.15	0.20	0.15	0.15
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
