NFP-16A-0112A datasheet, PDF - EEWORLD Datasheet

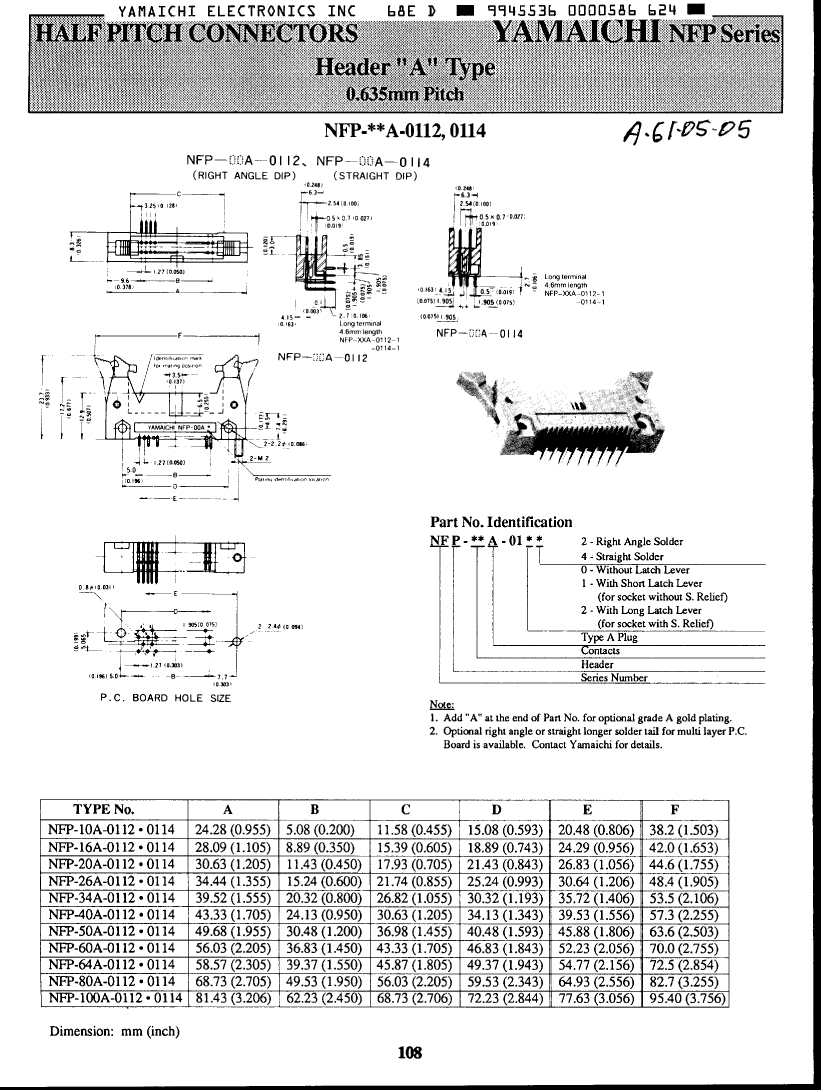

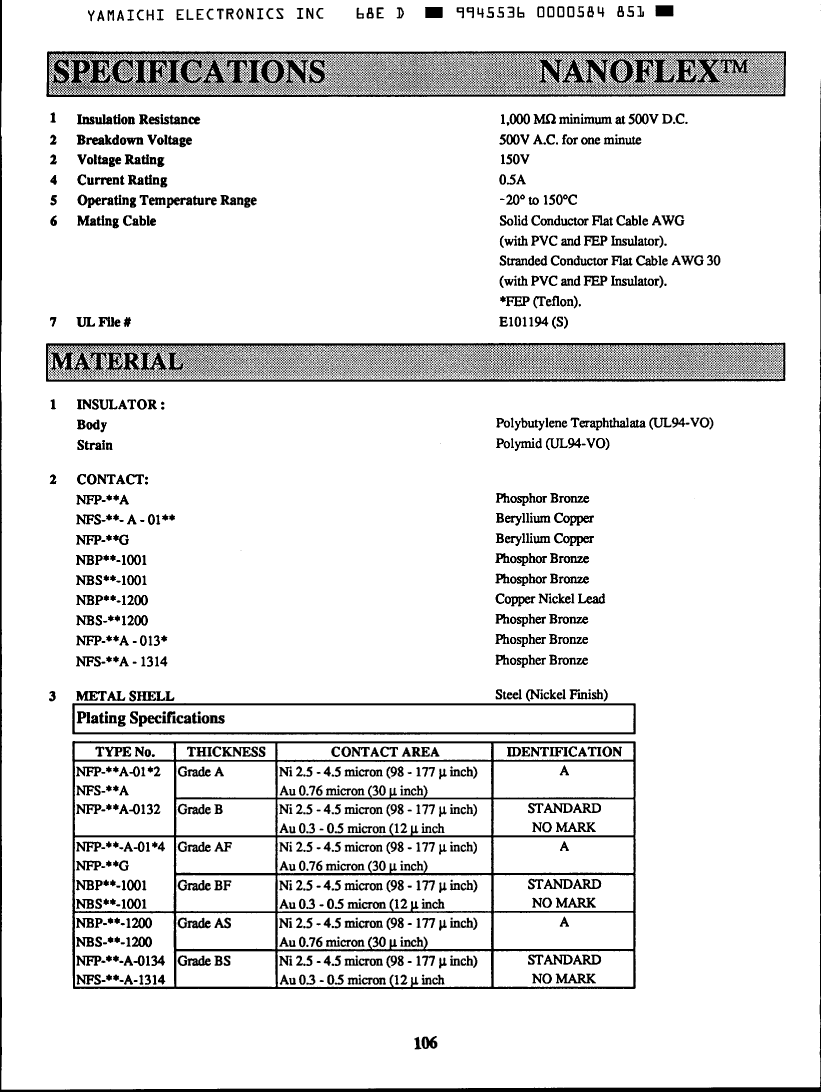

NFP-16A-0112A: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size240KB，2 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

NFP-16A-0112A Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SHORT LATCH LEVER
Board mount options	HOLE .086-.098
body width	0.326 inch
subject depth	0.677 inch
body length	1.105 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	NFP
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	CENTER
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
