MB2461JA01-B-1G datasheet, PDF

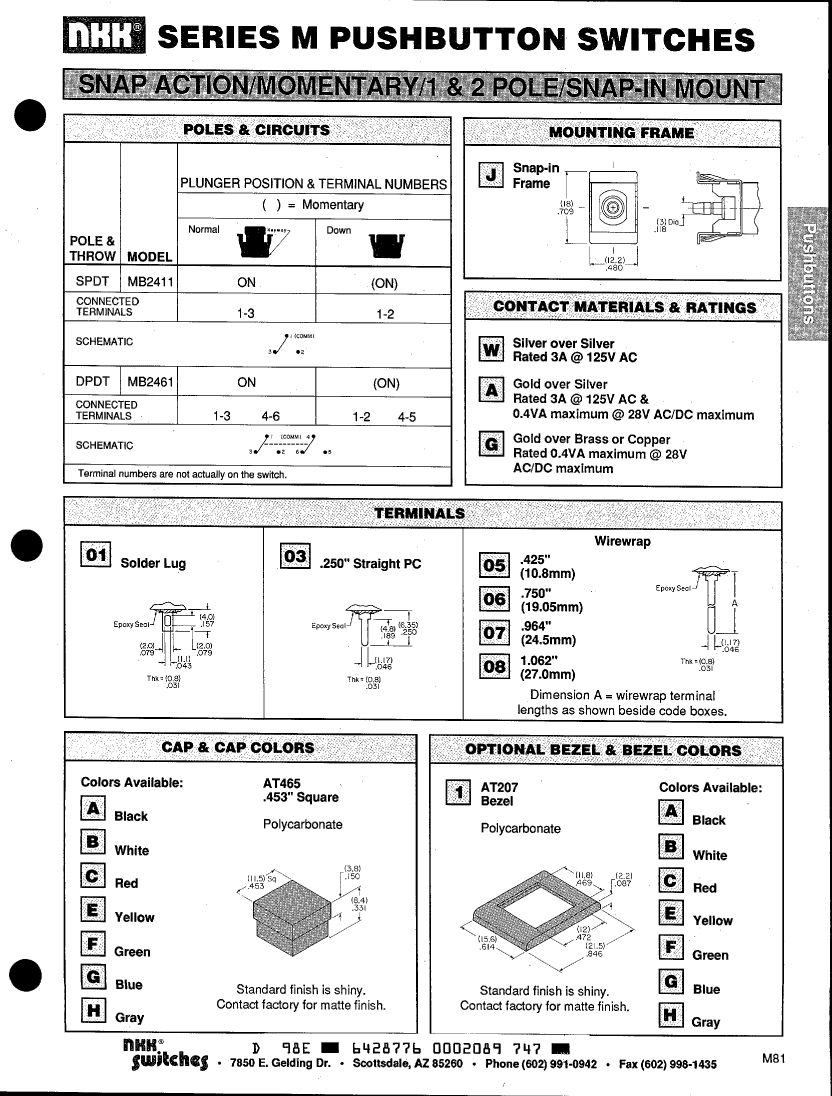

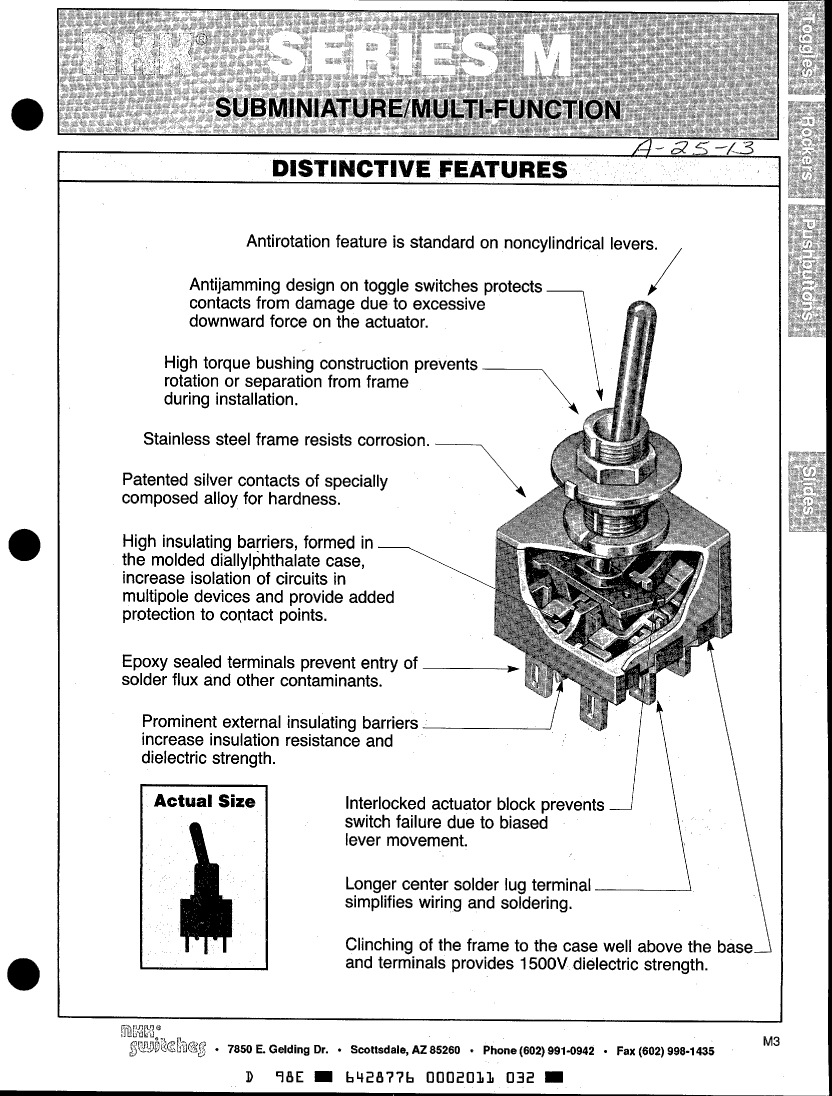

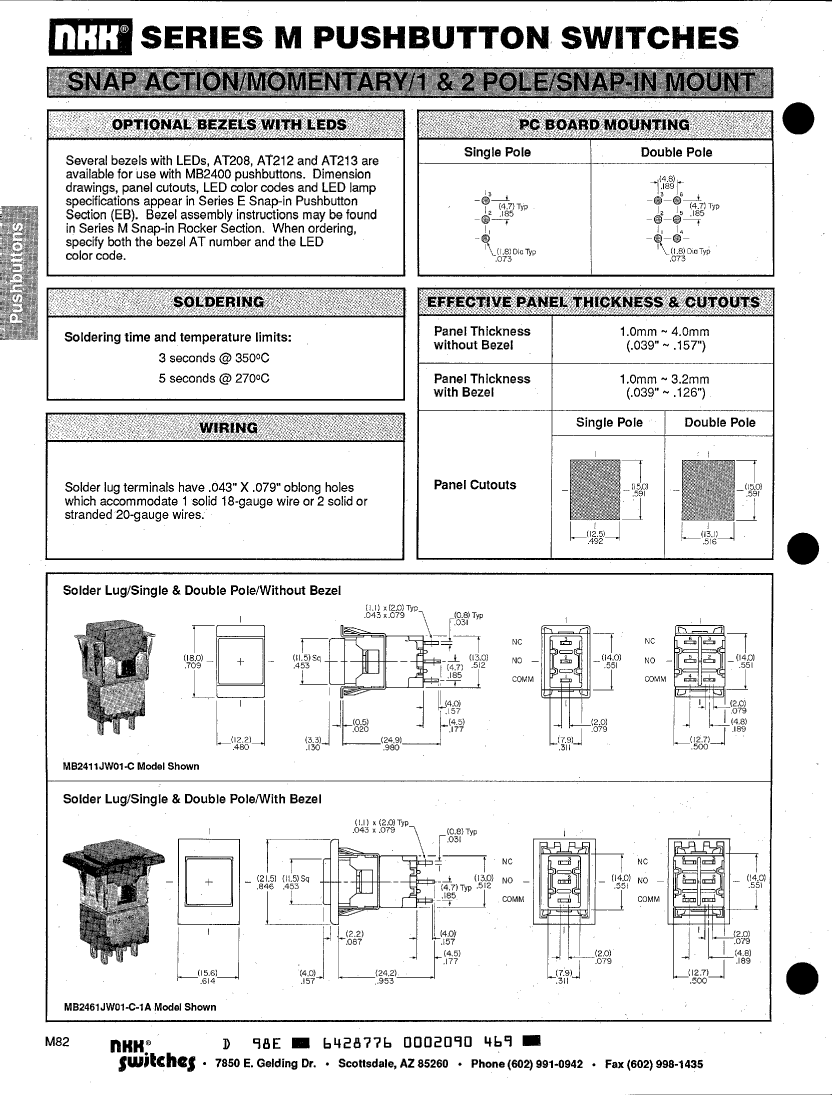

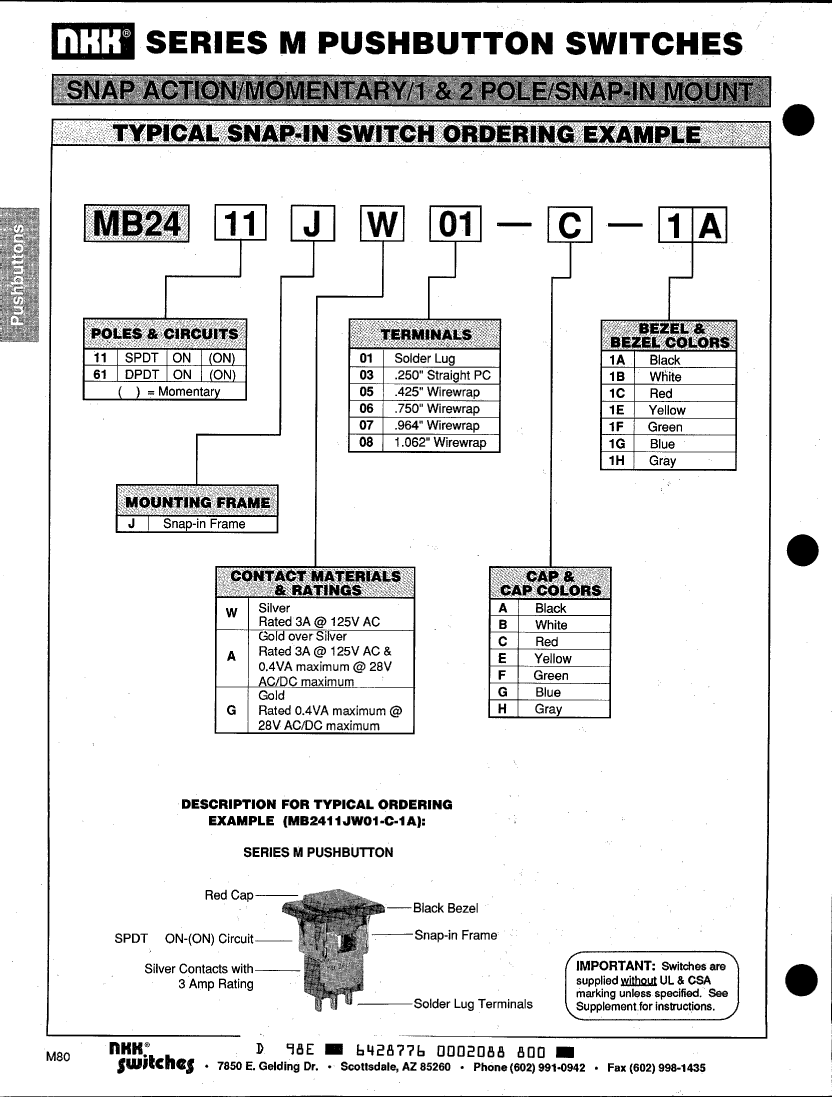

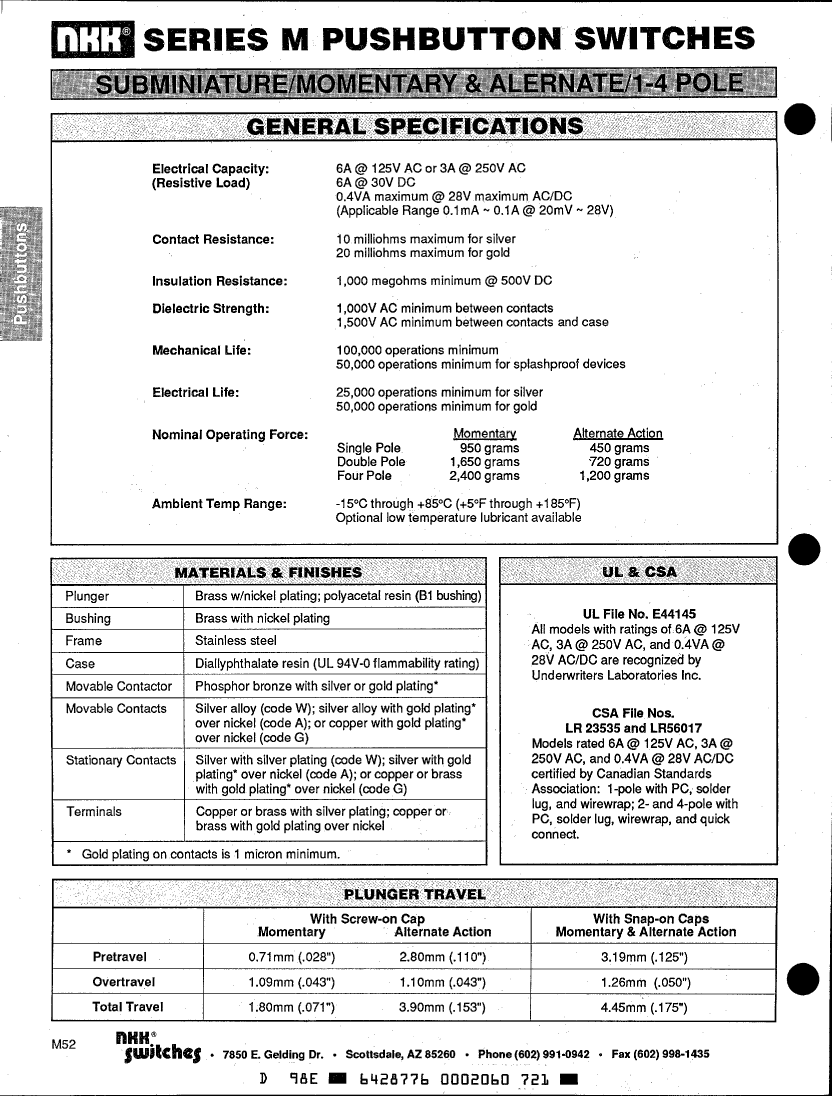

MB2461JA01-B-1G: DescriptionPushbutton Switch, DPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size787KB，5 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

MB2461JA01-B-1G Overview

Pushbutton Switch, DPDT, On-(on), Momentary, Solder Lug Terminal, Panel Mount

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NKK Switches
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator angle
Actuator color	WHITE
Executor completed	GLOSS
Actuator length	0.331 inch
Actuator material	POLYCARBONATE
Actuator stroke	4.445 mm
Actuator type	PUSHBUTTON
Other features	BLUE BEZEL
body width	12.7 mm
body height	28.194 mm
Body length or diameter	13.9954 mm
Nozzle length
center contact material	SILVER
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Contact (DC) maximum rated power R load	0.4VA@28VDC
Contact function	ON-(ON)
Contact resistance	0.03 mΩ
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1500VAC V
Electrical life	100000 Cycle(s)
End contact material	SILVER
End contact plating	GOLD OVER NICKEL
Shell material	NYLON
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Manufacturer's serial number	M
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-15 °C
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	GOLD OVER NICKEL/SILVER
Terminal length	0.157 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER LUG
