PAL12L6CSGXXXX: DescriptionOT PLD, 35 ns, PDIP20; Categorysemiconductor Programmable logic devices; File Size408KB，14 Pages; ManufacturerETC1

Download Datasheet Parametric View All

PAL12L6CSGXXXX Overview

OT PLD, 35 ns, PDIP20

PAL12L6CSGXXXX Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 Cel
Minimum operating temperature	0.0 Cel
Maximum supply/operating voltage	5.25 V
Minimum supply/operating voltage	4.75 V
Rated supply voltage	5 V
Number of input and output buses	0.0
Processing package description	Plastic, DIP-20
state	DISCONTINUED
Craftsmanship	TTL
packaging shape	Rectangle
Package Size	IN-line
Terminal form	THROUGH-hole
Terminal spacing	2.54 mm
terminal coating	NOT SPECIFIED
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	COMMERCIAL EXTENDED
organize	12 DEDICATED INPUTS, 0 I/O
Output function	COMBINATORIAL
Programmable logic type	OT programmable logic device
propagation delay TPD	35 ns
Dedicated input quantity	12

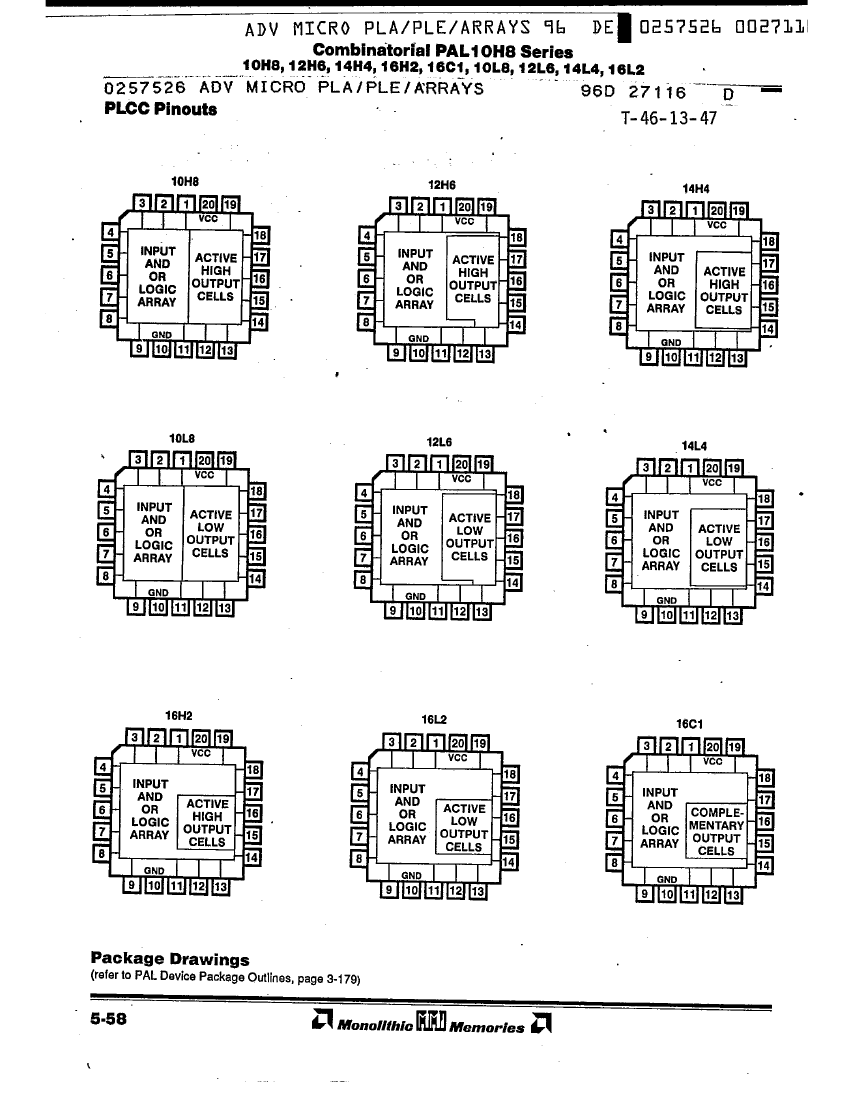

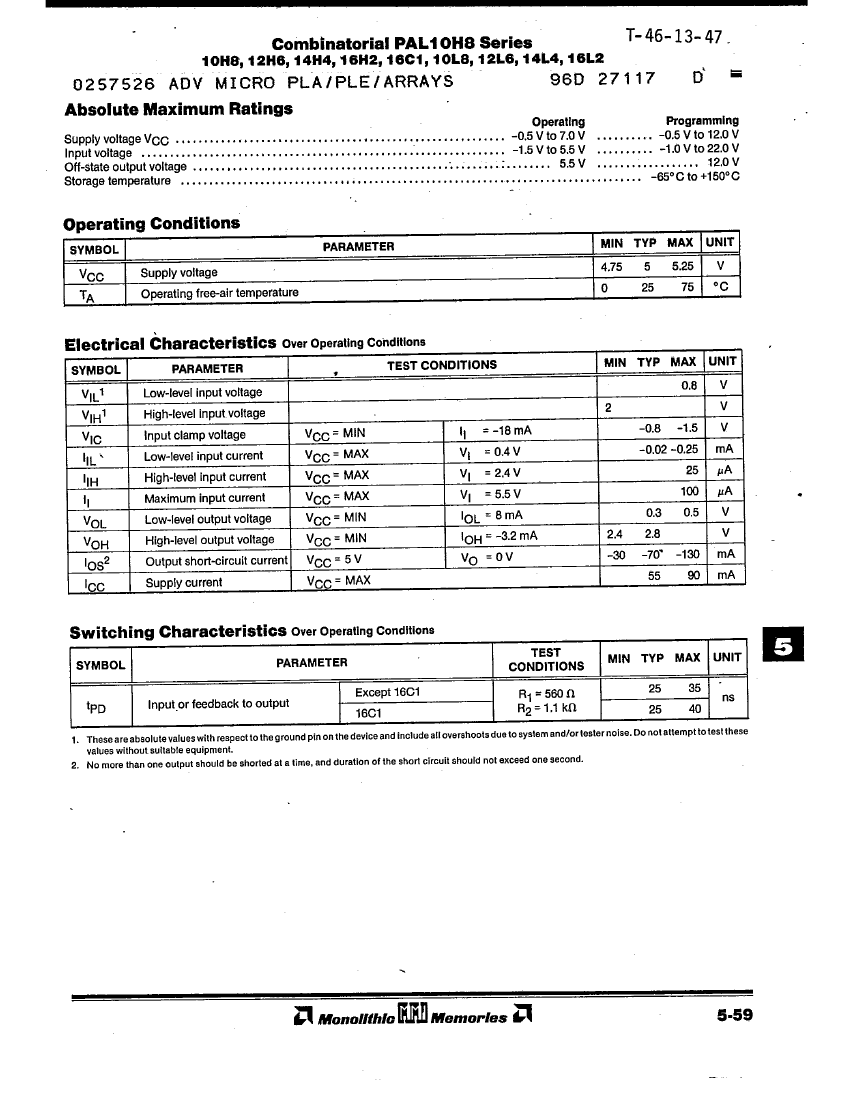

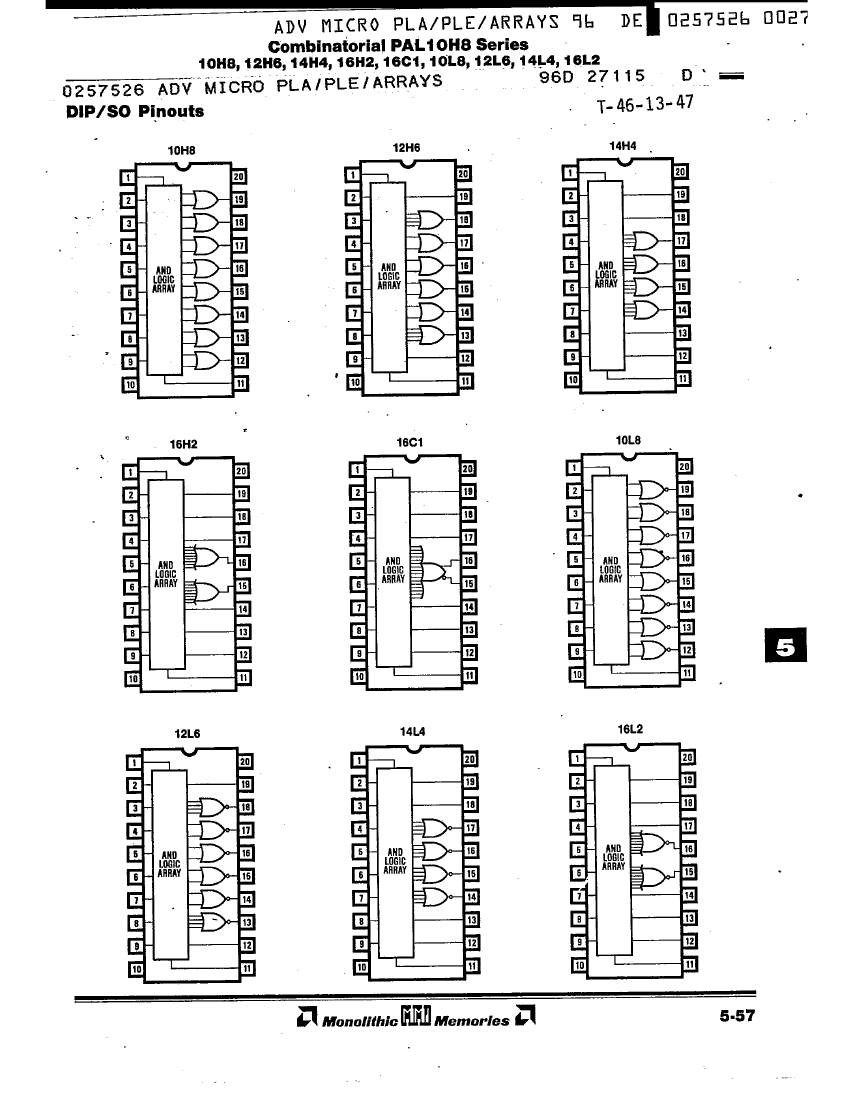

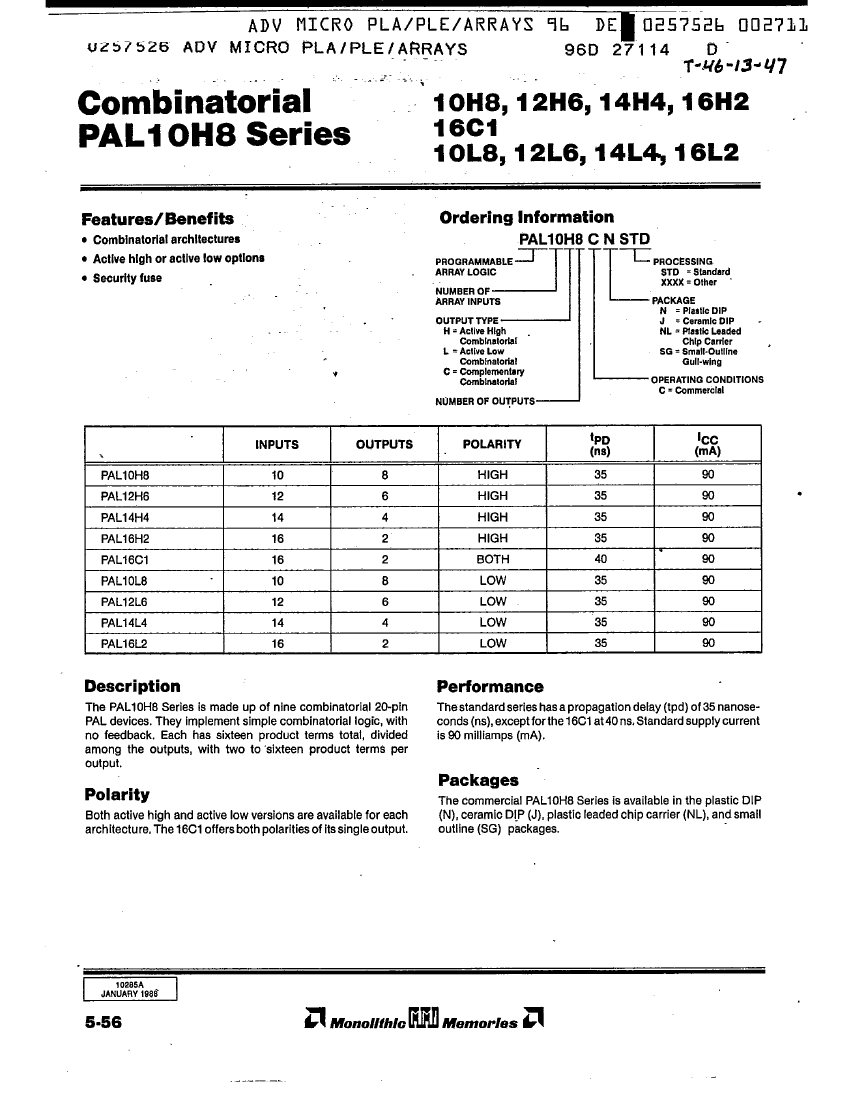

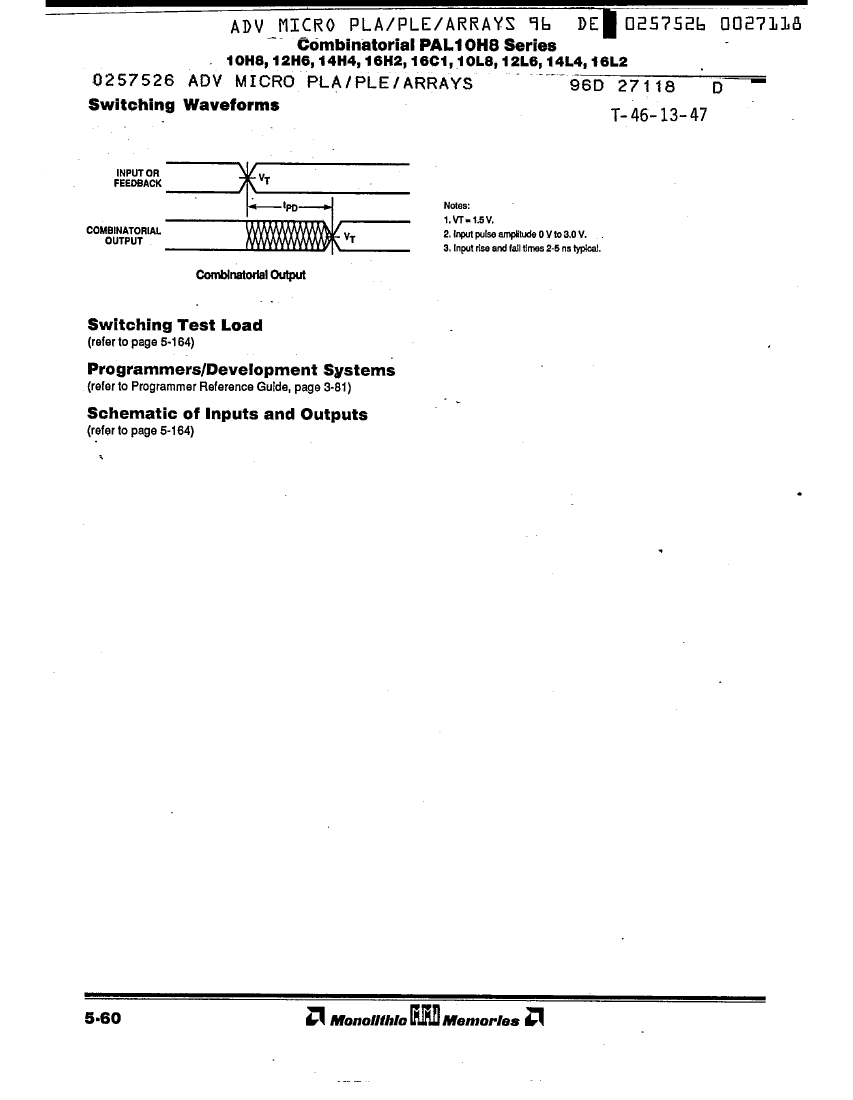

Preview

Download Datasheet
