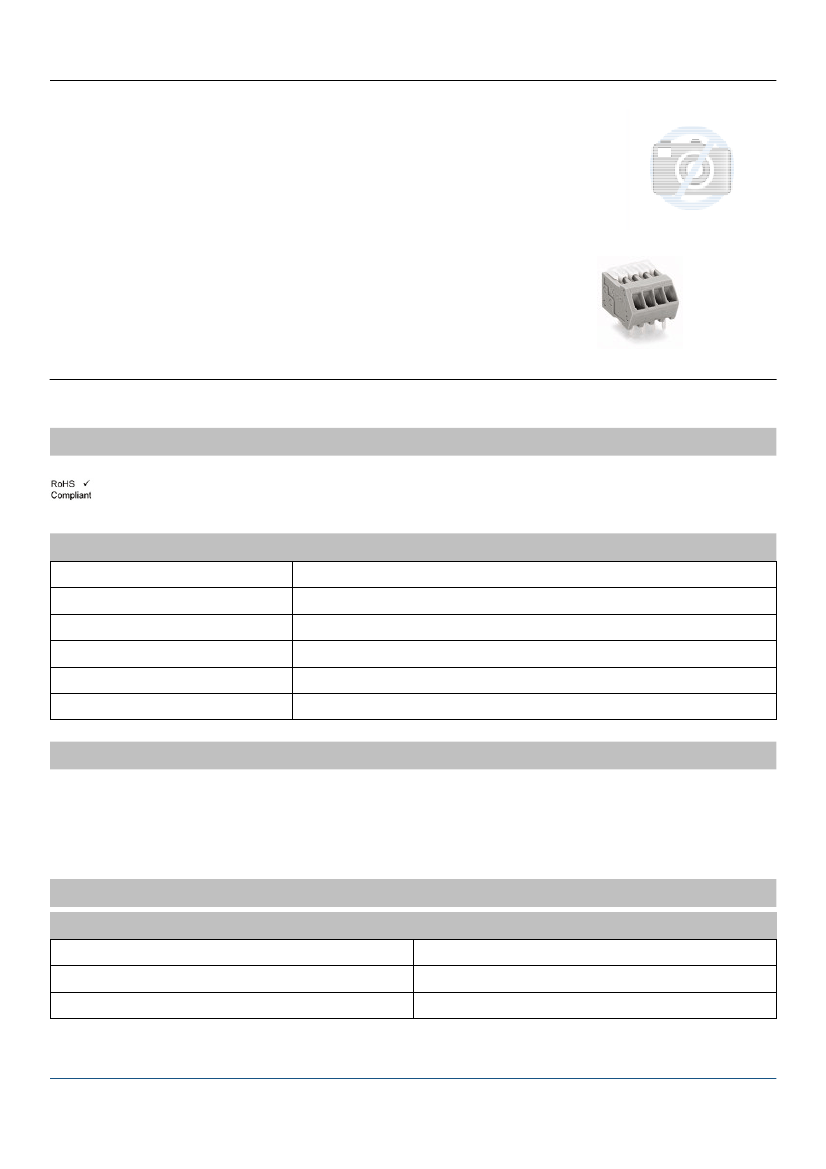

Printview: PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm; 14-pole; CAGE CLAMP® -
Item No.: 218-114
.
PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm;
14-pole; CAGE CLAMP®
Item No.: 218-114
.
PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm; 14-pole; CAGE CLAMP®
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
218-114
4044918877978
1
30

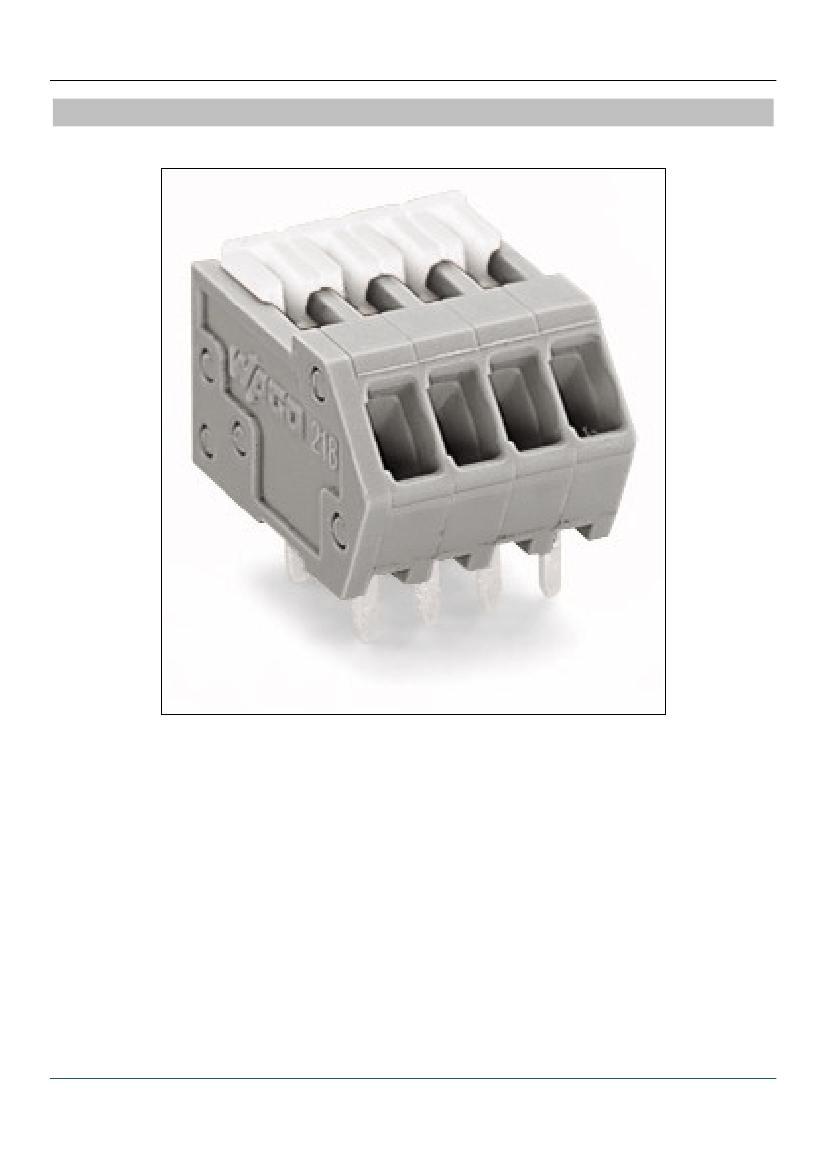

Item description:Terminal strips are just 8.1mm high and feature an innovative, locking slide-actuated CAGE
CLAMP®Several clamping units can be held open simultaneouslyEasy termination of stranded conductors in tight
spaces (e.g., bus connectors)

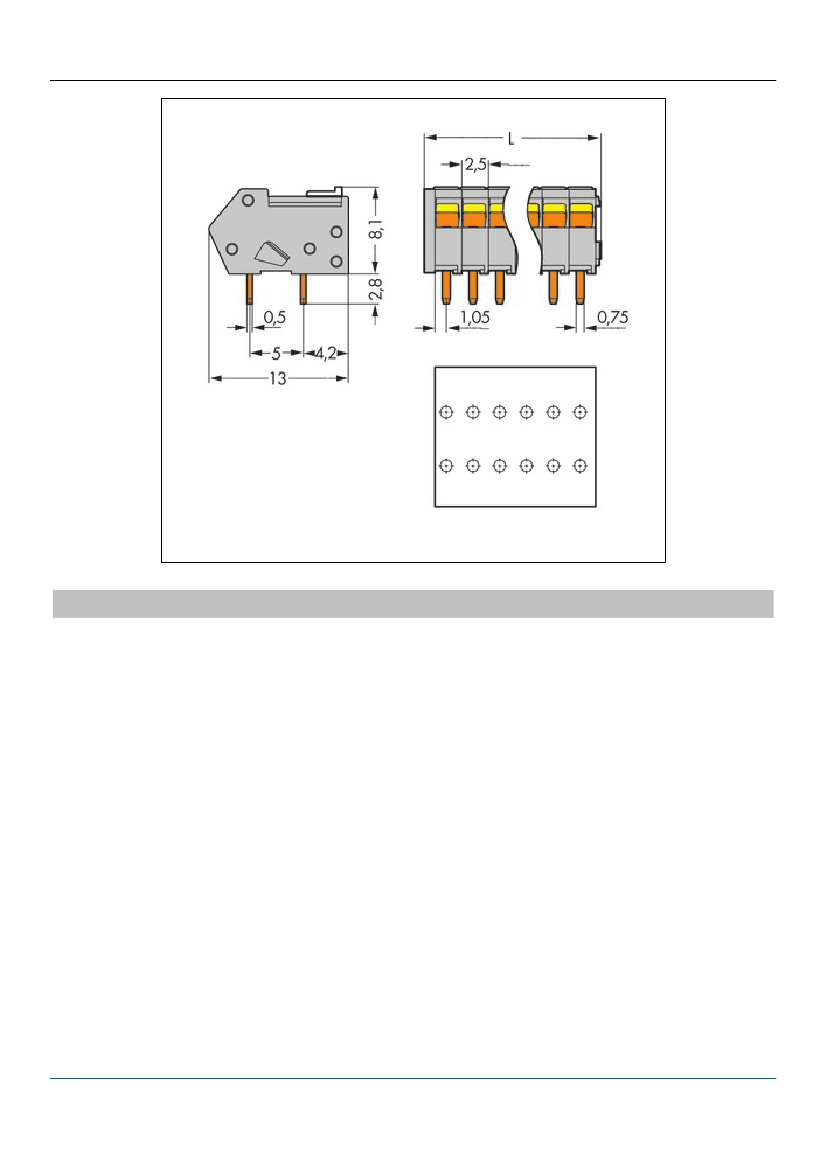

Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
14
2.5 mm (0.098 in)
14
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm; 14-pole; CAGE CLAMP® -
Item No.: 218-114
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
14
gray
IEC/EN 60664-1
80 [V]
2.5 [kV]
2
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
6 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
CAGE CLAMP®
1
Confirmation slide switch
0.08 … 0.5 mm² / 28 … 20 AWG
0.08 … 0.5 mm² / 28 … 20 AWG
0.25 mm² / AWG
Fine-stranded conductor with ferrule without plastic collar 0.25 mm² / AWG
Strip length
Conductor entry angle to the PCB [°]
Solder pin arrangement
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact material
Contact plating
5 … 6 mm / 0.2 … 0.24 Inch
40 [°]
in line
2.8 [mm]
1.1(+ 0.1) [mm]
I
Polyamide 66 (PA 66)
V0
-60 … 105 °C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm; 14-pole; CAGE CLAMP® -
Item No.: 218-114
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
