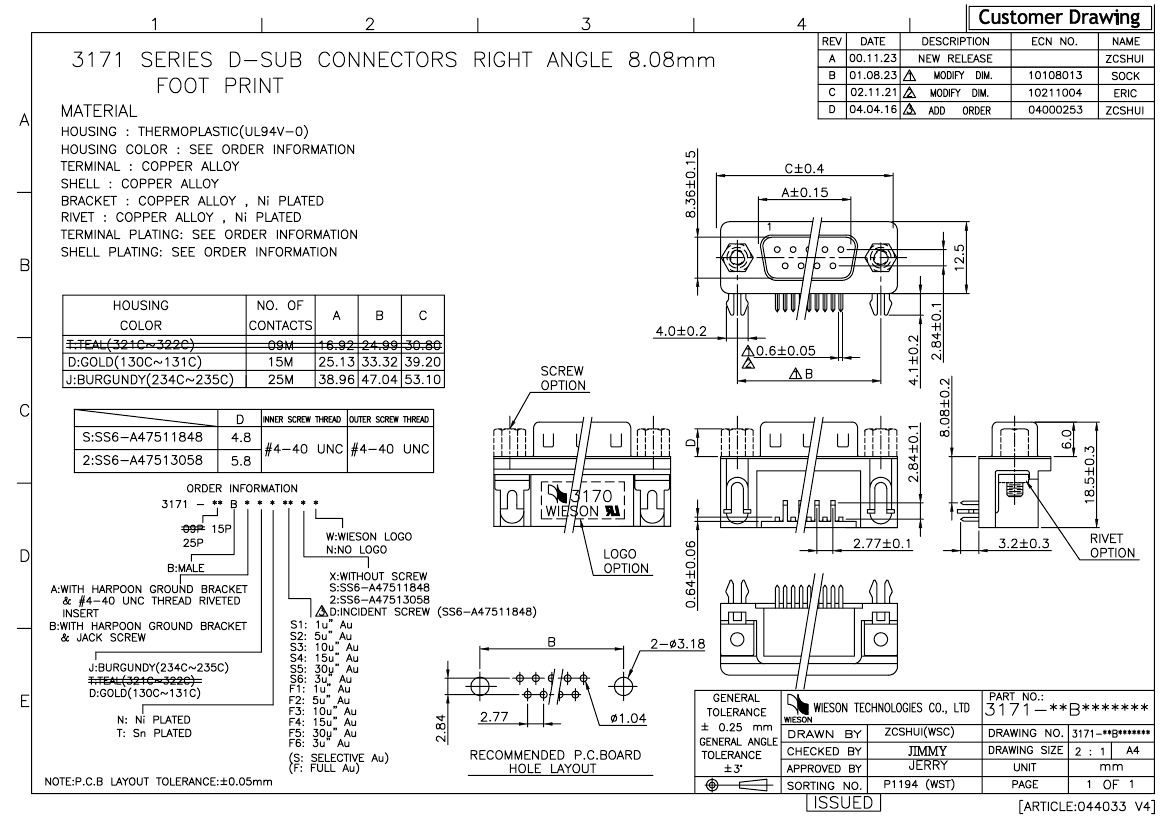

3171-25BBJNS4SW

Description
D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size86KB,1 Pages
ManufacturerWieson Technologies Co., Ltd.
Download Datasheet Parametric View All

3171-25BBJNS4SW Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

3171-25BBJNS4SW Parametric

Parameter NameAttribute value
MakerWieson Technologies Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.492 inch
subject depth0.492 inch
body length2.091 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact styleRND PIN-SKT
Insulator colorBURGUNDY
insulator materialTHERMOPLASTIC
Manufacturer's serial number3171
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2SCREW
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Terminal length0.126 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25
