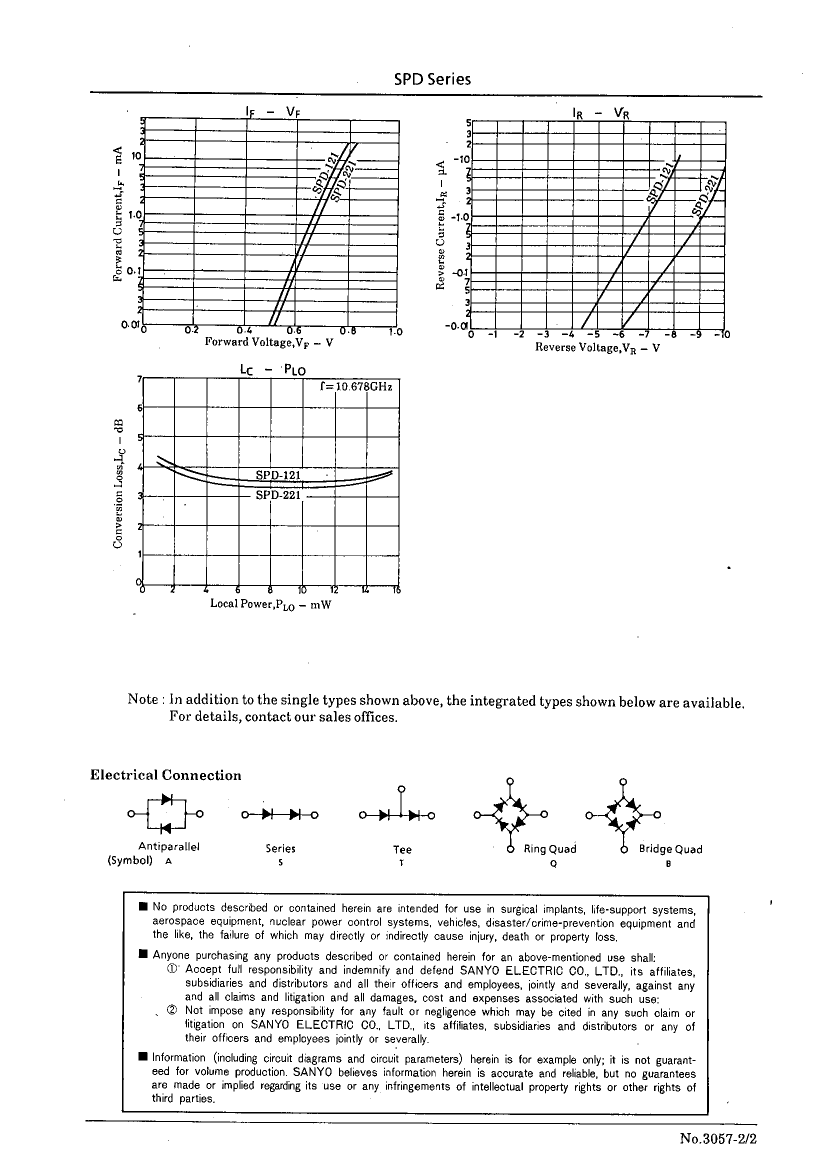

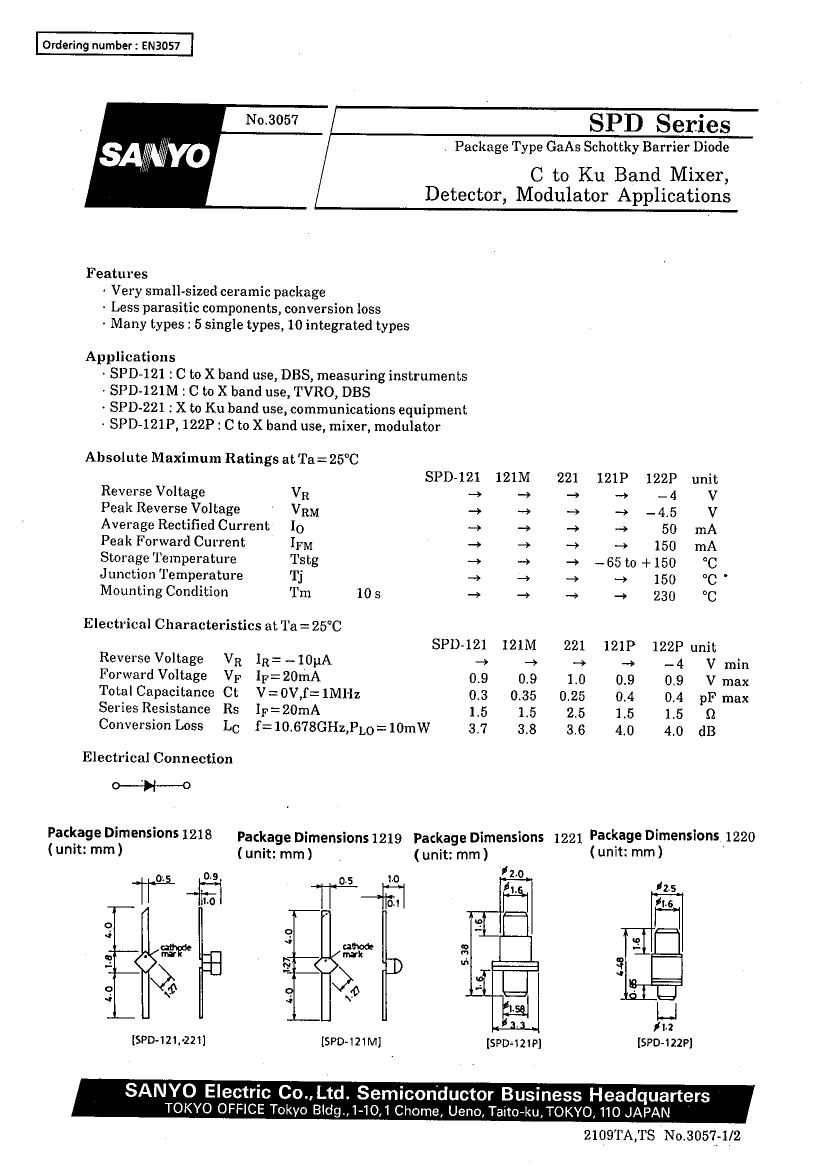

SPD-121P: DescriptionGALLIUM ARSENIDE, C-X BAND, MIXER DIODE; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

SPD-121P Overview

GALLIUM ARSENIDE, C-X BAND, MIXER DIODE

SPD-121P Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	O-CEMW-N2
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Maximum diode capacitance	0.4 pF
Diode component materials	GALLIUM ARSENIDE
Diode type	MIXER DIODE
frequency band	C BAND TO X BAND
JESD-30 code	O-CEMW-N2
Number of components	1
Number of terminals	2
Maximum operating frequency	11 GHz
Minimum operating frequency	3.9 GHz
Maximum operating temperature	150 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal form	NO LEAD
Terminal location	END

Preview

Download Datasheet

View All

SPD-121P Related Products

	SPD-121P	SPD-122P	SPD-221	SPD-121M	SPD	SPD-121
Description	GALLIUM ARSENIDE, C-X BAND, MIXER DIODE	GALLIUM ARSENIDE, C-X BAND, MIXER DIODE	GALLIUM ARSENIDE, C-X BAND, MIXER DIODE	GALLIUM ARSENIDE, C-X BAND, MIXER DIODE	GALLIUM ARSENIDE, C-X BAND, MIXER DIODE	GALLIUM ARSENIDE, C-X BAND, MIXER DIODE
package instruction	O-CEMW-N2	O-CEMW-N2	S-CDMW-F2	S-CDMW-F2	-	S-CDMW-F2
Reach Compliance Code	unknow	unknow	unknow	unknow	-	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE
Maximum diode capacitance	0.4 pF	0.4 pF	0.25 pF	0.35 pF	-	0.3 pF
Diode component materials	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE	-	GALLIUM ARSENIDE
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	-	MIXER DIODE
frequency band	C BAND TO X BAND	C BAND TO X BAND	X BAND TO KU BAND	C BAND TO X BAND	-	C BAND TO X BAND
JESD-30 code	O-CEMW-N2	O-CEMW-N2	S-CDMW-F2	S-CDMW-F2	-	S-CDMW-F2
Number of components	1	1	1	1	-	1
Number of terminals	2	2	2	2	-	2
Maximum operating frequency	11 GHz	11 GHz	18 GHz	11 GHz	-	11 GHz
Minimum operating frequency	3.9 GHz	3.9 GHz	3.9 GHz	3.9 GHz	-	3.9 GHz
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-	150 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	SQUARE	SQUARE	-	SQUARE
Package form	MICROWAVE	MICROWAVE	MICROWAVE	MICROWAVE	-	MICROWAVE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
surface mount	YES	YES	YES	YES	-	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	SCHOTTKY
Terminal form	NO LEAD	NO LEAD	FLAT	FLAT	-	FLAT
Terminal location	END	END	DUAL	DUAL	-	DUAL
Contacts	-	2	2	2	-	2
Base Number Matches	-	1	1	1	-	1
