BD110-07C-K-0300-0230-0250-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD110-07C-K-0300-0230-0250-N-G

BD110-07C-K-0300-0230-0250-N-G: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD110-07C-K-0300-0230-0250-N-G Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle,

BD110-07C-K-0300-0230-0250-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.138 inch
body length	0.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BD110
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	7

Preview

Download Datasheet

View All

Global Connector Technology Ltd. - BD110: 1.27mm PITCH PIN HEADER, SINGLE ROW, THROUGH HOLE, HORIZONTAL

Ordering Grid

SPECIFICATIONS

规格:

BD110

No. of Contacts

XX X

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Insulator H = A, B)

N = Nylon 6T (Insulator H = K)

CURRENT RATING

电流额定值：

1 AMP

02 to 33

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

Contact Plating

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

A = Gold Flash All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

B = Selective Gold Flash Contact Area/

CONTACT MATERIAL

端子物料：

COPPER ALLOY

Tin On Tail

INSULATOR MATERIAL

绝缘½物料

C = Tin All Over

OPTIONS

可选物料

: POLYESTER

聚酯

G = 10µ" Gold Contact Area/Tin On Tail

LCP, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = A, B)

I = 30µ" Gold Contact Area/Tin On Tail

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

Standard = Gold Flash All Over

NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/

塑胶高度

H = K)

SOLDERING PROCESS

可焊性

Insulator Height "H"

K = 1.00mm

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

A = 1.50mm

WAVE

波峰焊

: 250°C for 5-10 sec

B = 2.00mm

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

Standard = 2.00mm

NYLON 6T (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD074

BD075

BD080

BD090

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

28/12/07

INSULATOR MATERIAL

STANDARD INSULATOR

PACKING OPTIONS SOLDER TEMP & MATES

UPDATED FOR SPECIFIC

WITH INFO. UPDATED

CHANGED

MATERIAL CHANGED

INSULATOR HEIGHTS

Dimension D (1/100mm)

Dimension C (1/100mm)

(Tail Length)

(Post Height)

Standard - 2.30mm = 0230

Standard - 3.00mm = 0300

or specify Dimension D

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Min. Overall Pin Length = 5.2mm

Tolerances

(Except as noted)

Dimension E (1/100mm)

(Insulator to Pin Bend)

Standard - 2.50mm = 0250

or specify Dimension E

e.g. 3.00mm = 0300

Tol +/- 0.2mm

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

BD110

Description:-

28 DEC 07

27/04/09

20/05/09

27/07/09

07/08/09

RoHS

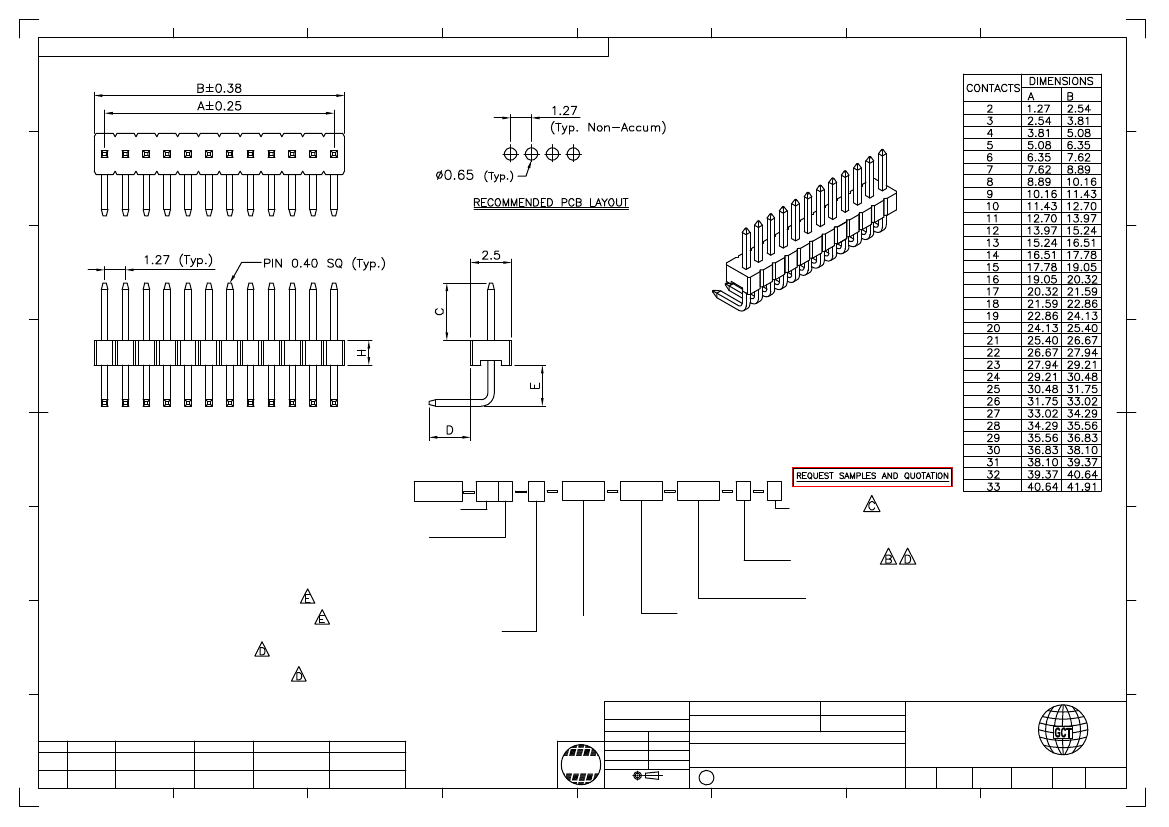

1.27mm PITCH PIN HEADER, SINGLE ROW,

THROUGH HOLE, HORIZONTAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

LYH

E & OE

Sheet No.

1/1
