BG031-19-A-0600-0300-L-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG031-19-A-0600-0300-L-G

BG031-19-A-0600-0300-L-G: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG031-19-A-0600-0300-L-G Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking,

BG031-19-A-0600-0300-L-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.059 inch
body length	1.9 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BG031
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

Number of

Contacts

Dimensions

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

Number of

Contacts

Dimensions

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.60

Ø 1.

2.54

2.50±0.1

Recommended PCB Layout

General Tolerance: ±0.05

2° Max. Sway & Toe

(Either Direction At The top

A±0.25

2.54

0.64 sq. pin

1.50

C±0.25

Ordering Grid

D±0.25

B±0.30

BG031

XXXX

Request Samples

and Quotation

No. of Contacts

02 to 40

Specifications

规格

Material

物料

Insulator

绝缘½

Standard

标准

: Polyamide, Nylon 6T, UL94V-0

Options

可选

: Polyester, LCP, UL94V-0

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5sec

LCP (Option

可选物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to Pin Length

在端子长度适合的条件下

)

BG090

BG095

BG096

BG100

BG115

BG125

BG126

BG130

BG145

BG205

BG230

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension C

(1/100mm) (Post Height)

0600 = 6.00mm

(Standard)

Or specify Custom Post Height

eg. 0250 = 2.50mm

Packing Options

G = Plastic Box

(Standard)

D = Tube

E = Tube with Cap

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

Dimension D

(1/100mm) (Tail Length)

0300 = 3.00mm

(Standard)

Or specify Custom Footprint Width

eg. 0250 = 2.50mm

Contact

接触

: Copper Alloy

Plating

电镀

Contact

接触

: See Ordering Grid

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulation Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

寒耐电压

: 600 V AC

Part Number

Product Description

BG031

Drawing Date

BG110

BG135

13th April 2007

Detail

Revision

Date

ASE

Change To

Dimension

06/02/15

Length

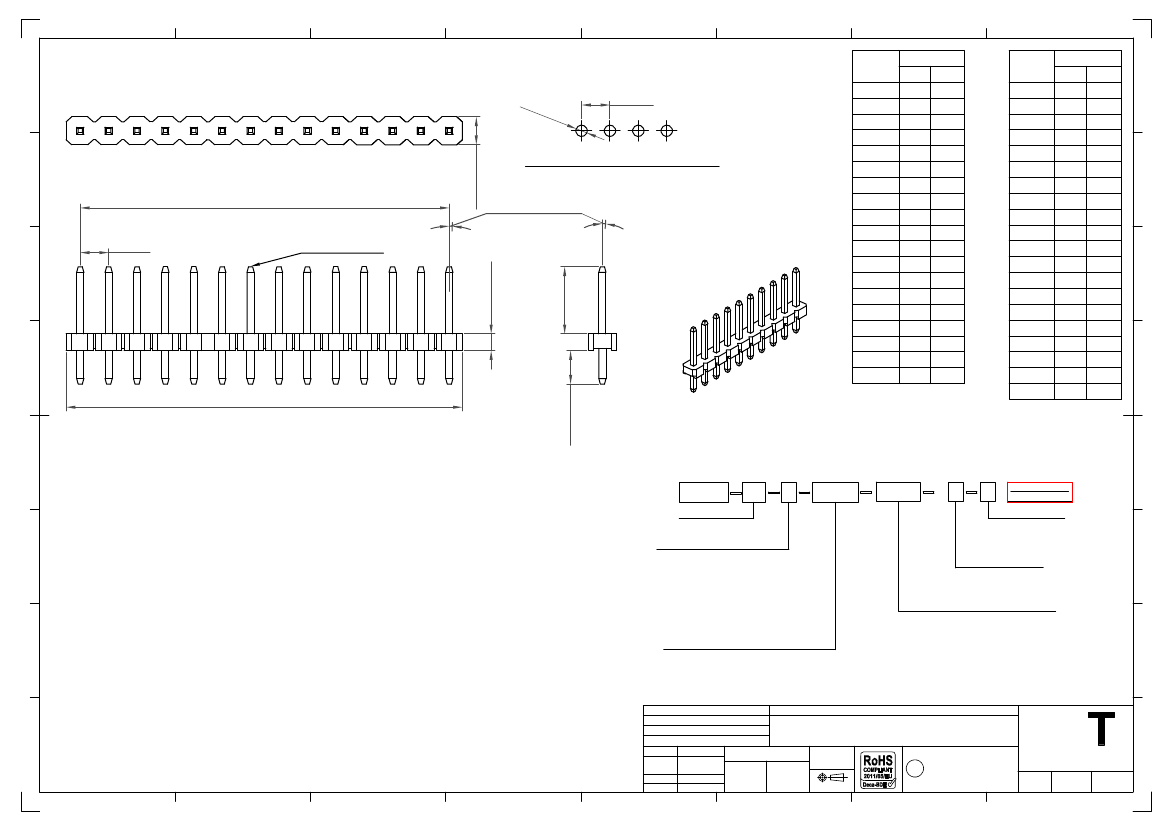

2.54mm Pitch Pin Header, Single Row, Through Hole,

Vertical, Low Profile

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

www.gct.co

Not to

Scale

Sheet No.

1/1
