PBV1632S-6DBN1-T datasheet, PDF

Datasheet> All Categories > Passive components> PBV1632S-6DBN1-T

PBV1632S-6DBN1-T: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 10 - 2000 V, SURFACE MOUNT, 1206; CategoryPassive components; File Size46KB，1 Pages; ManufacturerETC1

Download Datasheet Parametric View All

PBV1632S-6DBN1-T Overview

CAPACITOR, CERAMIC, MULTILAYER, 10 - 2000 V, SURFACE MOUNT, 1206

PBV1632S-6DBN1-T Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Processing package description	CHIP
state	ACTIVE
terminal coating	MATTE TIN
Installation features	SURFACE MOUNT
Manufacturer Series	PBV1632S-6DBN1-T
size code	PBV1632S-6DBN1-T
packaging shape	RECTANGULAR PACKAGE
Capacitor type	CERAMIC
Terminal shape	WRAPAROUND
multi-layer	Yes

Preview

Download Datasheet

View All

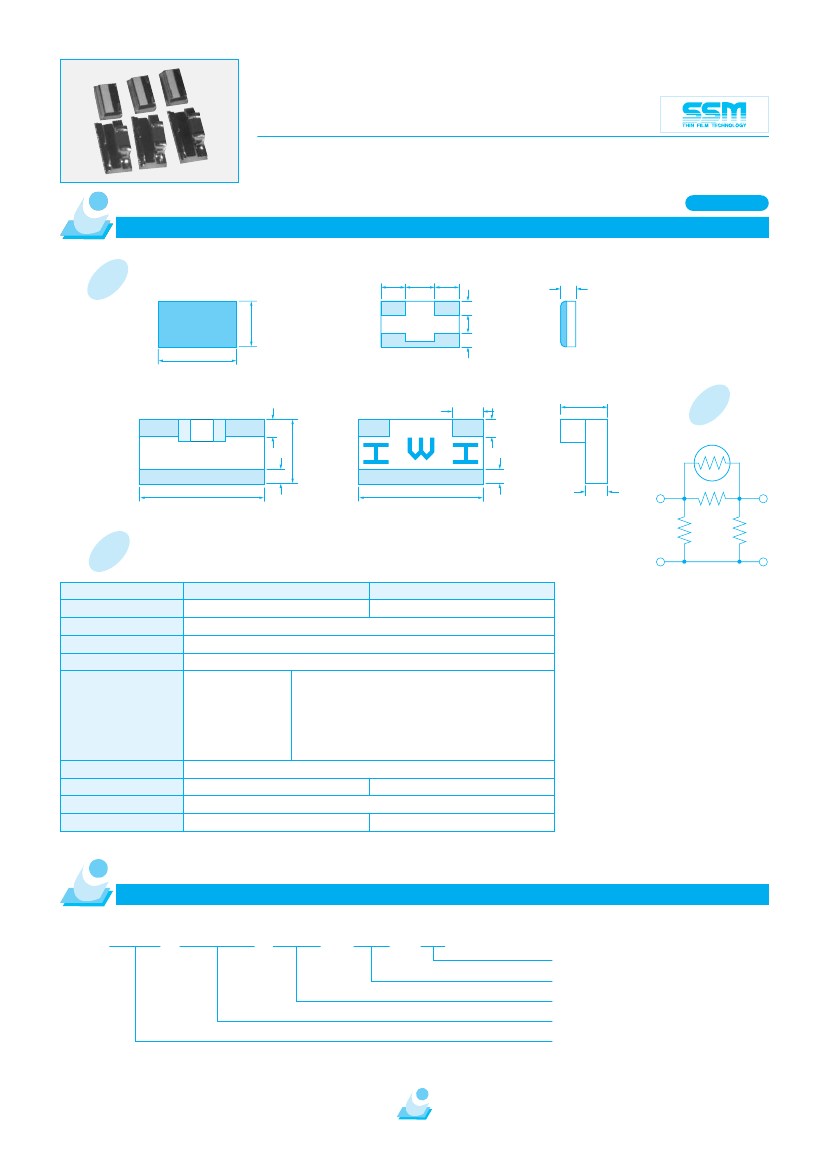

P*V series, thermal sensitive

chip attenuators.

These thermo-variable attenuators have opposite temperature characteristics of

GaAs MOSFET amplifiers and compensate the temperature caused gain fluctuation

of such amplifiers.

RoHS compliant

SPECIFICATIONS

Mechanical

PXV1220S

(0805)

2.0 0.2

0.55 0.25

1.0 0.2

0.4 0.2

PBV1632S

(1206)

3.2 0.2

Top side

1.60 0.2

0.4 0.2

3.2 0.2

back side

0.4 0.1

(dimension:mm)

1.5max

1.25 0.2

0.65 0.70 0.65

0.35 0.2 0.35

0.35 0.2

0.55 0.2

0.35 0.2

0.9 0.2

Equivalent

circuit

Electrical

PXV1220S

PBV1632S

Attenuation

1, 2, 3, 4, 5, 6, 7, 8, 9, 10dB

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 16dB

Attenuation tolerance

0.5dB(@25 C, no load)

Impedance

VSWR

1.3 or less

ex : 6dB

N1 0.0119dB/dB* C N5 0.0041dB/dB* C

N1 N8

N2 0.0088dB/dB* C N6 0.0035dB/dB* C

Temperature coefficient

(Nin types available for

of Attenuation

N3 0.0062dB/dB* C N7 0.0026dB/dB* C

1 to 3 dB)

N4 0.0047dB/dB* C N8 0.0019dB/dB* C

Type

Frequency Range

Power Rating

Operating Temp. Range

Package

63mW

3GHz

100mW

40 C

100 C

100pcs/package 1,000pcs/reel min.20pcs/package 1,000pcs/reel

•

PART NUMBER

PXV 1220S - 6dB

N1 - T

Package(T=Tape, B=Bulk)

Temperature coefficient of Attenuation

Attenuation

Dimensions

Part Code

“Not

for shipment to or sale in the United States”

susumu group catalog
