BH3857AFV Overview

Audio sound controller

BH3857AFV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP, SSOP40,.3
Contacts	40
Reach Compliance Code	compli
ECCN code	EAR99
channel separation	70 dB
Commercial integrated circuit types	TONE CONTROL CIRCUIT
harmonic distortion	0.03%
JESD-30 code	R-PDSO-G40
JESD-609 code	e3/e2
length	13.6 mm
Number of frequency bands	2
Number of channels	2
Number of functions	1
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP40,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	8 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum slew rate	26 mA
Maximum supply voltage (Vsup)	9.5 V
Minimum supply voltage (Vsup)	5.4 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

Preview

Download Datasheet

View All

Audio ICs

Audio sound controller

BH3857AFV

The BH3857AFV is a signal-processing IC for controlling audio quality in CD radio-cassette players and mini-component

stereo systems. Three-line serial control is available making it easy to adjust tone and volume using a microprocessor.

FApplications

Mini-component stereo systems, CD radio cassette play-

ers, car audio systems and TVs.

FFeatures

1) Volume (main volume) and tone (bass and treble)

control possible by direct serial link to a microproces-

sor. DC control is also possible.

2) Volume control is done with a low-distortion, low-

noise VCA, and step noise is suppressed.

3) The gain of the input amplifier can be adjusted, and

two surround matrixes are available to expand the

sound.

4) The IC includes a stable reference voltage source

and input buffer to reduce external component re-

quirements, and comes in a compact 40-pin SSOP

package that is perfect for compact designs.

5) Four open-collector outputs are provided to make

logic control possible.

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

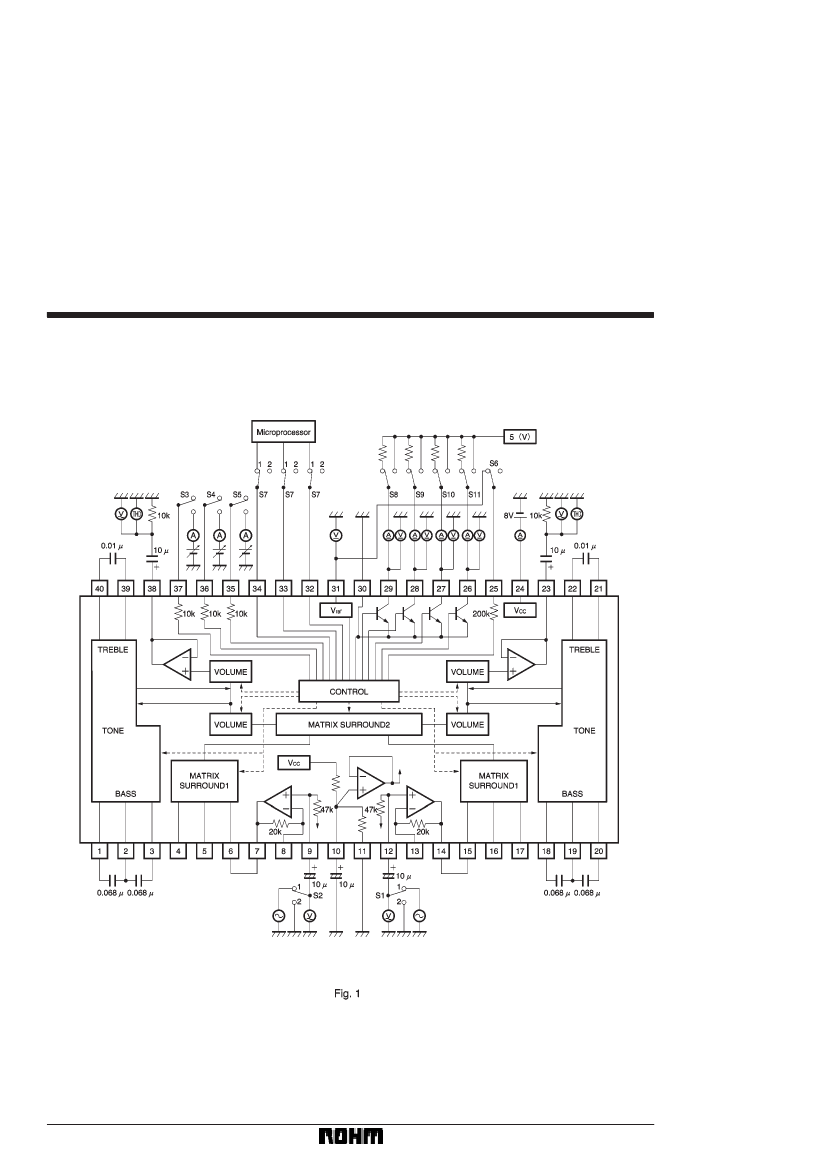

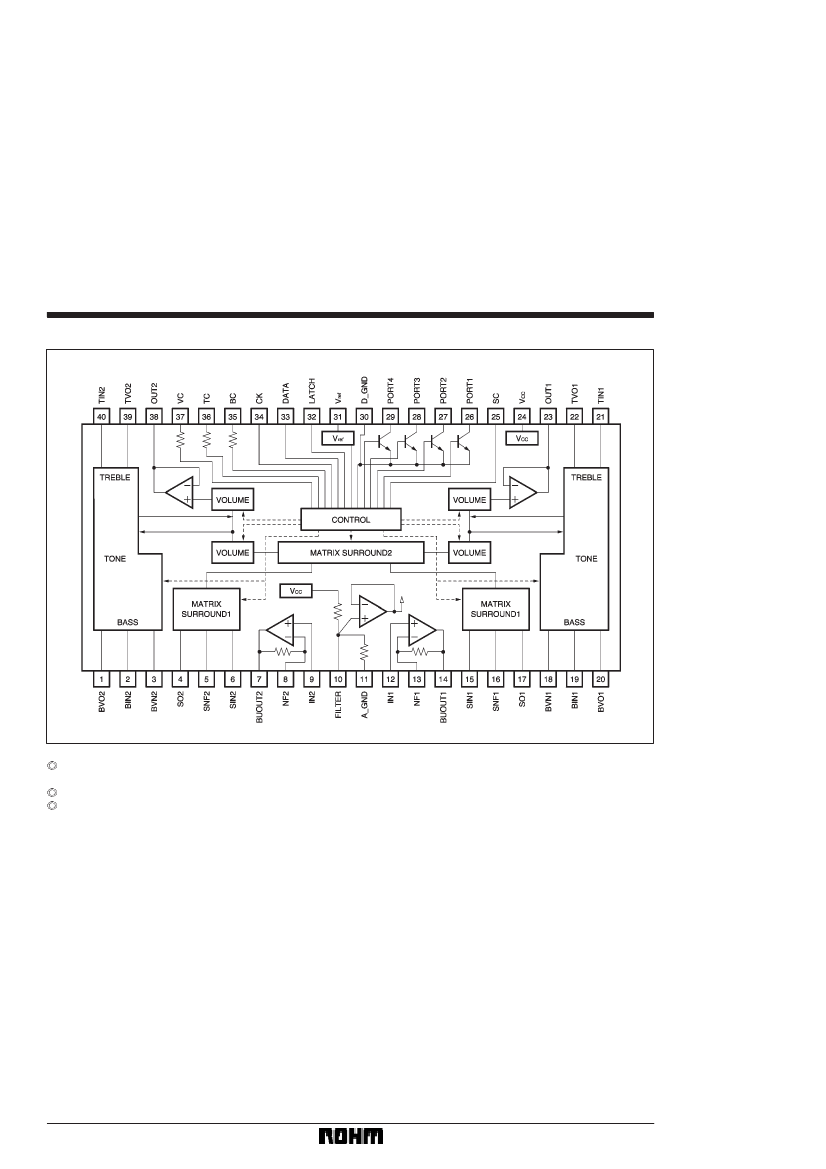

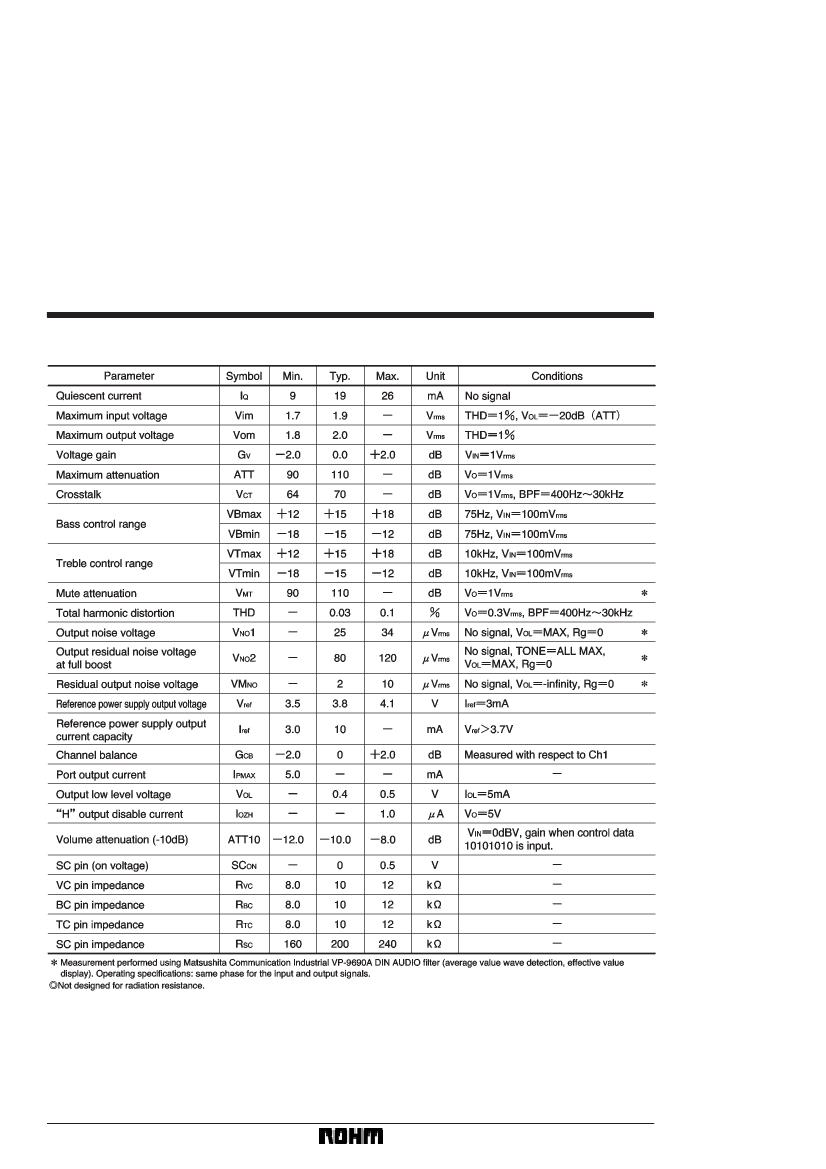

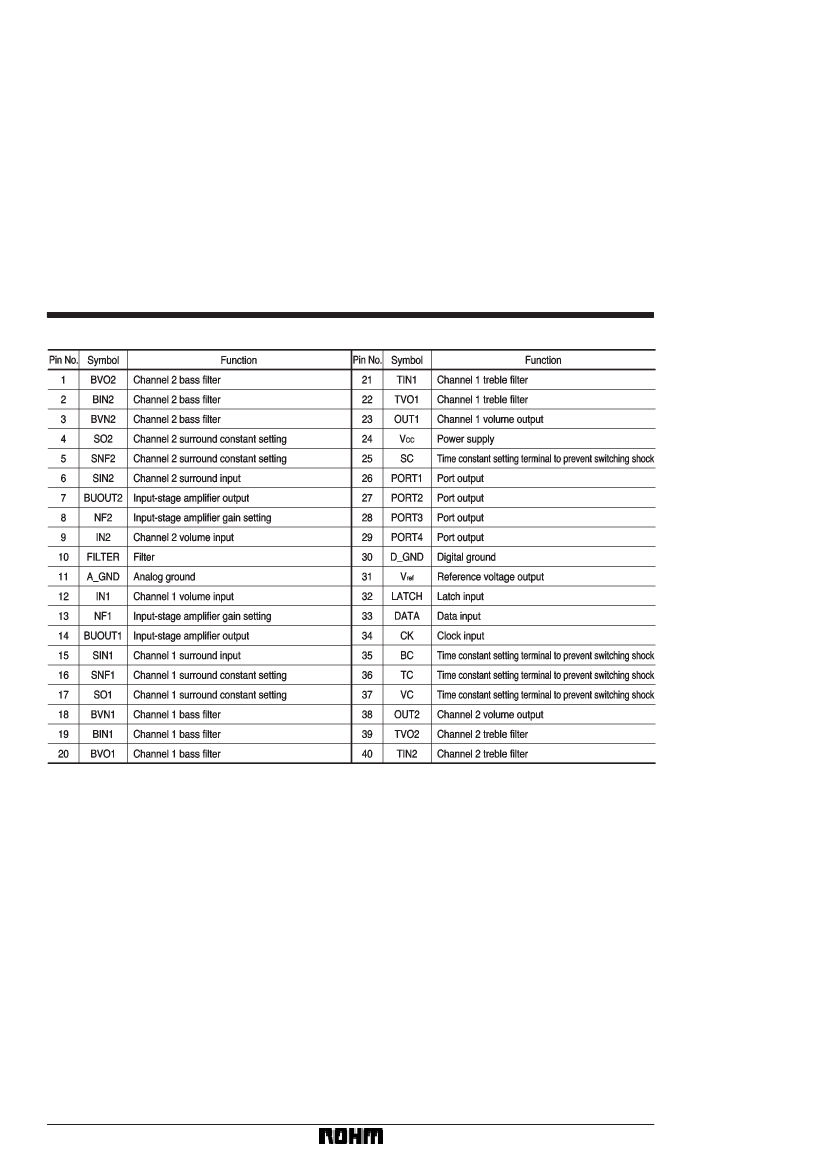

664
