BH6504K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BH6504K

BH6504K: DescriptionBRUSH DC MOTOR CONTROLLER, 0.5 A, PQFP44; CategoryOther integrated circuit (IC) The signal circuit; File Size253KB，15 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BH6504K Overview

BRUSH DC MOTOR CONTROLLER, 0.5 A, PQFP44

BH6504K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	QFP
package instruction	QFP, QFP44,.57SQ,32
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	S-PQFP-G44
length	10 mm
Number of functions	4
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.57SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	1.5,2.4,3.0 V
Certification status	Not Qualified
Maximum seat height	2.25 mm
Maximum supply voltage (Vsup)	4.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Optical disc ICs

PWM driver for CD and MD players

BH6504K

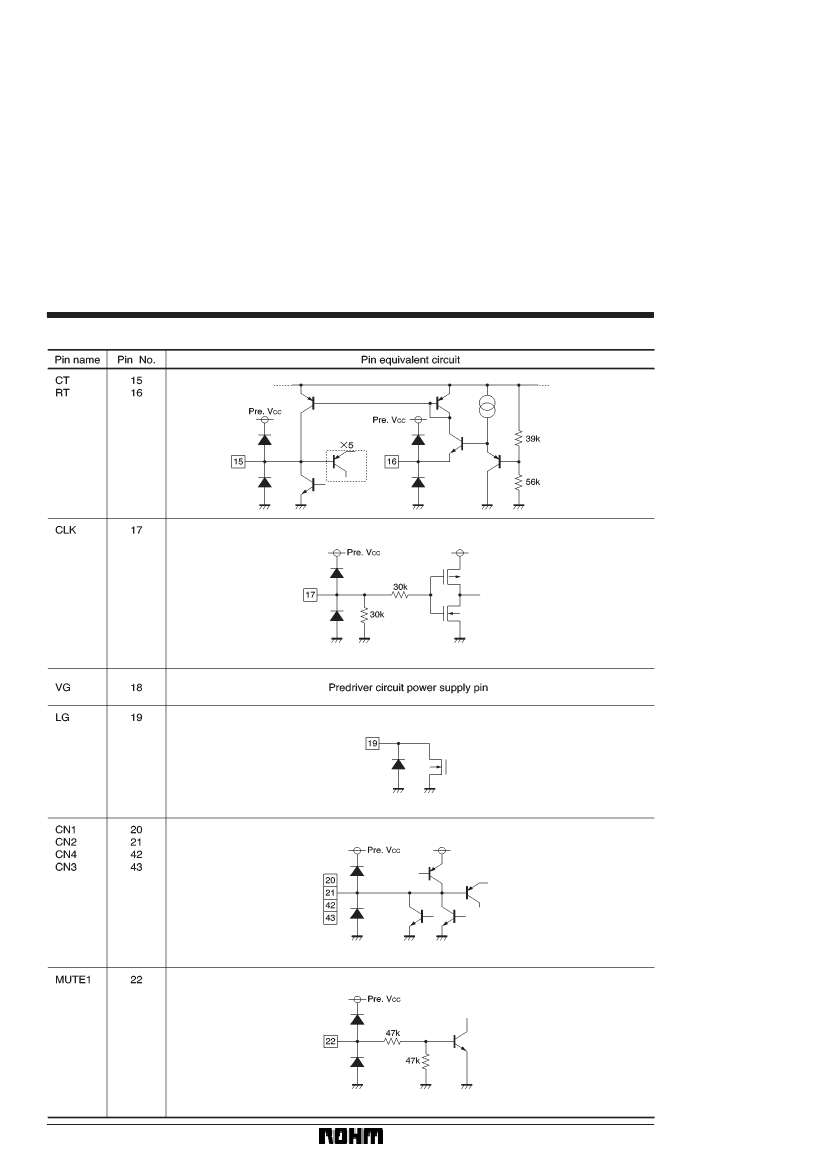

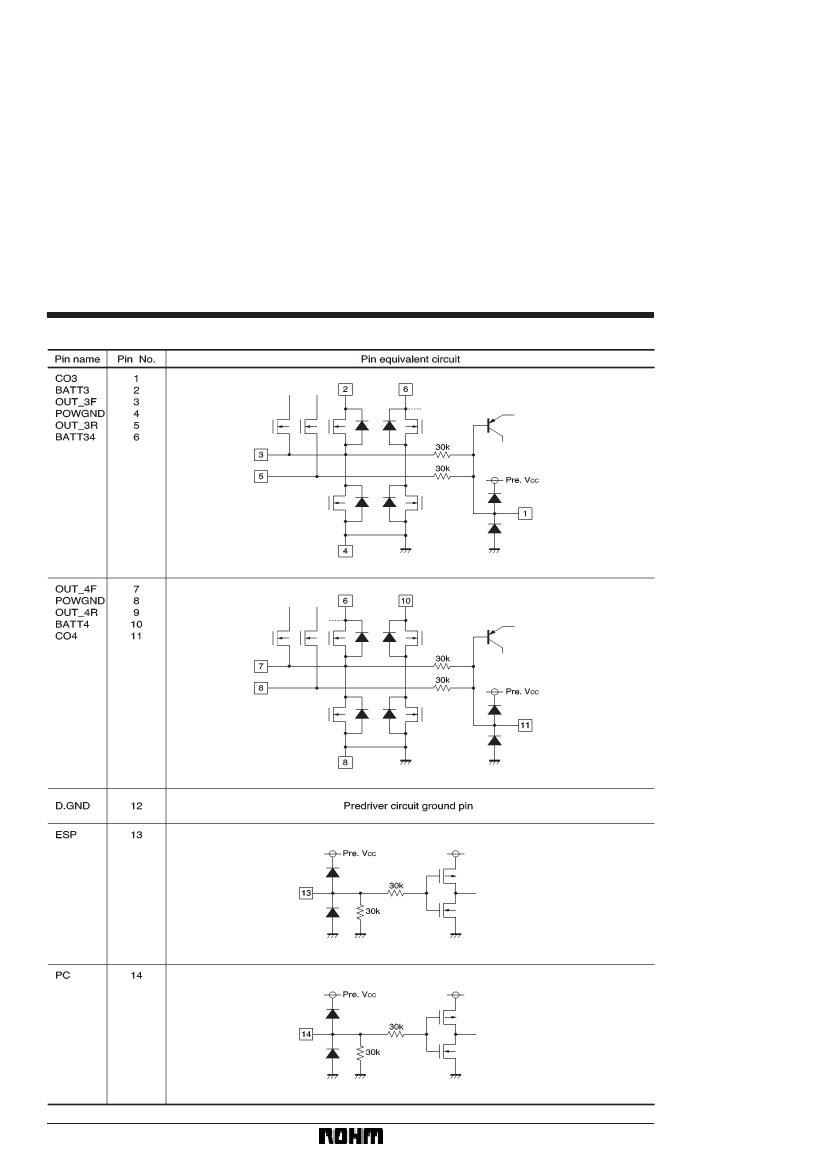

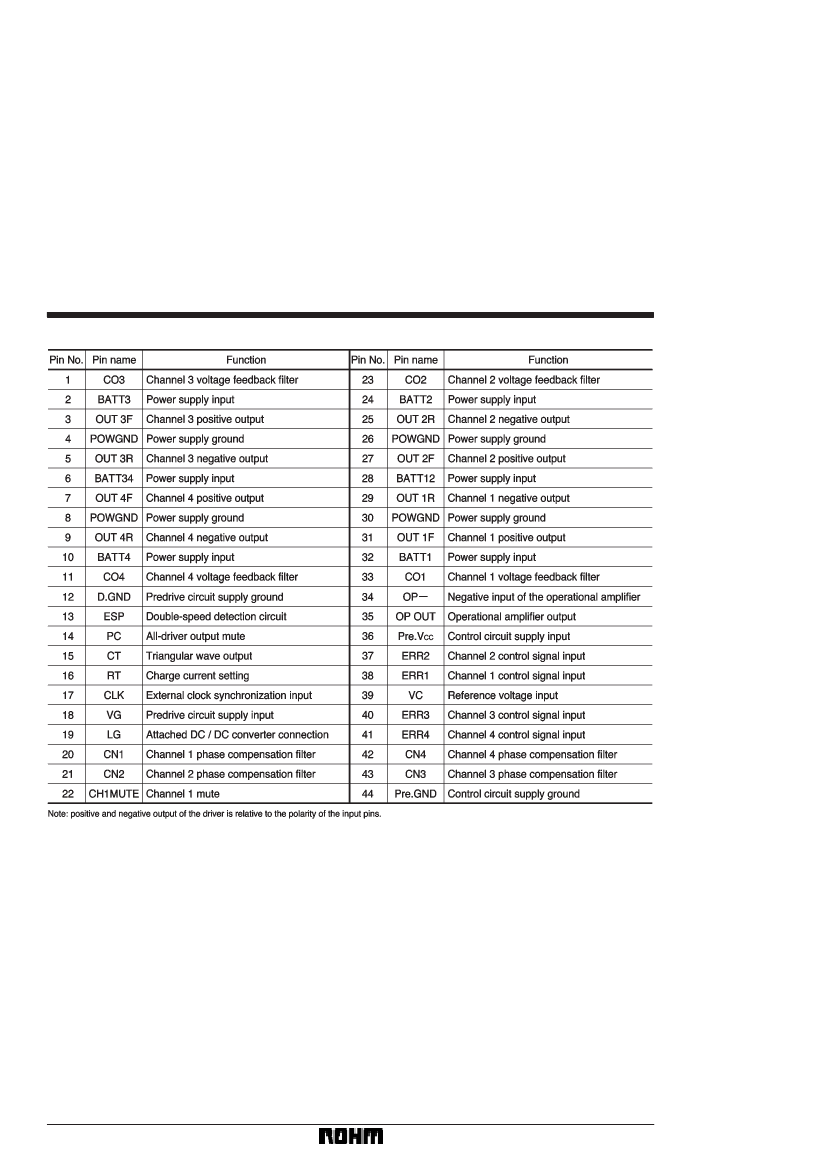

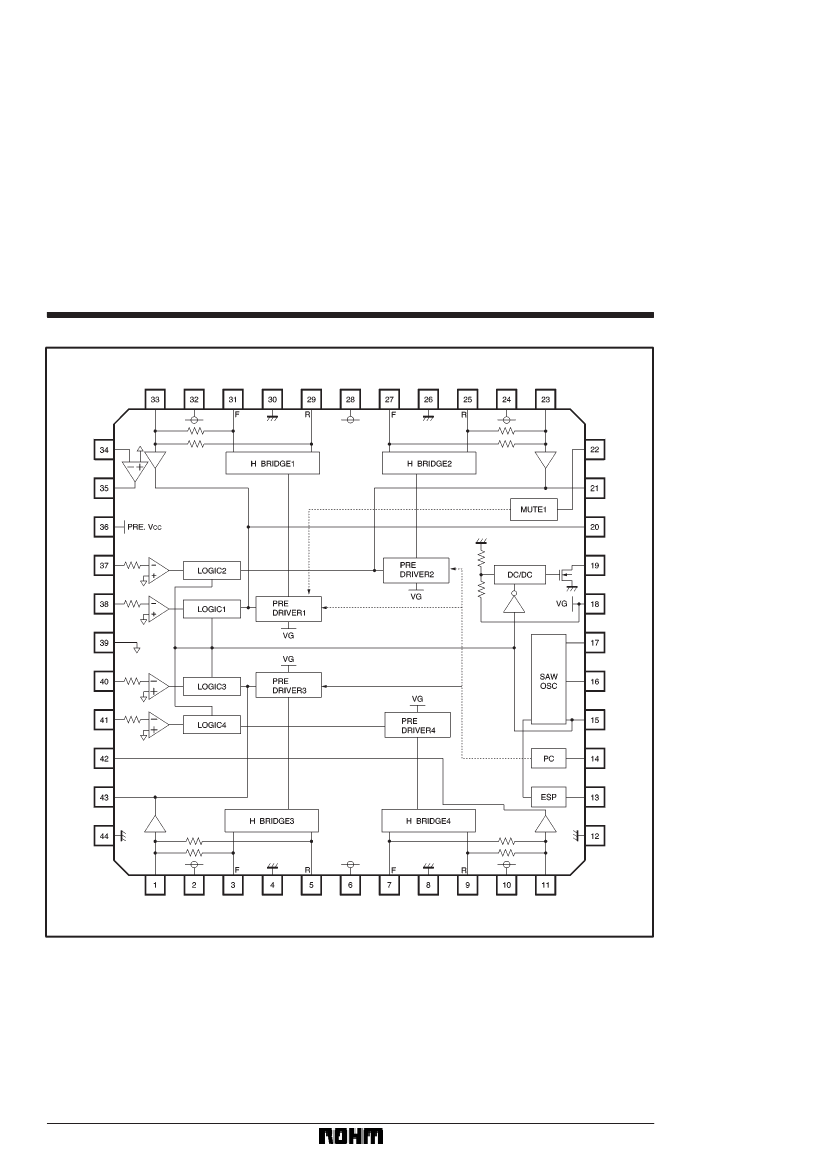

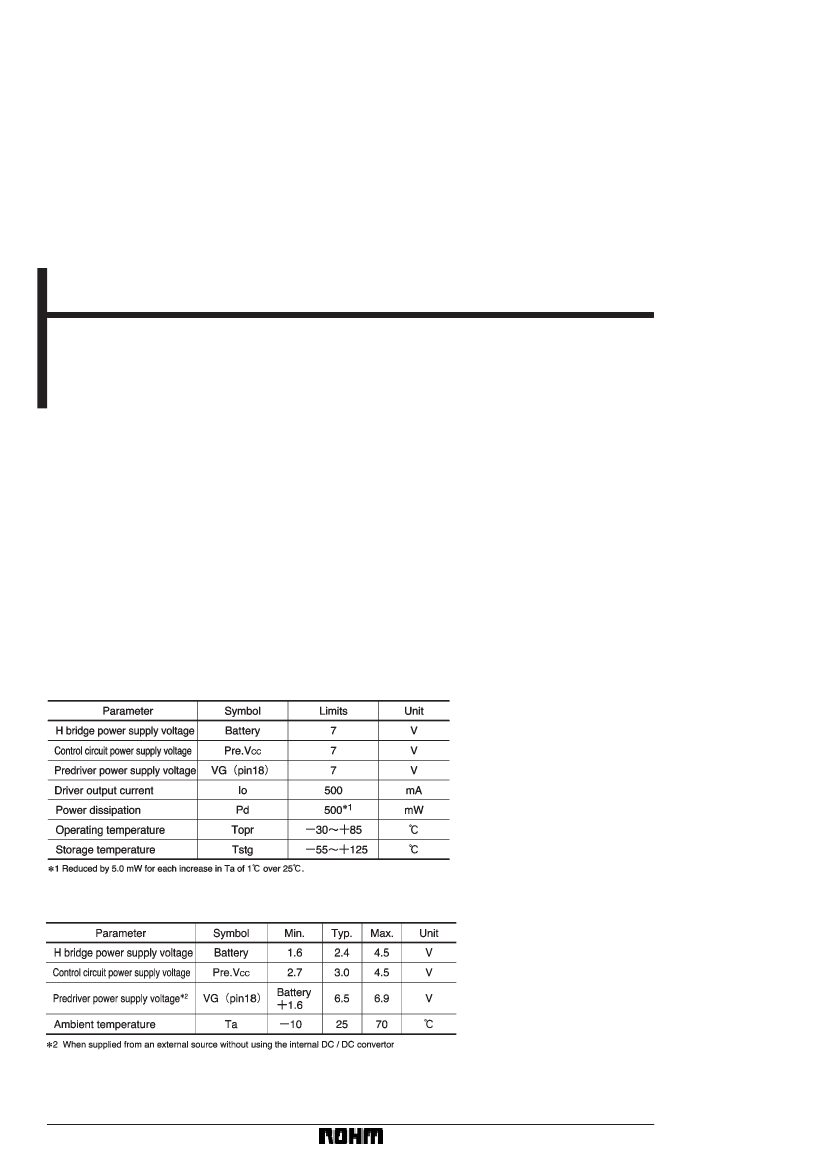

The BH6504K is a 4-channel PWM driver designed for CD and MD player motors and actuator drives. The power MOF-

SET output stage allows for applications with low power consumption. This IC also has a charge pump circuit and stan-

dard operational amplifier (needed for power MOSFET gate drives), and so supports a wide spectrum of applications.

FApplications

Portable CD players, MD players

FFeatures

1) Low power consumption.

2) A minimum of attached components.

3) Excellent gain precision because of the voltage feed-

back circuit.

4) Internal mute function for channel 1.

FAbsolute

maximum ratings (Ta = 25_C)

5) Allows for free-running and clock synchronization op-

eration.

6) Internal standard operational amplifier.

7) Internal charge pump circuit for gate drive.

8) Switchable to doubled clock synchronization.

FRecommended

operating conditions

226

Recommended Resources

Sawtooth wave generator circuit (1)

SL517 integrated circuit appearance and internal circuit

Direct field-oriented speed control of asynchronous motors

Varactor frequency modulation circuit

Typical application circuit diagram of IR2155

Main parasitic components and equivalent circuit of IGBT (NPT type structure)

The PIN tube op amp has two stages of amplification. The first stage introduces background noise. How to remove it?: [size=14px]Hi everyone, I made a set of boards according to the [/size][color=#4298ba][size=14px]circuit[/size][/color][size=14px]boards drawn in the schematic diagram, [/size][color=#4298ba][size=14p...; ekuizhang Analog electronics

Come and see ST’s solution showcase at CommunicAsia 2017!: Visitors to the ST booth can see a wide range of advanced driver assistance system (ADAS) components on the car smart cockpit model. Aiming to promote major progress in autonomous driving technology, ...; soso ST Sensors & Low Power Wireless Technology Forum

Official notice that SensorTag has been postponed to April 30, 2014!: I have communicated with most of the participants privately, and everyone generally reflected that the time was tight and the task was heavy, so we now officially notify you that the SensorTag competi...; phantom7 TI Technology Forum

Regarding the compilation error of the new project, please have a look at it: I created an MFC project based on the CHSEmu simulator in VS2005, but the error fatal error C1083: Cannot open include file: 'aygshell.h': No such file or directory appeared during compilation. The MF...; davidli88 Embedded System

Improving the design accuracy of GSM (EDGE) products: Although the third generation (3G) wireless communication technology has begun to emerge, wireless system designers have not slowed down their efforts to improve the data processing capabilities of ex...; tmily RF/Wirelessly

ARM Classic 300 Questions.pdf: Those who study ARM must read it, it is very useful....; mxdaiyi ARM Technology
