MS09STG8AH6U: DescriptionIC Socket, SIP9, 9 Contact(s), 2.54mm Term Pitch, Solder; CategoryThe connector socket; File Size125KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

MS09STG8AH6U Overview

IC Socket, SIP9, 9 Contact(s), 2.54mm Term Pitch, Solder

MS09STG8AH6U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.1 inch
subject depth	0.232 inch
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	SIP9
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	9
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

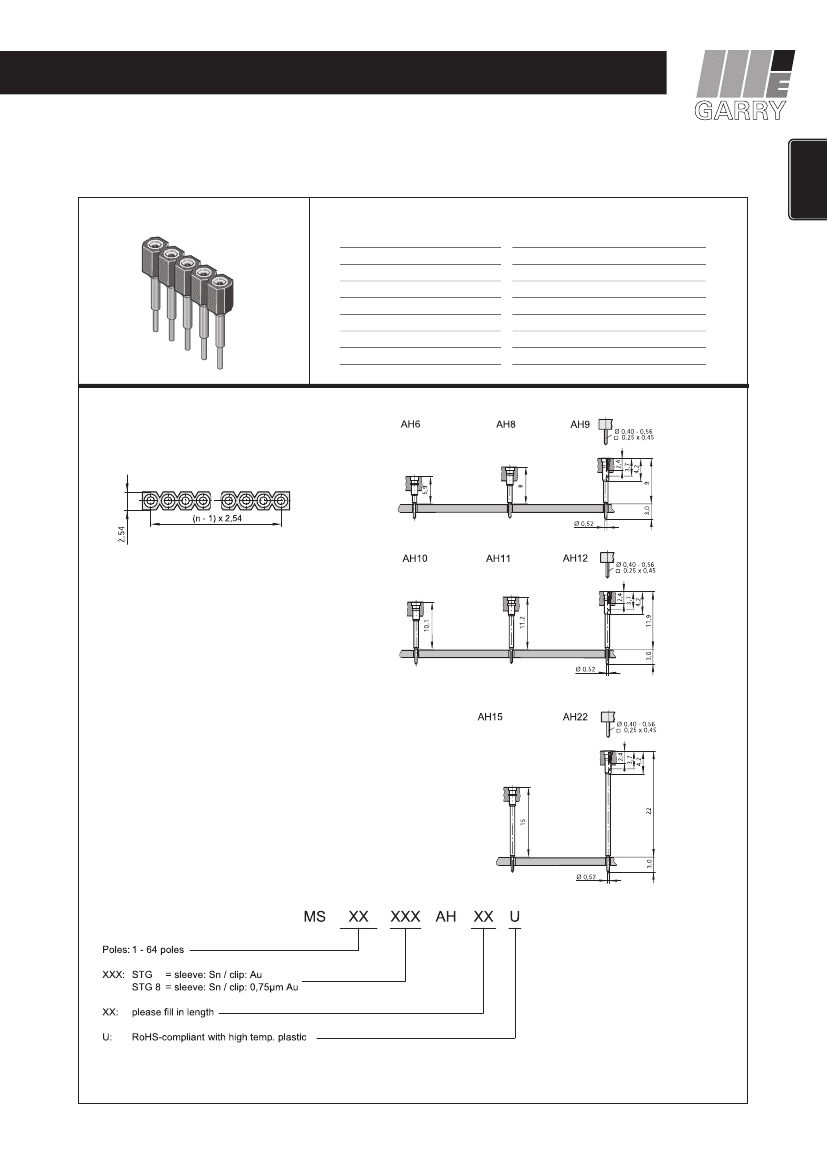

PRODUCT GROUP 1 - PRECISION IC-SOCKET

Series 125

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Breakdown Voltage

Operating Temperature

Maximum Soldering Temperature

2,54 mm

high temp. thermoplast UL94V-0

Brass/BeCu

3 Amp.

100 V

RMS

/150 V

DC

min. 1000 V

RMS

-55°C bis +125°C

260°C for 10 seconds

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

25

1

| 2,54 mm

SIL SOCKETS „THROUGH HOLE”

ID: 027

MS AH-spacer
