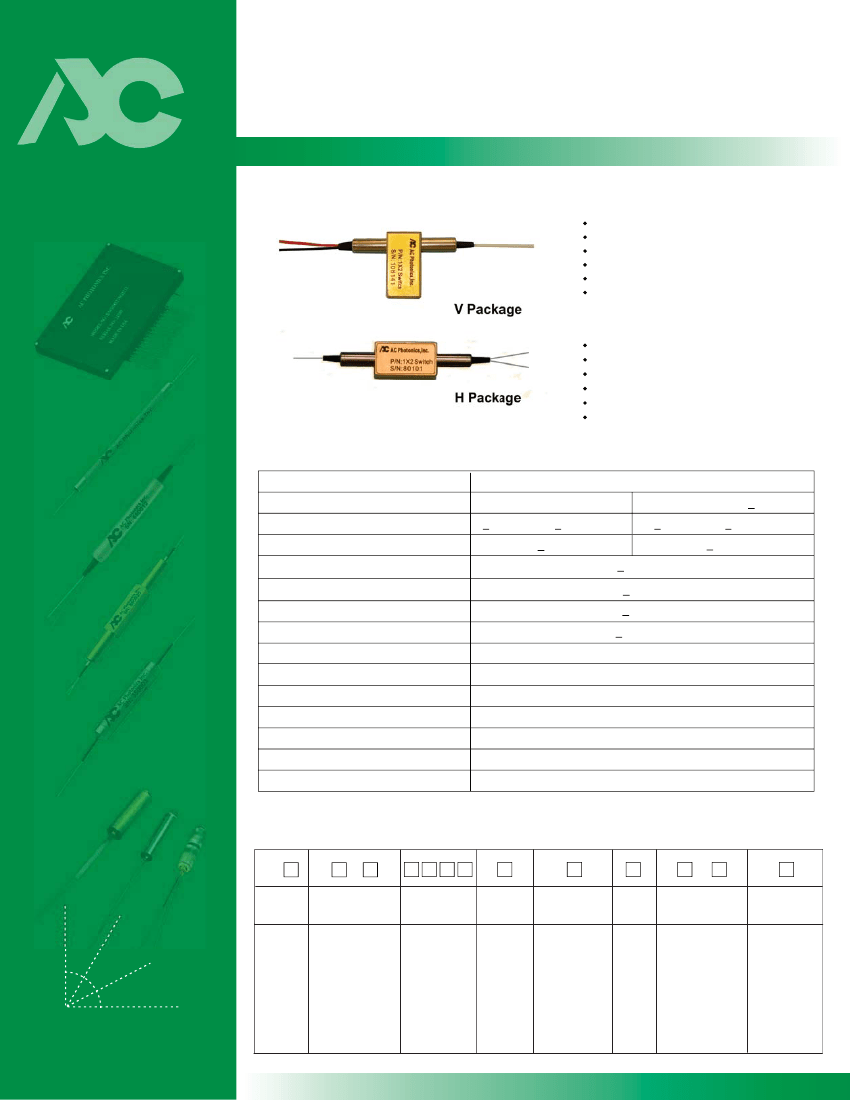

1x2 Mechanical Fiberoptic Switch
Features
AC Photonics' MS Series switch
connects optical channels by
redirecting an incoming optical
signal into a selected output fiber.
This is achieved using patent
pending
opto-mechanical
Unmatched Low Cost
Low Insertion Loss
Latching or Non Latching
High Channel Isolation
High Stable and Reliable
Epoxy-Free Optical Path
Applications
Optical Signal Routing
Optical Network Protection/Restoration
Configurable Optical Add/Drop
Transmitter and R eceiver Protection
Network Test Systems
Instrumentation
proprietary configurations and
activated via an electrical control
signal.
The
switch
offers
Perfor mance Specifications
Parameter
Operating Wavelength (nm)
Insertion Loss (dB)
SPECIFICATION
1260 ~ 1360 or 1510 ~ 1610
<0.5(P Grade), <0.8(A Grade)
<0.25
<0.05
>55
>55
<±0.02
4(typ.)
5
500
10 Million
0~+70
-45~+85

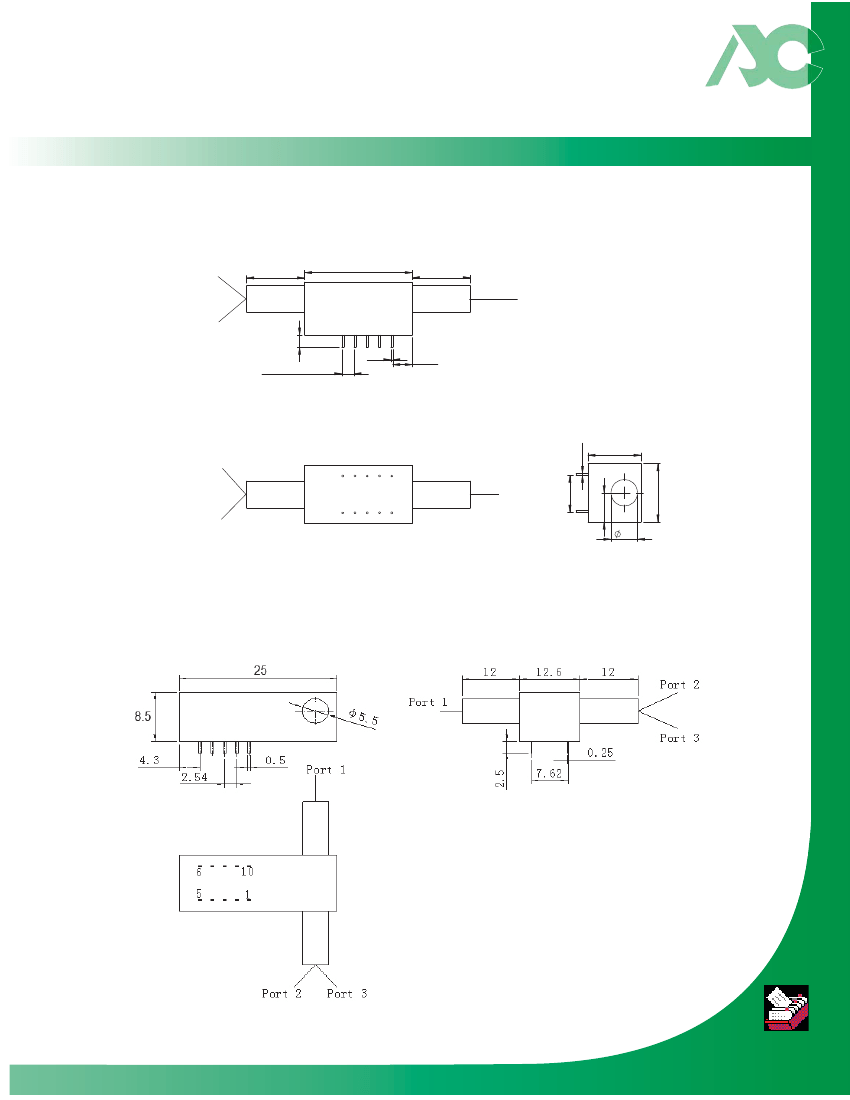

H Package 22.3x12.1x11.0; V Package 25x12.6x8.5
1310/1550+40
<0.7(P Grade), <1.0(A Grade)
<0.30
ultra-high reliability and fast
switching speed as well as
Wavelenght Dependent Loss(WDL)(dB)
PDL (dB)
Cross Talk (dB)
bi-directional performance. The
MS fiberoptic switches are
true switching solutions for
optical networking applications.
Return Loss (dB)
Repeatability(dB)
Switching Speed(ms)
Drive Vol tage(v)
Power Handling(mW)
Durability (Cycles)
Operating Temperature (°C)
Storage Temperture(°C)
Dimensions (mm)
Specifications may change without notice
Ordering Infor mation
MS
Option
L=
Latching
N=Non
Laching
Operating
Wavelength
15=1510~1610nm
13=1260~1360nm
35=1310/1550nm
Port
0102=1x2
Grade
P=Pgrade
A=Agrade
Pigtail Style
1=Bare Fiber
2=900um Jacket
Fiber
Length
In/Out Connector
1=1m
2=2m
0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC
Package
H=H Package
V=V Package
