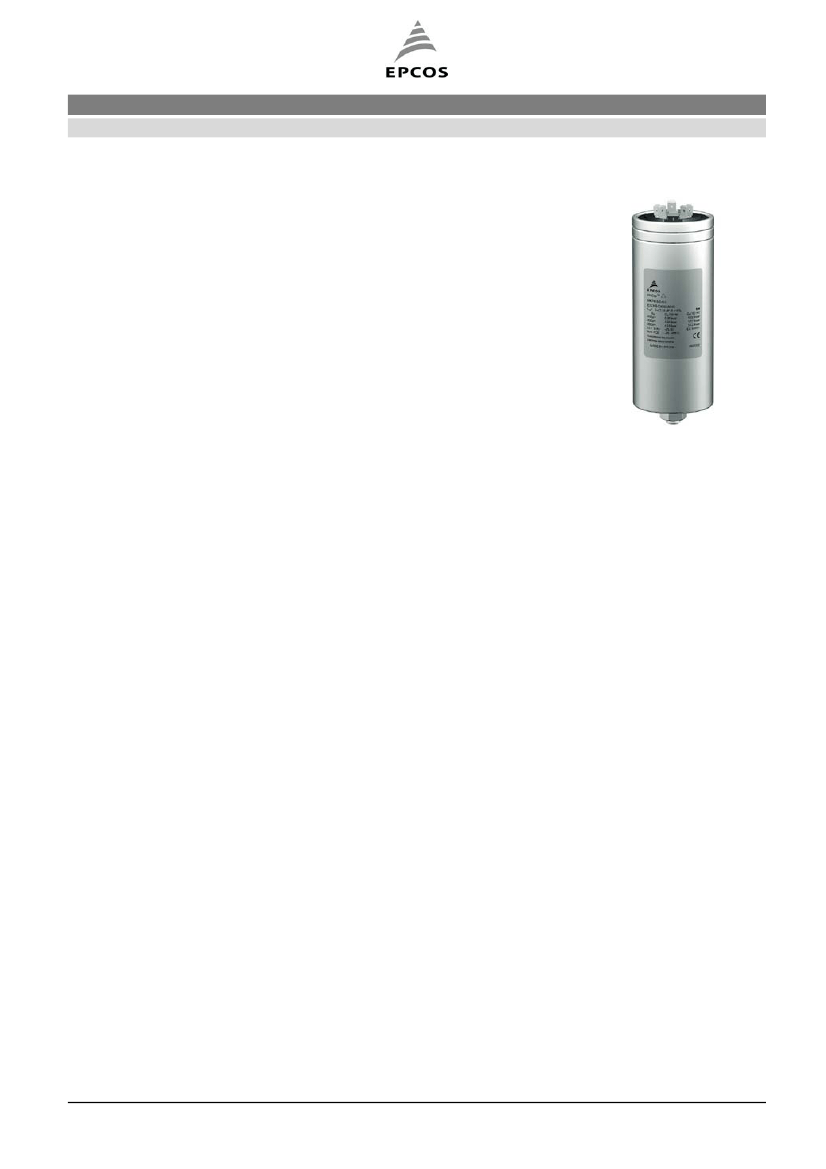

Power Capacitors
Power Factor Correction
B32343C
Construction
Dielectric: Polypropylene film
Non PCB, biodegradable soft resin
Extruded round aluminum can with stud
Provided with discharge resistors
Features
Three phase, delta connected
Naturally air cooled or forced air cooling
Indoor mounting
Typical applications
PFC and detuned systems
Terminals
Fast-on terminals
Mounting parts
Threaded stud at bottom of can
Max. torque = 4 Nm for M8 (Ø 53 mm)
Max. torque = 10 Nm for M12 (Ø 63.5 mm)
FK PM PFC
Page 1 of 6
December 2004
Power Capacitors
Power Factor Correction
B32343C
Technical data and specifications
Standard
Rated capacitance
C
N
&
Q
R
Tolerance (%)
Rated voltage
U
R
Rated frequency
f
R
Mean life expectancy
Maximum ratings
Maximum permissible overvoltage
U
max
U
R
+ 10% (up to 8 h daily)
U
R
+ 15% (up to 30 min daily),
U
R
+ 20% (up to 5 min daily)
U
R
+ 30% (up to 1 min daily)
1.5 x
I
R
(I
R
: rated current), including combined effects
of harmonics, overvoltages and capacitance
Max. 5 000 switchings per year according IEC 831
Up to 200 x
I
R
< 0.2 W/kvar
< 0.45 W/kvar
2.15 x
U
R
, 10 s
3 000
V
AC
, 10 s
-25/D
Max. temp. 55 °C
Max. mean 24 h = 45 °C
Max. mean 1 year = 35 °C
Safety
Self-healing technology, overpressure disconnector,
maximum allowed fault current 10 000 A in accordance
with UL 810-standard
Aluminum/cylindrical
IP00, IP20, optionally IP54
95%
4 000 m above sea level
Upright
Threaded M8 (4 Nm / Ø 53 mm),
M12 (10 Nm / Ø 63.5mm)
IEC 831-1+2, IS: 13340/41
UL 810 5
th
edition, cUL file E106388
According to dimensions table
-5 / +10
According to dimensions table
50/60 Hz
Up to 100 000 operating hours
Maximum permissible overcurrent
I
max
Number of switching operations
Transient inrush current (max)
I
S
Losses:
Dielectric
Total
Test voltage, terminal/terminal
U
TT
Test voltage, terminal/case
U
TC
Temperature class
Case/shape
Enclosure
Permissible maximum humidity
Maximum permissible altitude
Mounting position
Mounting and grounding
FK PM PFC
Page 2 of 6
December 2004
Power Capacitors
Power Factor Correction
Rated voltage: 230 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
MKP230-D-0.5
MKP230-D-0.7
MKP230-D-1.0
MKP230-D-1.5
0.5
0.7
1.0
1.5
I
R
A
1.3
1.9
2.5
3.8
60 Hz
Output
kvar
0.6
0.9
1.2
1.8
I
R
A
1.6
2.3
3.0
4.6
C
N
µF
3 * 10
3 * 15
3 * 20
3 * 30
dxh
mm
53 x 114
53 x 114
63.5 x 129
63.5 x 129
Weight
B32343C
Ordering code
kg
0.30
0.30
0.30
0.40
B32343C2002A530
B32343C2002A730
B32343C2012A030
B32343C2012A530
Rated voltage: 400 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
MKP400-D-1.0
MKP400-D-1.5
MKP400-D-2.0
MKP400-D-2.5
MKP400-D-5.0
1.0
1.5
2.0
2.5
5.0
I
R
A
1.4
2.2
2.9
3.6
7.2
60 Hz
Output
kvar
1.2
1.8
2.4
3.0
6.0
I
R
A
1.7
2.6
3.5
4.3
8.6
C
N
µF
3*7
3 * 10
3 * 13
3 * 17
3 * 33
dxh
mm
53 x 114
53 x 114
63.5 x 129
63.5 x 129
63.5 x 129
Weight
Ordering code
kg
0.30
0.30
0.40
0.40
0.40
B32343C4012A000
B32343C4012A500
B32343C4022A000
B32343C4022A500
B32343C4052A000
Rated voltage: 415 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
1.0
1.5
2.0
2.5
5.0
I
R
A
1.4
2.1
2.8
3.5
7.0
60 Hz
Output
kvar
1.2
1.8
2.4
3.0
6.0
I
R
A
1.6
2.4
3.4
4.2
8.4
C
N
µF
3*6
3*9
3 * 12
3 * 15
3 * 31
dxh
mm
53 x 114
53 x 114
53 x 114
63.5 x 129
63.5 x 154
Weight
Ordering code
kg
0.30
0.30
0.40
0.40
0.40
B32343C4012A010
B32343C4012A510
B32343C4022A010
B32343C4022A510
B32343C4052A010
MKP415-D-1.0
MKP415-D-1.5
MKP415-D-2.0
MKP415-D-2.5
MKP415-D-5.0
Rated voltage: 440 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
MKP440-D-0.9
MKP440-D-1.0
MKP440-D-1.2
MKP440-D-1.5
MKP440-D-2.1
MKP440-D-2.5
MKP440-D-4.2
MKP440-D-5.0
0.9
1.0
1.2
1.5
2.1
2.5
4.2
5.0
I
R
A
1.2
1.3
1.6
2.0
2.7
3.3
5.5
6.5
60 Hz
Output
kvar
1.0
1.2
1.5
1.8
2.5
3.0
5.0
6.0
I
R
A
1.3
1.6
2.0
2.3
3.3
3.9
6.6
7.8
C
N
µF
3*5
3*6
3*7
3*8
3 * 11
3 * 13
3 * 23
3 * 27
dxh
mm
53 x 114
53 x 114
53 x 114
53 x 114
53 x 114
63.5 x 129
63.5 x 129
63.5 x 154
Weight
Ordering code
kg
0.30
0.30
0.30
0.30
0.40
0.30
0.40
0.50
B32343C4011A040
B32343C4012A040
B32343C4011A540
B32343C4012A540
B32343C4021A540
B32343C4022A540
B32343C4051A040
B32343C4052A040
Rated voltage: 480 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
MKP480-D-1.5
MKP480-D-2.0
MKP480-D-2.5
1.5
2.0
2.5
I
R
A
1.8
2.4
3.0
60 Hz
Output
kvar
1.8
2.4
3.0
I
R
A
2.2
2.9
3.6
C
N
µF
3*7
3*9
3 *11
dxh
mm
63.5 x 129
63.5 x 129
63.5 x 129
Weight
kg
0.40
0.40
0.40
B32343C4012A580
B32343C4022A080
B32343C4022A580
Ordering code
FK PM PFC
Page 4 of 6
December 2004
