EURO
QUARTZ
Very High Stability
Very high stability, from ±0.04ppm over 0 to +50°C
Frequency Range: 10MHz - 60MHz
Output Signal: CMOS or Sine wave
ZT5050 SERIES TCXO
10MHz to 60MHz
DESCRIPTION
ZT5050 TCXOs are very high stability TCXOs combining Analogue
and Digital techniques to produce a TCXO for applications requiring
low power consumption and excellent temperature stability.

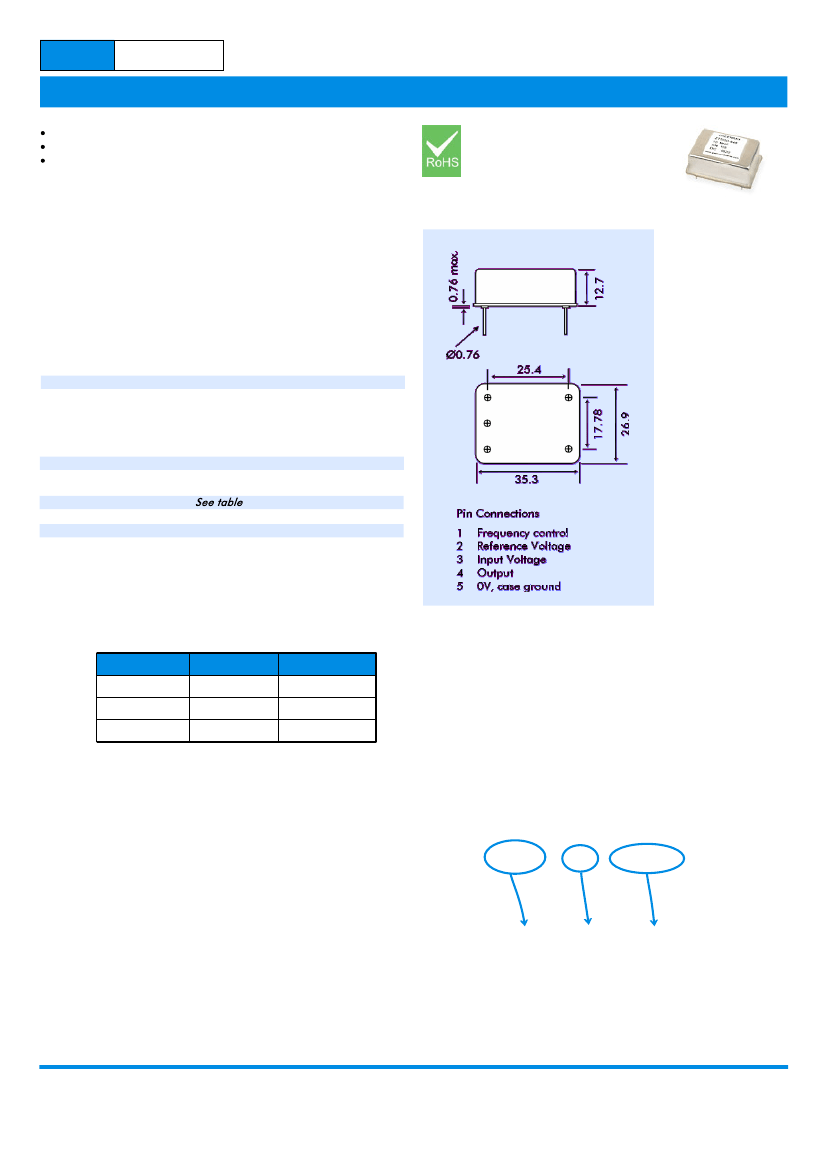

ZT5050 - OUTLINES AND DIMENSIONS
SPECIFICATIONS
Frequency Range:
Output
Series ZT5050:
Series ZT5051:
Series ZT5052:
Series ZT5053:
Input Voltage:
Input Current:
Temperature Stability:
Frequency Control:
Ageing:
10.0MHz to 60.0MHz
CMOS, (5.0V supply)
Sine Wave, (5.0V supply)
CMOS, (3.3V supply)
Sine Wave, (3.3V supply)
±3.3VDC±5% or +5.0VDC±5%
45mA max at 10.0MHz
<30MHz: 20mA max.
>±5ppm 0 to 3.3V, positive slope
±1.0ppm/year
STABILITY OVER TEMPERATURE
Temp. Range
0~+50°C
-20~+70°C
-40~+85°C
Stability
±0.04ppm
±0.05ppm
±0.07ppm
Part No. Code
B48
N58
T78
PART NUMBERING
Example:
ZT5050-B48-10.0MHz
ZT5050 - B48 - 10.0MHz
Model number - Stability - Frequency
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
