L7805CV | 3-Pin Linear Regulator datasheet, PDF

Datasheet> All Categories > L7805CV | 3-Pin Linear Regulator

L7805CV | 3-Pin Linear Regulator: DescriptionStandard Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220AB Tube; File Size1MB，55 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

L7805CV | 3-Pin Linear Regulator Overview

Standard Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220AB Tube

L7805CV | 3-Pin Linear Regulator Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	1.5
Maximum Input Voltage (V)	35
Line Regulation	100mV
Load Regulation	100mV
Maximum Quiescent Current (mA)	8
Junction to Ambient	50°C/W
Junction to Case	5°C/W
Special Features	Current Limit\|Safe Area Protection\|Short Circuit Protection\|Thermal Shutdown Protection
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	125
Packaging	Tube
Supplier Package	TO-220AB
Pin Count	3
Standard Package Name	TO-220
Mounting	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
Lead Shape	Through Hole

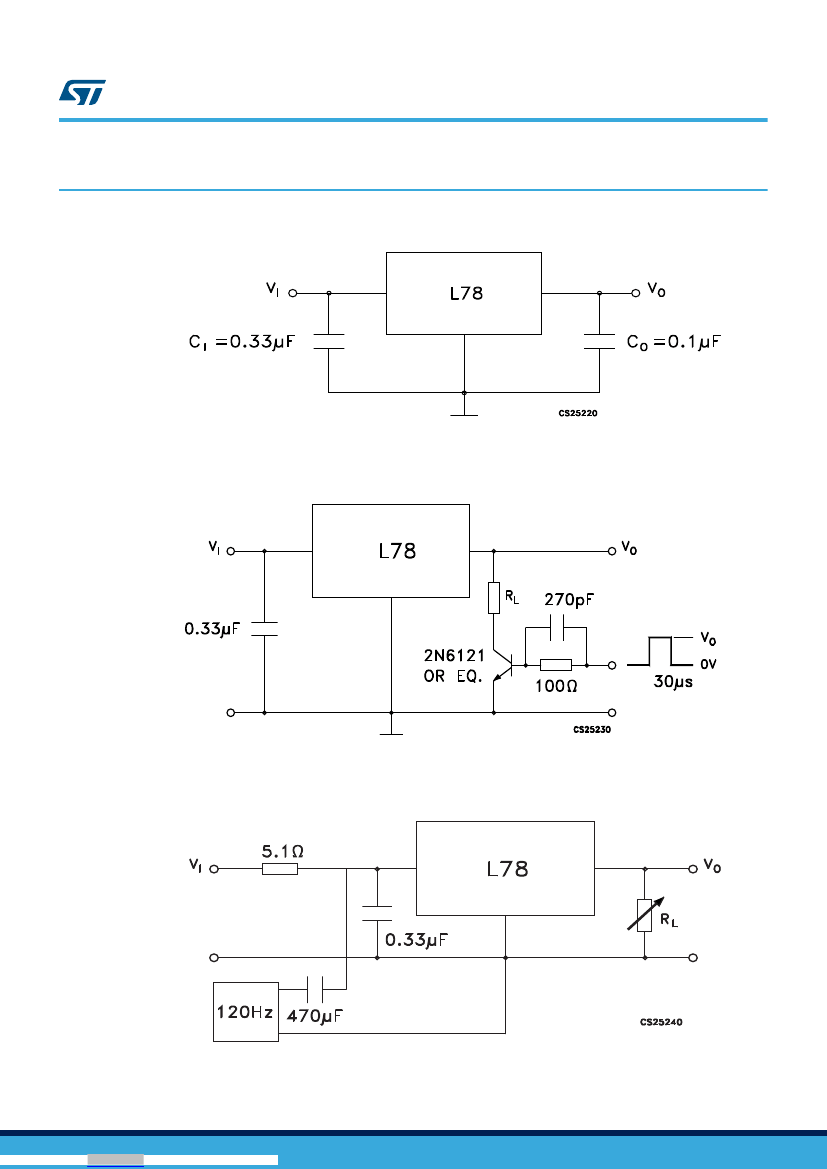

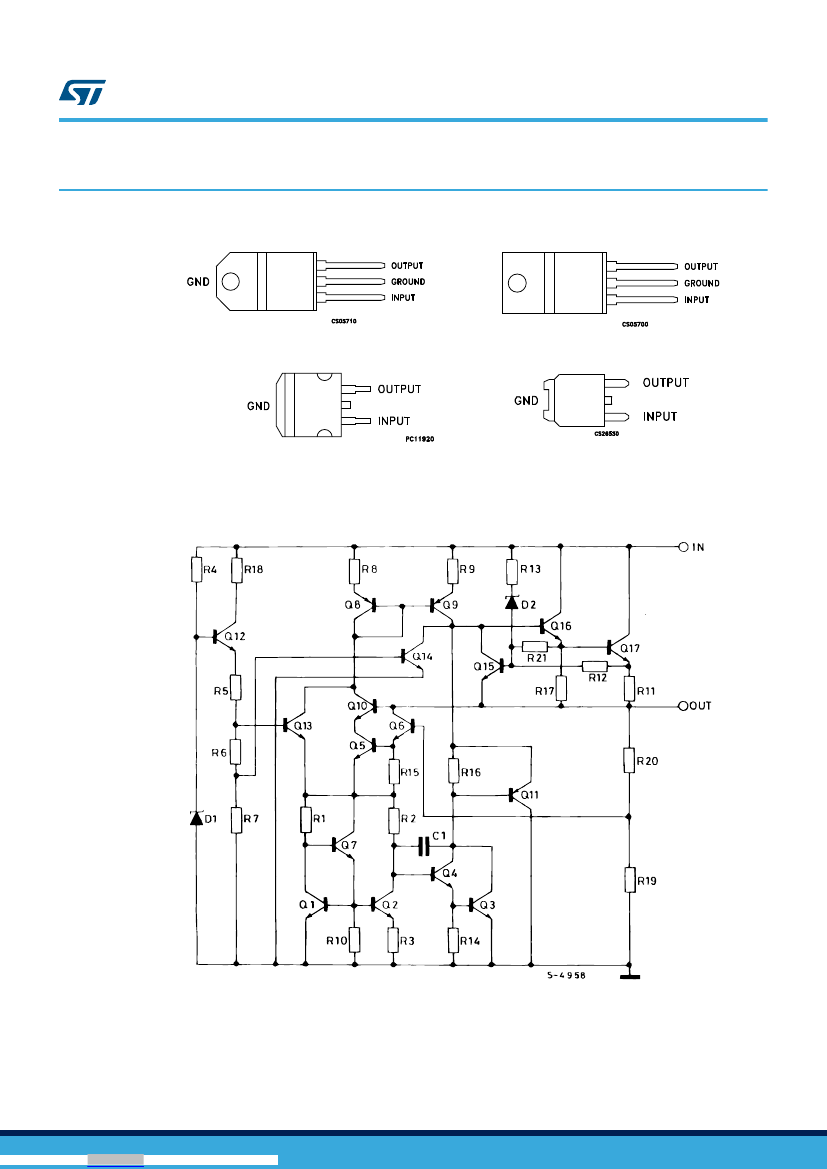

Preview

Download Datasheet

View All

L78

Datasheet

Positive voltage regulator ICs

Features

•

Output current up to 1.5 A

Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

Thermal overload protection

Short circuit protection

Output transition SOA protection

2 % output voltage tolerance (A version)

Guaranteed in extended temperature range (A version)

TO-220

TO-220FP

DPAK

D²PAK

Description

The

L78

series of three-terminal positive regulators is available in TO-220,

TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it

useful in a wide range of applications.

These regulators can provide local on-card regulation, eliminating the distribution

problems associated with single point regulation. Each type embeds internal current

limiting, thermal shut-down and safe area protection, making it essentially

indestructible. If adequate heat sinking is provided, they can deliver over 1 A output

current. Although designed primarily as fixed voltage regulators, these devices can

be used with external components to obtain adjustable voltage and currents.

Maturity status link

L78

DS0422

Rev 36

September 2018

For further information contact your local STMicroelectronics sales office.

www.st.com
