LT1168IN8 datasheet, PDF - EEWORLD Datasheet

LT1168IN8: DescriptionINST Amp Single ±18V Automotive 8-Pin PDIP N; File Size334KB，20 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

LT1168IN8 Overview

INST Amp Single ±18V Automotive 8-Pin PDIP N

LT1168IN8 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Number of Channels per Chip	1
Minimum CMRR (dB)	85
Minimum CMRR Range (dB)	85 to 95
Minimum PSRR (dB)	100
Maximum Input Offset Voltage (mV)	0.06@±15V
Maximum Operating Supply Voltage (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±2.3
Typical Dual Supply Voltage (V)	±15\|±3\|±5\|±9\|±12
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.0005@±15V
Maximum Supply Current (mA)	0.53@±15V
Typical Output Current (mA)	32@±15V
Maximum Input Resistance (MOhm)	1250000(Typ)@±15V
Power Supply Type	Dual
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Pin Count	8
Standard Package Name	DIP
Supplier Package	PDIP N
Mounting	Through Hole
Package Height	3.3
Package Length	10.16(Max)
Package Width	6.48
PCB changed	8
Lead Shape	Through Hole

Preview

Download Datasheet

View All

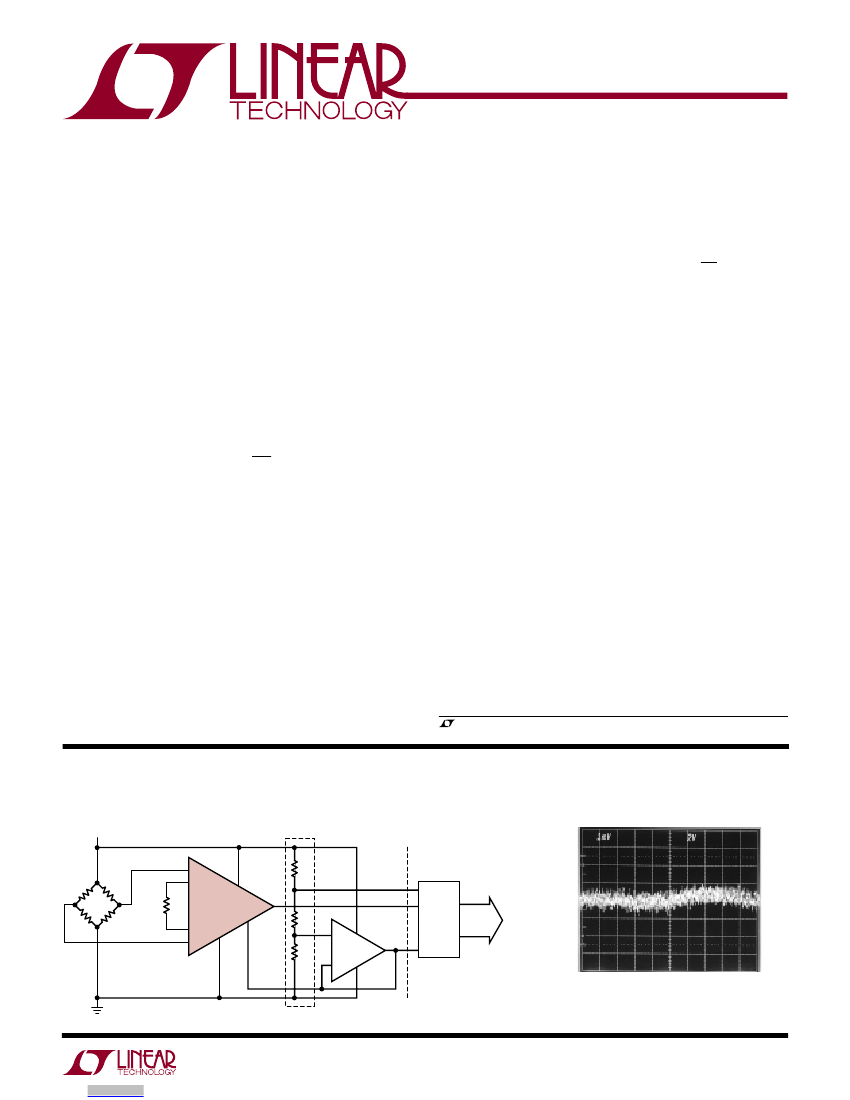

FEATURES

■

LT1168

Low Power, Single

Resistor Gain Programmable,

Precision Instrumentation Amplifier

DESCRIPTIO

The LT

1168 is a micropower, precision instrumentation am-

plifier that requires only one external resistor to set gains of

1 to 10,000. The low voltage noise of 10nV/√Hz (at 1kHz) is

not compromised by low power dissipation (350µA typical for

±15V

supplies). The wide supply range of

±2.3V

±18V

allows

the LT1168 to fit into a wide variety of industrial as well as

battery-powered applications.

The high accuracy of the LT1168 is due to a 20ppm maximum

nonlinearity and 0.4% max gain error (G = 10). Previous mono-

lithic instrumentation amps cannot handle a 2k load resistor

whereas the nonlinearity of the LT1168 is specified for loads

as low as 2k. The LT1168 is laser trimmed for very low input

offset voltage (40µV max), drift (0.3µV/°C), high CMRR (90dB,

G = 1) and PSRR (103dB, G = 1). Low input bias currents of

250pA max are achieved with the use of superbeta process-

ing. The output can handle capacitive loads up to 1000pF in

any gain configuration while the inputs are ESD protected up

to 13kV (human body). The LT1168 with two external 5k

resistors passes the IEC 1000-4-2 level 4 specification.

The LT1168 is a pin-for-pin improved second source for the

AD620 and INA118. The LT1168, offered in 8-pin PDIP and

SO packages, requires significantly less PC board area than

discrete op amp resistor designs. These advantages make

the LT1168 the most cost effective solution for precision

instrumentation amplifier applications.

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

Supply Current: 530µA Max

Meets IEC 1000-4-2 Level 4 (±15kV) ESD Tests

with Two External 5k Resistors

Single Gain Set Resistor: G = 1 to 10,000

Gain Error: G = 10, 0.4% Max

Input Offset Voltage Drift: 0.3µV/°C Max

Gain Nonlinearity: G = 10, 20ppm Max

Input Offset Voltage: 40µV Max

Input Bias Current: 250pA Max

PSRR at A

=1: 103dB Min

CMRR at A

= 1: 90dB Min

Wide Supply Range:

±2.3V

±18V

1kHz Voltage Noise: 10nV/√Hz

0.1Hz to 10Hz Noise: 0.28µV

P-P

Available in 8-Pin PDIP and SO Packages

APPLICATIO S

■

Bridge Amplifiers

Strain Gauge Amplifiers

Thermocouple Amplifiers

Differential to Single-Ended Converters

Differential Voltage to Current Converters

Data Acquisition

Battery-Powered and Portable Equipment

Medical Instrumentation

Scales

TYPICAL APPLICATIO

Single Supply* Pressure Monitor

BI TECHNOLOGIES

67-8-3 R40KQ, (0.02% RATIO MATCH)

3.5k

G = 200

249Ω

40k

REF

LT1168

20k

40k

ADC

LTC

1286

AGND

DIGITAL

DATA

OUTPUT

3.5k

–

1/2

LT1112

–

1168 TA01

NONLINEARITY (100ppm/DIV)

*See Theory of Operation section

Gain Nonlinearity

G = 1000

= 2k

OUT

±10V

OUTPUT VOLTAGE (2V/DIV)

1168 TA01a

1168fa
