LT1180AISW datasheet, PDF - EEWORLD Datasheet

LT1180AISW: DescriptionDual Transmitter/Receiver RS-232 18-Pin SOIC W; File Size204KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LT1180AISW Overview

Dual Transmitter/Receiver RS-232 18-Pin SOIC W

LT1180AISW Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Function	Line Transceiver
Data Rate	250KBd(Min)
Transmitter Communication Type	RS-232
Receiver Communication Type	RS-232
Interface Standards	EIA-232\|RS-232
Data Transmission Topology	Point-to-Point
Number of Transceivers	1
Number of Transmitters	2
Number of Receivers	2
Transmitter Signal Type	Single-Ended
Receiver Signal Type	Single-Ended
Number of Drivers per Line	1
Number of Receivers per Line	1
Driving Mode	No
Number of Transmitter Enables	0
Number of Receiver Enables	0
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Power Supply Type	Single
Typical Single Supply Voltage (V)	5
Maximum Supply Current (mA)	16
Supplier Temperature Grade	Industrial
Pin Count	18
Supplier Package	SOIC W
Standard Package Name	SOP
Mounting	Surface Mount
Package Height	2.34(Max)
Package Length	11.76(Max)
Package Width	7.6(Max)
PCB changed	18
Lead Shape	Gull-wing

Preview

Download Datasheet

View All

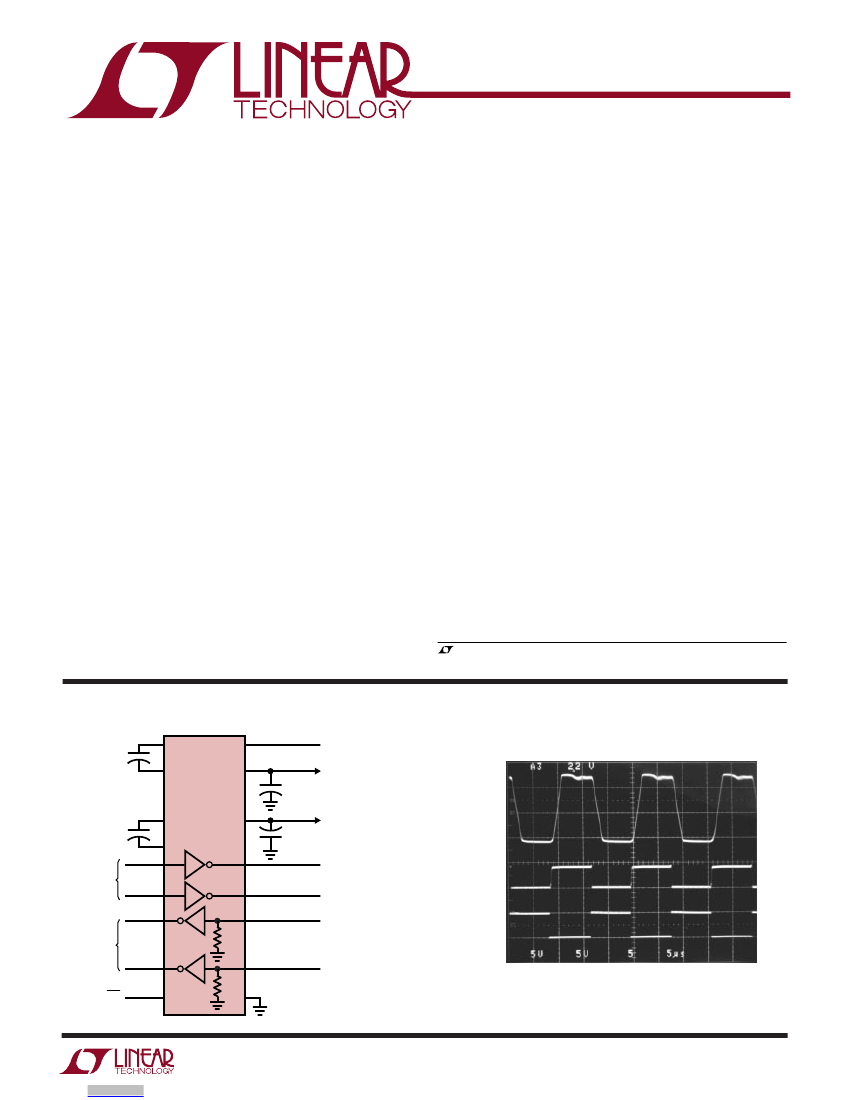

LT1180A/LT1181A

Low Power 5V RS232

Dual Driver/Receiver with

0.1µF Capacitors

FEATURES

DESCRIPTIO

ESD Protection over

±10kV

Uses Small Capacitors: 0.1µF

120kBaud Operation for R

= 3k, C

= 2500pF

250kBaud Operation for R

= 3k, C

= 1000pF

Outputs Withstand

±30V

Without Damage

CMOS Comparable Low Power: 40mW

Operates from a Single 5V Supply

Rugged Bipolar Design

Outputs Assume a High Impedance State When Off

or Powered Down

Meets All RS232 Specifications

Available With or Without Shutdown

Absolutely No Latch-up

Available in SO Package

APPLICATIO S

Portable Computers

Battery-Powered Systems

Power Supply Generator

Terminals

Modems

The LT

1180A/LT1181A are dual RS232 driver/receiver

pairs with integral charge pump to generate RS232 volt-

age levels from a single 5V supply. These circuits feature

rugged bipolar design to provide operating fault tolerance

and ESD protection unmatched by competing CMOS

designs. Using only 0.1µF external capacitors, these cir-

cuits consume only 40mW of power, and can operate to

120k baud even while driving heavy capacitive loads. New

ESD structures on the chip allow the LT1180A/LT1181A to

survive multiple

±10kV

strikes, eliminating the need for

costly TransZorbs

on the RS232 line pins. The LT1180A/

LT1181A are fully compliant with EIA RS232 standards.

Driver outputs are protected from overload, and can be

shorted to ground or up to

±30V

without damage. During

shutdown or power-off conditions, driver and receiver

outputs are in a high impedance state, allowing line

sharing.

The LT1181A is available in 16-pin DIP and SO packages.

The LT1180A is supplied in 18-pin DIP and SO packages

for applications which require shutdown.

, LTC and LT are registered trademarks of Linear Technology Corporation.

TransZorb is a registered trademark of General Instruments, GSI

TYPICAL APPLICATIO

0.1µF

LT1180A

5V INPUT

0.1µF

OUT

DRIVER

OUTPUT

= 3k

= 2500pF

0.1µF

–

OUT

RS232 OUTPUT

RS232 INPUT

LOGIC

INPUTS

RECEIVER

OUTPUT

= 50pF

INPUT

LOGIC

OUTPUTS

RS232 INPUT

ON/OFF

LT1180A • TA01

Output Waveforms

LT1180A • TA02

11801afb

LT1180AISW Related Products

	LT1180AISW	LT1180ACS	LT1180ACSW#PBF	LT1180ACSW#TRPBF	LT1180AISW#PBF	LT1180AISW#TR	LT1180AISW#TRPBF
Description	Dual Transmitter/Receiver RS-232 18-Pin SOIC W	Dual Transmitter/Receiver RS-232 18-Pin SO W	Dual Transmitter/Receiver RS-232 18-Pin SOIC W Tube	Dual Transmitter/Receiver RS-232 18-Pin SOIC W T/R	Dual Transmitter/Receiver RS-232 18-Pin SOIC W Tube	Dual Transmitter/Receiver RS-232 18-Pin SOIC W T/R	Dual Transmitter/Receiver RS-232 18-Pin SOIC W T/R
EU restricts the use of certain hazardous substances	Not Compliant	Not Compliant	Compliant	Compliant	Compliant	Not Compliant	Compliant
ECCN (US)	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Part Status	Unconfirmed	Unconfirmed	Active	Active	Active	Unconfirmed	Active
Function	Line Transceiver	Line Transceiver	Line Transceiver	Line Transceiver	Line Transceiver	Line Transceiver	Line Transceiver
Data Rate	250KBd(Min)	250KBd(Min)	250KBd(Min)	250KBd(Min)	250KBd(Min)	250KBd(Min)	250KBd(Min)
Transmitter Communication Type	RS-232	RS-232	RS-232	RS-232	RS-232	RS-232	RS-232
Receiver Communication Type	RS-232	RS-232	RS-232	RS-232	RS-232	RS-232	RS-232
Interface Standards	EIA-232\|RS-232	EIA-232\|RS-232	EIA-232\|RS-232	EIA-232\|RS-232	EIA-232\|RS-232	EIA-232\|RS-232	EIA-232\|RS-232
Data Transmission Topology	Point-to-Point	Point-to-Point	Point-to-Point	Point-to-Point	Point-to-Point	Point-to-Point	Point-to-Point
Number of Transceivers	1	1	1	1	1	1	1
Number of Transmitters	2	2	2	2	2	2	2
Number of Receivers	2	2	2	2	2	2	2
Transmitter Signal Type	Single-Ended	Single-Ended	Single-Ended	Single-Ended	Single-Ended	Single-Ended	Single-Ended
Receiver Signal Type	Single-Ended	Single-Ended	Single-Ended	Single-Ended	Single-Ended	Single-Ended	Single-Ended
Number of Drivers per Line	1	1	1	1	1	1	1
Number of Receivers per Line	1	1	1	1	1	1	1
Driving Mode	No	No	No	No	No	No	No
Minimum Operating Temperature (°C)	-40	-	-	-	-40	-40	-40
Maximum Operating Temperature (°C)	85	70	70	70	85	85	85
Power Supply Type	Single	Single	Single	Single	Single	Single	Single
Typical Single Supply Voltage (V)	5	5	5	5	5	5	5
Maximum Supply Current (mA)	16	16	16	16	16	16	16
Supplier Temperature Grade	Industrial	Commercial	Commercial	Commercial	Industrial	Industrial	Industrial
Pin Count	18	18	18	18	18	18	18
Supplier Package	SOIC W	SO W	SOIC W	SOIC W	SOIC W	SOIC W	SOIC W
Standard Package Name	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Mounting	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package Height	2.34(Max)	2.34(Max)	2.34(Max)	2.34(Max)	2.34(Max)	2.34(Max)	2.34(Max)
Package Length	11.76(Max)	11.76(Max)	11.76(Max)	11.76(Max)	11.76(Max)	11.76(Max)	11.76(Max)
Package Width	7.6(Max)	7.6(Max)	7.6(Max)	7.6(Max)	7.6(Max)	7.6(Max)	7.6(Max)
PCB changed	18	18	18	18	18	18	18
Lead Shape	Gull-wing	Gull-wing	Gull-wing	Gull-wing	Gull-wing	Gull-wing	Gull-wing
HTS	8542.39.00.01	-	8542.39.00.01	8542.39.00.01	8542.39.00.01	8542.39.00.01	-
Packaging	-	-	Tube	Tape and Reel	Tube	Tape and Reel	Tape and Reel
